Elo ESY22i5 POS 22" AiO i5-9500TE 8GB 128GB Win 10 - E693211 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

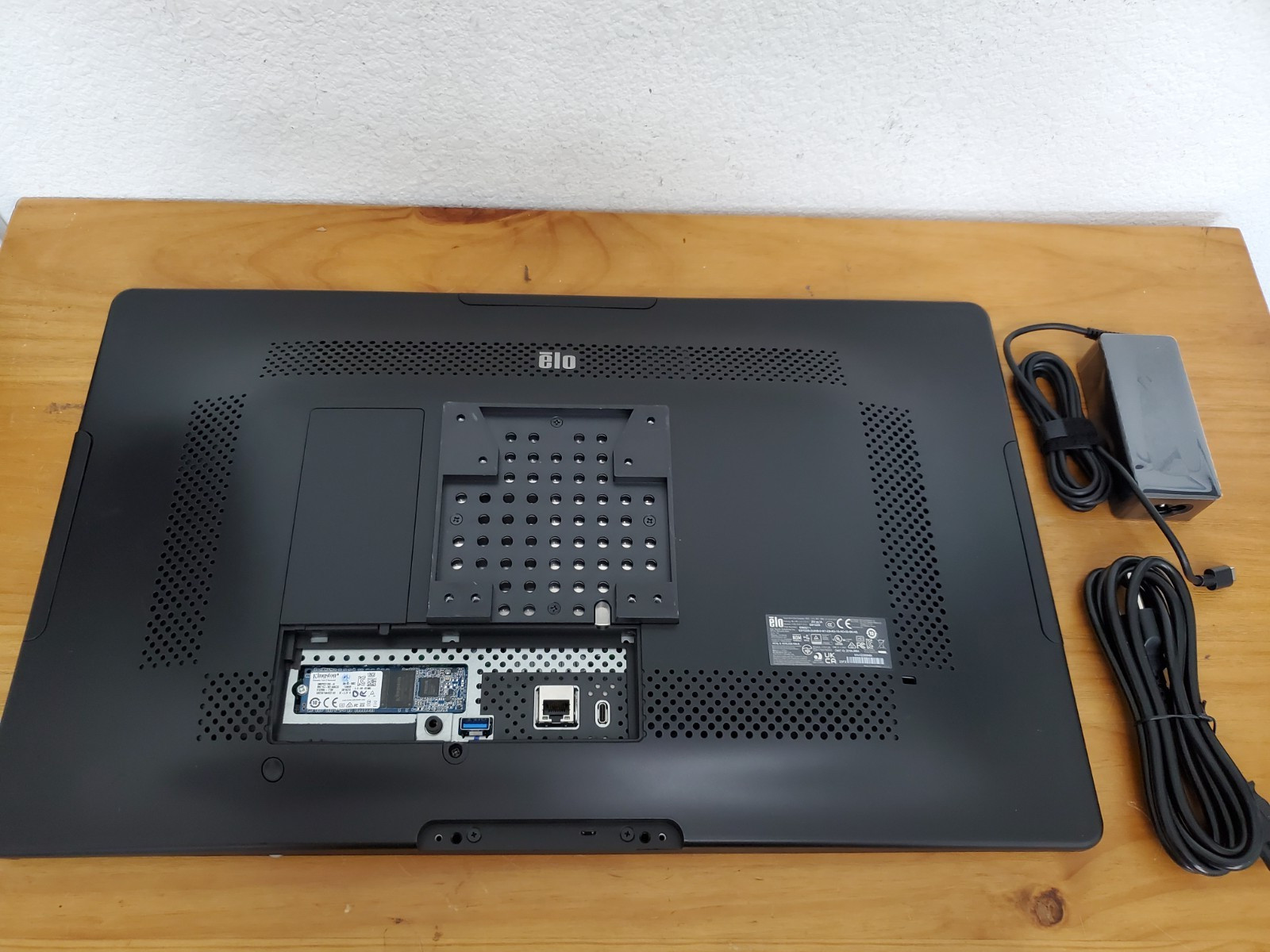

Elo ESY22i5 POS 22" AiO i5-9500TE 8GB 128GB Win 10 - E693211:
$470.00

Elo ESY22i5 22" POS AiO i5-9500TE 8GB 128GB Win10
MPN: E693211
Condition: Used / Factory Reset / Ready to Use !!!
Note: Includes a standard USB-C power charger (not the original OEM charger, but fully compatible and tested). Missing two covers(SSD Card & USB Port). The system is currently running Windows 10. Please note that we do not track or guarantee individual product keys. It is sold as-is regarding future Windows activations

Part Number(s)

i5, 128GB SSD, 8GB RAM - E693211

Enclosure Color

Black

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) - 10 Touch

Processor

i5: Intel Core i5-9500TE Processor (9M Smart Cache, up to 3.60 GHz by Intel Turbo Boost Technology 2.0) with Intel vPro™ Support

Chipset

i5: Intel Q370 Express

Graphics

i5: Intel UHD Graphics 630

BIOS

AMI

Memory (RAM)

i5: 8GB 2666MHz DDR4 SO-DIMM on 1 of 2 slots (Expandable to 32GB maximum on 2 slots)

NOTE: Maximum memory using 2 slots. Expandable up to 32GB maximum, SO-DIMM DDR4-2666. Check brand of the memory included in your unit before purchasing the memory kit.

Storage

128GB M.2 SATA SSD 72 TBW

GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less.

TPM

2.0

Active Management Technology (AMT)

i3 & i5: Active Management Technology (Intel AMT 11.0) Support

Diagonal Size

21.5'' diagonal, Active matrix TFT LCD (LED)

Aspect Ratio

16:9

Active Area

18.74" x 10.54" / 476.0 mm x 267.8 mm

Resolution

1920 x 1080 @ 60Hz

Number of Colors

16.7 million

Brightness (typical)

LCD panel: 250 nits
TouchPro PCAP: 225 nits

Response Time-total (typical)

14 msec

Contrast Ratio

1000:1

Viewing Angle

Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

USB Ports

1 x USB 3.0
4 x Micro USB 2.0 on edges for optional Elo Edge Connect peripherals

Ethernet Port

1 x LAN RJ45 (Gigabit)

Wireless

Wi-Fi 802.11 a/b/g/n/ac 2.4GHz and 5GHz

Bluetooth

Bluetooth 5.0

Audio Ports

1 x 3.5mm line out

Speakers

2 x 2W internal speakers

Power Supply

Maximum output power: 96W

Power Consumption (Typical)

i5: 83 W
Sleep: < 5W
Off: < 0.5W

Mounting Options

75mm or 100mm VESA mount

What's in the Box

I-Series 2.0 for Windows Touchcomputer
North America Power Cord
Power Adapter - 96W

---

---

---
