FNIRSI 1014D 7" LCD 2 Channel Signal Generator Digital Storage Oscilloscope H0V2 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

FNIRSI 1014D 7" LCD 2 Channel Signal Generator Digital Storage Oscilloscope H0V2:
$165.00

FNIRSI-1014D is a two-in-one oscilloscope and signal generator, the real-time sampling rate is 1GSa / s and with 100MHz* 2 ana-log bandwidth, with a 7inch TFT LCD display screen, the built-in high-voltage protection module can tolerate up to 400V continuous voltage, without worrying about the oscilloscope burning accident caused by the probe not moving to 10x gear, built-in DDS function signal generator and the industry's original chopping output (@ 2.5vpp), all signal frequency step is 1Hz, support 14 kinds of standard function signal and a customizable chopping signal, chopping The output device intercepts part or the whole part of the complex signals measured by the oscilloscope as the output signal of the signal generator, which can store up to 1000 customized cut-off signals. Come on and try it, it will not let you down.

Features:
Built-in DDS signal generator supports 12 kinds of function signal.
Capture output signal function, which can store up to 1000 capture signals.
Targeted highly intelligent decoding algorithm, the encoder life is infinite, and the intelligent anti-burn function, 1X Can withstand up to 400V voltage.
With 100MHz * 2 ana-log bandwidth and @ 1GSa/s sampling rate（1X = 5MHz, 10X = 100MHz).
Fully fit 7-inch 800 * 480 resolution color TFT LCD display with bright colors and high contrast.
High measurement voltage range: 1X can measure 0~40 V, 10X can measure 0~400V.
Up to 12 parameters measurement: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequent, Duty+, Duty-, Time+, Time-, Period.
Cursor measurement function: it is convenient to manually measure the period and frequency and voltage.
Complete the triggering function (single, normal, automatic), and at any time, the waveform display (pause function) is frozen.
Equipped with high efficiency One-button AUTO, and one-button waveform storage and screenshot function.
Built-in 1GB storage space, can store up to 1000 screenshots + 1000 sets of waveform data.
Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page-turning, deletion and waveform zooming in, zooming out, moving, etc.
Equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer, which is convenient for secondary analysis.
Lissajous figure's graphic display function can be used to determine the amplitude, frequency, and phase contrast of two groups of signals.
The FFT display function can analyze the spectral characteristics of the signal, memory technology, and the waveform refresh screen, which does not flicker.
With the screen brightness adjustment function and background gr-id brightness adjustment function, it is also easy to carry.

Specifications:
Material: ABS
Analog bandwidth: 100MHz
Number of channels: 2 channels
Maximum real-time sampling rate: 1GSa/s
Vertical sensitivity: 50 mV/div ~ 500 V/div
Horizontal time base range: 50S/div ~ 10nS/div
Maximum test voltage: 40 V (1X probe), 400 V (10X probe)
Storage depth: 240Kbit
Input resistance: 1MΩ
ADC precision: 8bits
Coupling mode: AC/Direct Current
Trigger mode: Single, Normal, Auto
Trigger edge: Rising edge/Falling edge
External trigger voltage 0~40 V
Extension ports: USB picture export
Package size: 340 * 140 * 70mm / 13.4 * 5.5 * 2.8in
Package weight: 1949g / 4.3lb

Packing list:

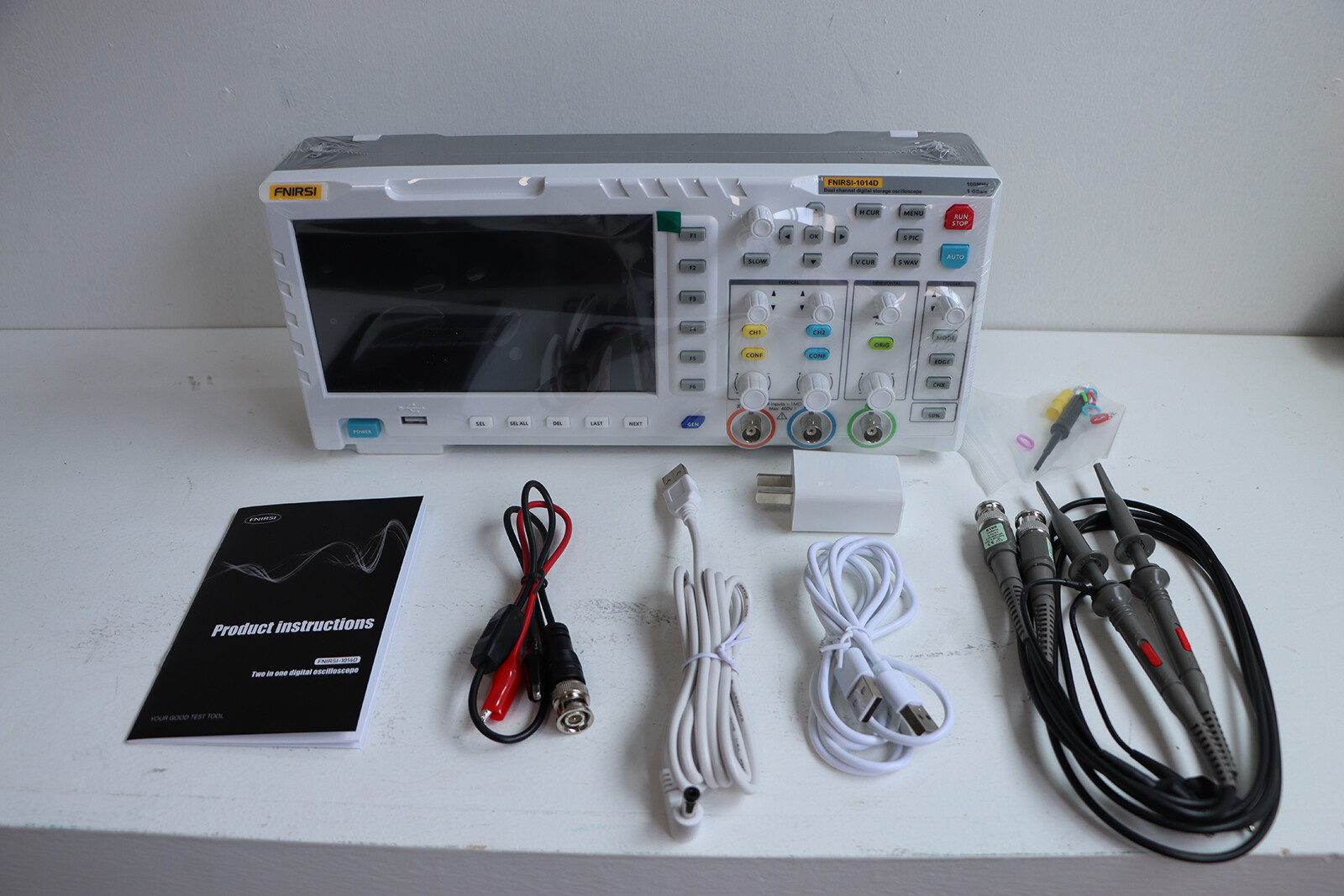

1 * FNIRSI-1014D Oscilloscope Host
2 * Matching 100MHz Probe (1X and 10X）
1 *Clip
1 * USB Data Line
1 * English User Manual
