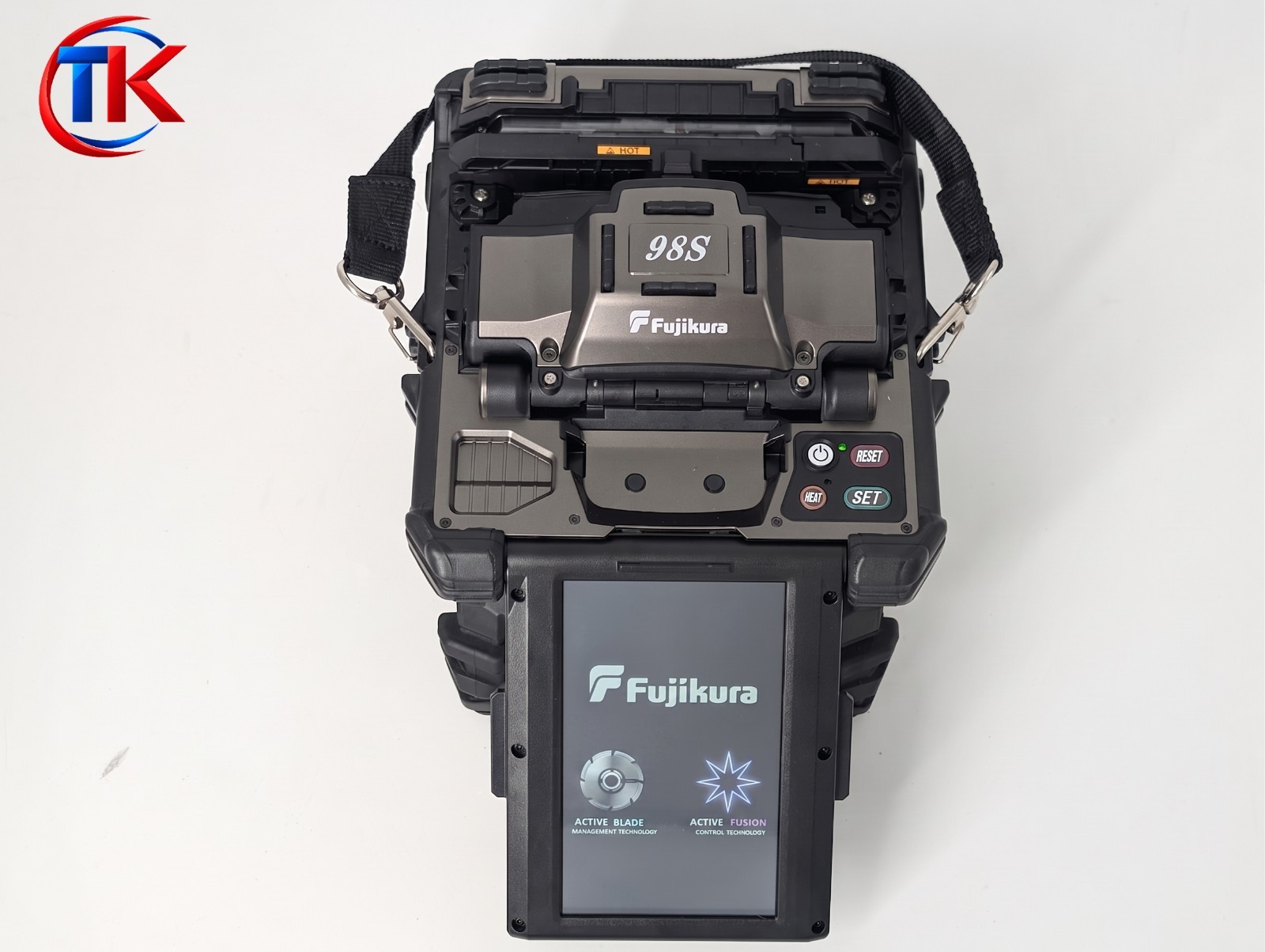

Fujikura 98S Core Alignment Fusion Splicer with CT-60 Cleaver Complete Kit:
$5600.00

Fujikura 98S Core Alignment Fusion Splicer with CT-80 Cleaver Complete KitDescriptionFujikura 98S Single Fibre Core Alignment Fusion Splicer, professional and reliable. Includes Fujikura CT 60 Fibre Cleaver for accurate fibre preparation. Complete kit, ideal for FTTH, telecoms and professional fibre optic installation.Brand new and supplied with accessories and protective carrying case.Fujikura 98S+

Brand new zero splice
Made in Japan

Exactly as in the pictures
1 year warranty

Package includes with model no: ItemSpecificationFiber Alignment MethodActive Core AlignmentFiber Count Can Be SplicedSingle FiberApplicable FiberSingle Mode Optical Fiber / Multi Mode Optical FiberFiber TypeSingle Mode / Multi ModeApplicable Coating80–150 μmCladding Diameter80–150 μmSheath ClampCoating Diameter: Max. 3,000 μmFiber HolderCleave Length: 5–16 mm*¹Fiber Holder / OptionCoating Diameter: Refer to options; Cleave Length: Approx. 10 mmSplice Loss – ITU-T G.652Average 0.02 dBSplice Loss – ITU-T G.651Average 0.01 dBSplice Loss – ITU-T G.653Average 0.04 dBSplice Loss – ITU-T G.654Average 0.04 dBSplice Loss – ITU-T G.655Average 0.04 dBSplice Loss – ITU-T G.657Average 0.02 dBSM FAST Mode Splice TimeAverage 7 secondsProtection Sleeve TypeHeat Shrinkable SleeveSleeve LengthMaximum 66 mmSleeve Die / DiameterMaximum 6.0 mm before shrinking60 mm Slim Mode Heat TimeAverage 5–10 seconds60 mm Mode Heat TimeAverage 8–15 secondsFiber Tensile Test ForceApprox. 2.0 NElectrode LifeApprox. 6,000 splicesDimensions (W × D × H)157 × 178 × 171 mmWeightApprox. 2.7 kg including batteryOperating Temperature-10°C to 50°CStorage Temperature-40°C to 80°COperating Humidity0–95% RH, non-condensingStorage Humidity0–95% RH, non-condensingMaximum Altitude5,000 mDisplay4.95-inch TFT LCD TouchscreenMagnificationApprox. 320×PC InterfaceMini DIN 6-pinDC InputDC 12 V, Max. 1 ABluetoothBluetooth 5.2 LEExternal LED LampSupportedRibbon StripperSupportedWirelessSupportedLED LampSupportedUSB InterfaceUSB 2.0 Type-CUSB Type-C PowerUSB PD availableUSB Type-C CommunicationUSB 3.0 unavailable; USB 2.0 communicationUSB Type-C PDPower receiving function onlyUSB Type-AUSB 2.0 Type-A, approx. DC 5 V / 500 mASplice Mode Storage100 splice modesHeat Mode Storage30 heat modesSplice Result Storage20,000 splice resultsSplice Image Storage100 imagesAC Adapter InputAC 100–240 V, 50/60 Hz, Max. 1.5 AAC Adapter OutputApprox. DC 12 V, Max. 5 AExternal Battery InputDC 10–15 V, Max. 7 ABattery TypeRechargeable Lithium-IonBattery OutputApprox. DC 14.4 VBattery Capacity6,380 mAhBattery Capacity in UseApprox. 300 splice and heat cyclesBattery Recharge Time4–6 hours from emptyBattery LifeApprox. 500 recharge cyclesAutomatic Cleaver FunctionFully Automatic Cleaver Blade ManagementWind ProtectorAutomatic Open and CloseSheath ClampAutomatic OpenHeater LidAutomatic Open and CloseSpecial SpliceAttenuation SpliceElectrodesReplaceable without toolsSoftware UpdateSplice firmware update via internetModelFujikura 98SSplicer TypeSingle Fibre Core Alignment Fusion SplicerIncluded CleaverFujikura CT-60Kit TypeComplete Kit

High Precision Splicing: The Fujikura 98S features Active Core Alignment technology, providing highly accurate fibre alignment and reliable splicing performance. It supports both single mode and multi mode optical fibres and delivers low average splice loss across a range of ITU-T fibre types.
Fast Splicing Time: The 98S offers an SM FAST mode with an average splice time of approximately 7 seconds, helping to improve efficiency and reduce installation time. Its heat modes also provide fast and consistent protection sleeve heating.
User-Friendly Interface: The Fujikura 98S features a 4.95-inch TFT LCD touchscreen with approximately 320× magnification, providing clear fibre images and convenient operation. Its intuitive interface makes the splicing process straightforward and efficient.
Automated Functions: The 98S includes automatic functions such as automatic cleaver blade management, automatic opening and closing of the wind protector, automatic sheath clamp operation and automatic heater lid operation, helping to simplify the splicing process.
Versatility: The Fujikura 98S is compatible with single mode and multi mode optical fibres and supports various fibre types including ITU-T G.652, G.651, G.653, G.654, G.655 and G.657. It also supports special attenuation splicing.
Portable and Durable: With dimensions of 157 × 178 × 171 mm and a weight of approximately 2.7 kg including the battery, the 98S is designed for convenient transportation and field use. The rechargeable lithium-ion battery provides approximately 300 splice and heat cycles.
Advanced Connectivity and Storage: The 98S supports Bluetooth 5.2 LE, USB Type-C and USB Type-A connectivity. It can store up to 100 splice modes, 30 heat modes, 20,000 splice results and 100 splice images.
In summary, the Fujikura 98S Single Fibre Core Alignment Fusion Splicer combines precision, speed, automation and versatility, making it a professional solution for fibre optic installation, FTTH, telecommunications and network maintenance.Machine Version:South Asia or Middle East depend on Stock. The fusion splicer's menu english and can be used globally without restrictions
