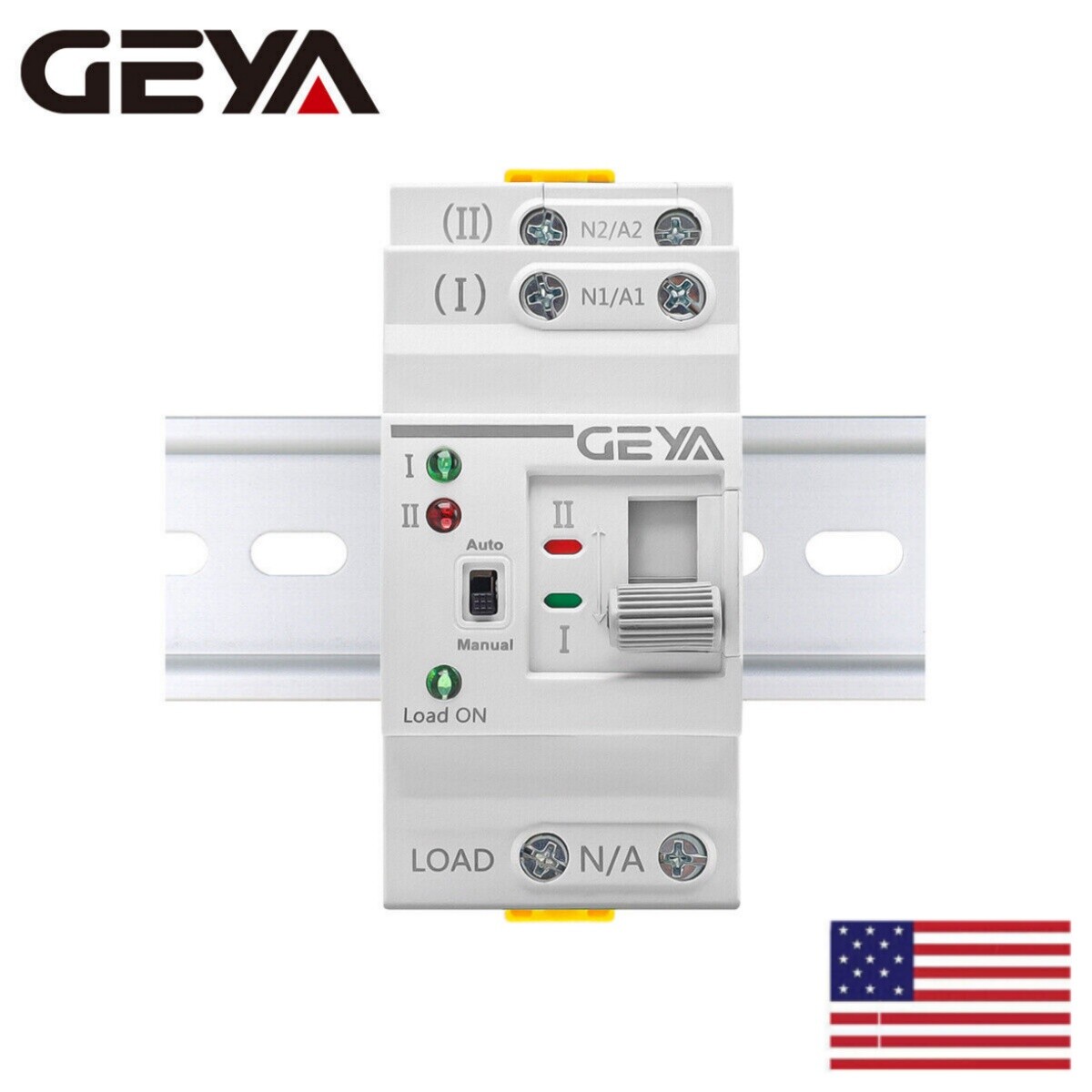

GEYA Dual Power Automatic Transfer Switch( Grid - AC Generator)

Product Description

This item is for voltage system is 110/220V,If your voltage system is 220/400V.Please click here.

This link is for US & PR,If you from other country,Or you need other current or Pole,Please click here.

Working powerneed be more than 3KW.

General

Series dual power automatic transfer switches are newly developed muniature househould power transfer switches.This switch is mainly used to test whether the normal or standby power supply is normal.When the narmal power supply is abnormal,the backup power supply will work immediately to ensure the continuity,reliability and safety of the power supply.This product is specially designed for home track TV installation and is specially used for Pz 30 distribution box.

Application

Residence,and in various occasions where continuous power failure is not allowed.

Function

Auto mode:Common power supply must be City Grid Power. Backup power must be AC genarator.When there is only one power supply is working, the product will automatically switch to that power supply. When the common power supply and the backup power supply are supplied at the same time, the common power supply is used Preferentially.
(Attention: in automatic mode, forcibly rotating the power switch handle will cause damage to the transfer switch)

Manual mode: Power supply should be transfered manually by rotating the handle.

Technical Parameters Rated operating current 63A Rated operating voltage 400V/AC Insulation voltage 690V/AC Anti-shock voltage 8000V Grade Type PC Grade Isolation Type Frequency 50/60HZ Standard IEC60947-6 rated short-circuit current limit (RT16-00/63A) Control voltage 110V/AC

Packing List

1 PCS automatic transfer switchand 1PCS Rail and manual book

Q&A
1. Common power supply must be City Grid Power. Backup power must be AC genarator OR City Grid Power!
2. In auto mode, signal terminal AR&AN and BR&BN must be wired to common power supply and backup supply. Or product can not work!

3. Suggestingadd over&under voltage protector to circuit protect productfrom being burnt due to under-voltage or over-voltage.
