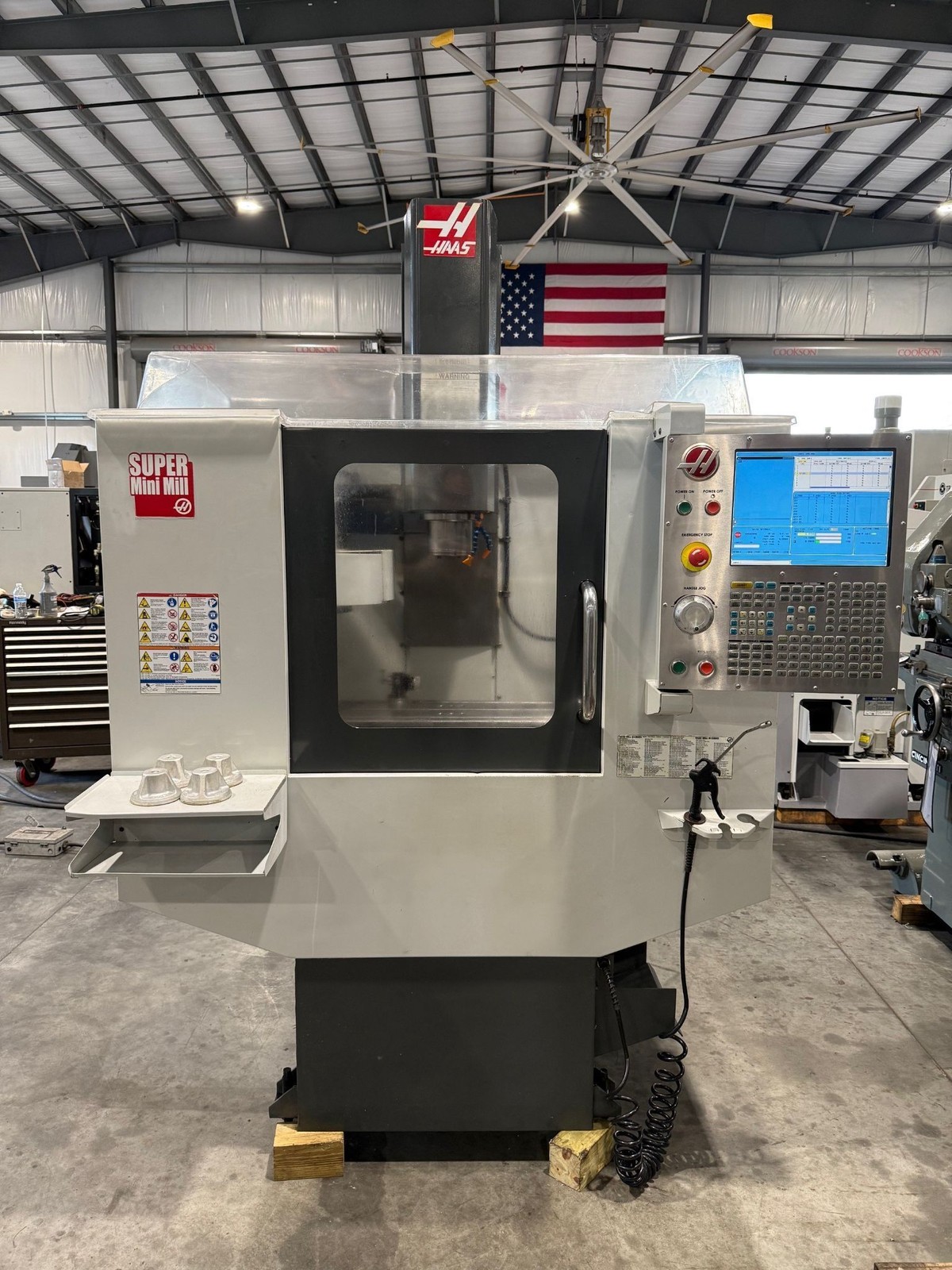

HAAS SUPER MINI MILL CNC Vertical Machining Center 2012’ #8071:
$34500.00

HAAS SUPER MINI MILL CNC Vertical Machining Center 2012’ #8071 HAAS SUPER MINI MILL CNC Vertical Machining Center 2012’ #8071 Overview:

Type:

Vertical Machining Centers

Brand:

HAAS

Model:

SUPER MINI MILL

Year:

2012

Stock #:

8071

specifications:

X axis

16"

Y axis

12"

Z axis

10"

Power

15 hp

RPM

10,000 RPM

# ATC

Taper

CT or BT 40

Table-W

12"

Table-L

36"

Weight

4200 Lbs.

Dimensions

90” x 64” x 100” H

Spec Sheet:

HAAS SUPER MINI MILL CNC Vertical Machining Center 2012’ #8071Reference # 8071Model # Super Mini Mill Serial # 1096717Year of manufacture- 7/2012’ Table size- 36” x 12” Number of T slots- (3) Maximum table weight- 500 Lbs. Maximum spindle speed- 10,000 R.P.M. Spindle taper- CAT-40 X axis travel- 16” Y axis travel- 12” Z axis travel- 10” Minimum / Maximum spindle nose to table- 4” / 14” X,Y,Z Rapids- 1200 I.P.M. Tool changer capacity- 10 Tool to tool time- 2.8 seconds

equipped with:

HAAS CNC Control , USB PortControls options- Rigid tapping, Enable Rotation & Scaling, DNC, M19 spindle orient, Quick code, Pre-Orient Tap, wired for 4th axis, Advanced tool management, Intuitive progressive system Reinshaw probing and table probe (less tool probe)(4) Leveling feet Air blow off gun Coolant tank & pump Machine hours- Unknown, Battery died and system had to reloaded and lost original hours Machine is wired for 230 volt / 3 phase / 60 H.Z. Machine weight- 4200 Lbs. Machine dimensions- 90” x 64” x 100” H Machine location- F.O.B. Sarasota, Florida
