HAAS #VM-3 CNC Vertical Machining Center 2006’ HSM 12K USA #8558 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

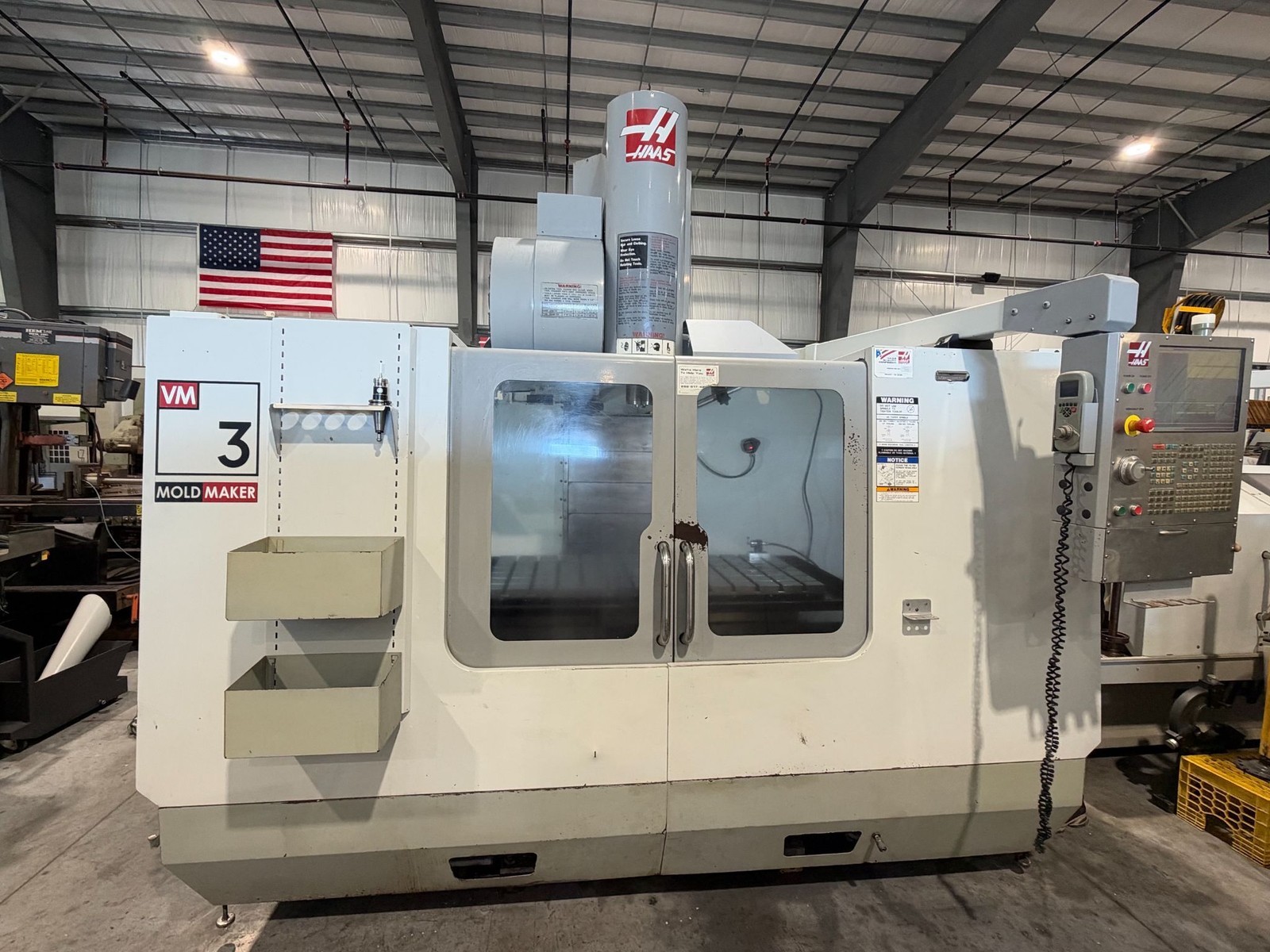

HAAS #VM-3 CNC Vertical Machining Center 2006’ HSM 12K USA #8558:
$34500.00

HAAS #VM-3 CNC Vertical Machining Center 2006’ HSM 12K USA #8558 HAAS #VM-3 CNC Vertical Machining Center 2006’ HSM 12K USA #8558 Overview:

Type:

Vertical Machining Centers

Brand:

HAAS

Model:

VM-3

Year:

2006

Stock #:

8558

specifications:

X axis

40\"

Y axis

26\"

Z axis

25\"

Power

30 hp

RPM

12,000 RPM

# ATC

Taper

CT or BT 40

Table-W

25\"

Table-L

54\"

# Axis

Weight

8000 Lbs.

Dimensions

111’’ L x 91’’ W x 91’’ H

Spec Sheet:

HAAS #VM-3 CNC Vertical Machining Center 2006’ HSM 12K USA #8558Reference # 8558Model # VM-3Serial # 1053095Year of manufacture- 10/2006’ Table size- 24” x 54” Number of T-slots- (3) Max table weight- 4000 Lbs. Travels- X axis- 40” Y axis- 26”Z axis- 25” Maximum distance from spindle nose to table- 29.2”Minimum distance from spindle nose to table- 4.2” Maximum spindle speeds- 12,000 R.P.M. Spindle taper- CAT-40 Max cutting rate- 500 I.P.M. X,Y,Z Rapids- 710 I.P.M. Side mount tool changer- 24 +1 Tool capacity Max tool diameter- 3” Max tool length- 11” Max tool weight - 12 Lbs.

equipped with:

HAAS CNC Control with USB Control options- Rigid tapping, DNC, Rotation & Scaling, Quick code, Macros, M19 spindle orient, Quick code, Advanced Tool Management, High Speed MachiningMachine hours- Power on time- 59,057, Motion time- 5,839, Spindle time- 6,074 MPG Manual Pulse Generator RENISHAW Wireless probing option includes table probe and tool holder probe Side mount tool changer 24 tool station Telescopic way coversAir gun(4) Leveling padsChip Auger BIJUR automatic lubrication systemExternal coolant tank & Coolant pump Machine is wired for 230 Volt / 3 phase / 60 HZ Machine weight- 8000 Lbs. Machine dimensions- 111’’ L x 91’’ W x 91’’ HMachine location- F.O.B. Sarasota, Florida
