Haas ST-20 CNC Turning Center - 8\" Chuck, Tailstock Lathe For Sale

$Haas ST-20 CNC Turning Center - 8\$
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

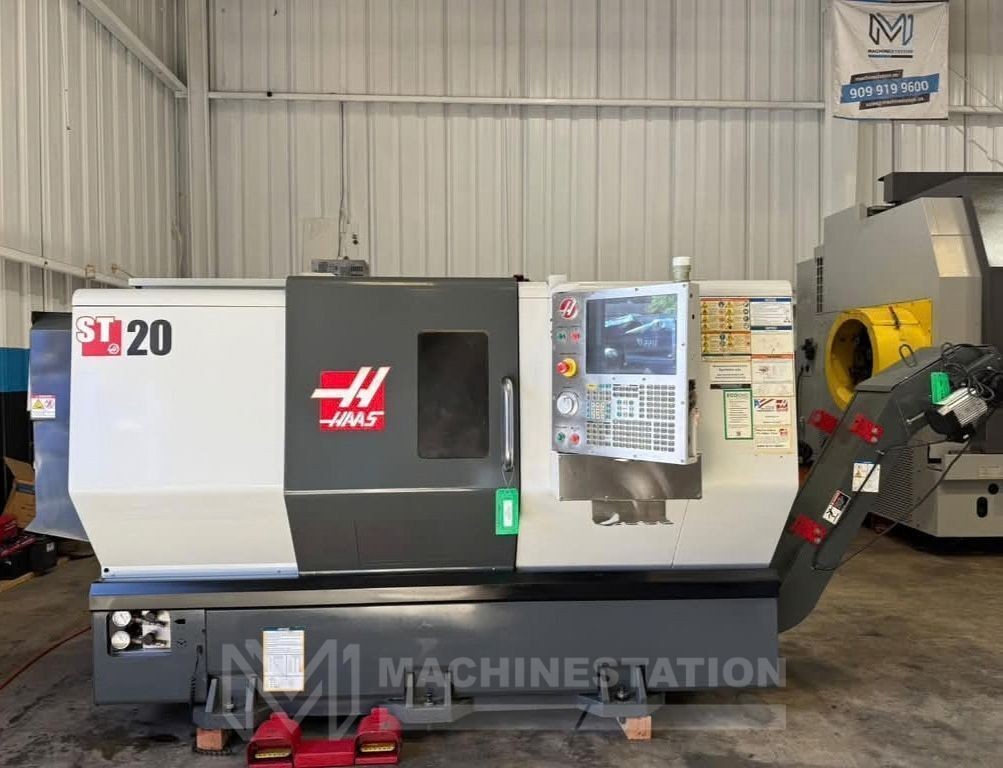

Haas ST-20 CNC Turning Center - 8\" Chuck, Tailstock Lathe:
$36900.00

Haas ST-20 CNC Turning Center - 8\" Chuck, Tailstock Lathe Overview:

Type:

Lathes, CNC

Brand:

HAAS

Model:

ST-20

Year:

2011

Stock #:

113682

specifications:

Swing

21\"

Machining Length

22.5\"

# Axis

Chuck Size

8\"

Bar Capacity

2\"

Power

20 hp

Max RPM

4,000 RPM

Turning Dia

13\"

Tailstock

Yes

Live Tooling

Sub Spindle

Weight

8820 lbs Approx.

Dimensions

142.5 inch x 90 inch x 92 inch High

Spec Sheet:

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.Equipment is sold AS-IS, WHERE-IS. All sales are final.Features:Haas CNC ControlA2-6 Spindle NoseRigid TappingCoolant TankAutomatic Lubrication UnitCapacity:Max Turning Diameter : 13.0 inchMax Swing Over Bed : 21.0 inchMax Turning Length: 22.5 inchMax Bar Capacity : 2.00 inchTravels:X Axis Travel : 8.4 inchZ Axis Travel : 22.5 inchFeedrate:Rapid Traverse X Axis: 945 IPMRapid Traverse Z Axis: 945 IPMSpindle:Spindle Nose: A2-6Spindle Bore: 2.5 inchSpindle Speed: 4000 RPMSpindle Motor: 20 HPTurret:Turret Capacity: 12 StationsTurret Index Time: 1 SecondTurret Type: Bolt On Tool TurretTailstock:Tailstock Type: ProgrammableTailstock Taper: MT-4General:Air Requirement: 4 scfm @ 100 psiPower Source: AC 195v - 260v / 3-Phase / 50/60 HzMachine Dimensions: 142.5 inch x 90 inch x 92 inch HighMachine Weight: 8820 lbs Approx.

equipped with:

8” 3-Jaw Hydraulic Chuck12 Station Automatic TurretProgrammable Tailstock (Upgraded $8,695 value Included) – Excellent For Longer PartsBelt Type Chip Conveyor (Upgraded $6,195 value Included) – For Efficient Chip Removal
