Haas ST-30 CNC Turning Center - 12" Chuck Lathe For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

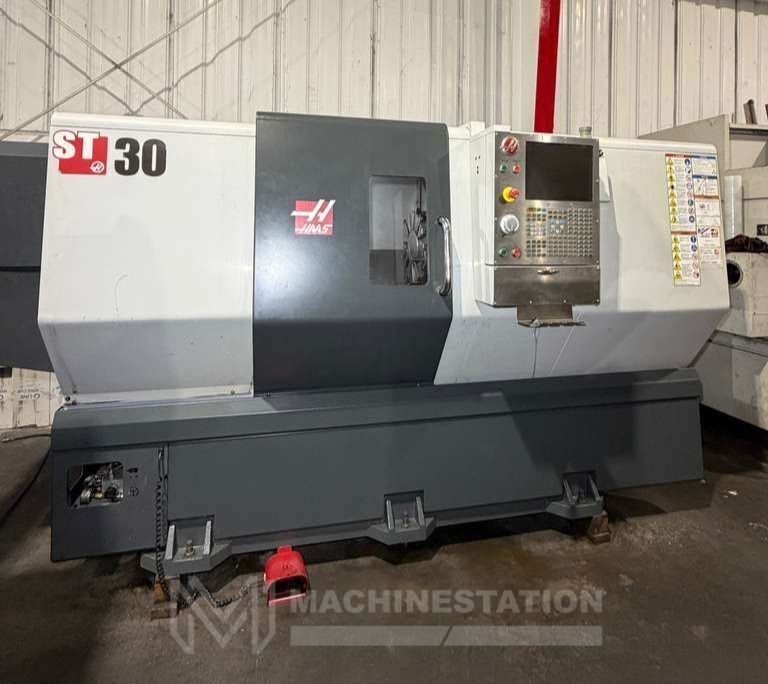

Haas ST-30 CNC Turning Center - 12" Chuck Lathe:
$34200.00

Haas ST-30 CNC Turning Center - 12" Chuck Lathe Overview:

Type:

Lathes, CNC

Brand:

HAAS

Model:

ST-30

Year:

2010

Stock #:

113553

specifications:

Swing

21"

Machining Length

32.5"

# Axis

Chuck Size

12"

Bar Capacity

Power

30 hp

Max RPM

3,400 RPM

Turning Dia

15"

Tailstock

Live Tooling

Sub Spindle

Weight

10900 lbs

Dimensions

170″ x 90″ x 98″ High Approx.

Spec Sheet:

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.Equipment is sold AS-IS, WHERE-IS. All sales are final.Features:Haas CNC ControlRigid TappingCoolant TankCapacity:Max Turning Diameter : 15.0″Max Swing Over Bed : 21.0″Max Turning Length: 32.5″Max Bar Capacity : 3.0″Travels:X Axis Travel : 9.4″Z Axis Travel : 32.5″Feedrate:Rapid Traverse X Axis: 945 IPMRapid Traverse Z Axis: 945 IPMSpindle:Spindle Nose: A2-6Spindle Bore: 3.5″Spindle Speed: 3400 RPMSpindle Motor: 30 HPTurret:Turret Capacity: 12 StationsTurret Type: Bolt-On Tool TurretGeneral:Air Required: 100 psi 4 scfmPower Source: AC 220v / 3-Phase / 60 HzMachine Dimensions: 170″ x 90″ x 98″ High Approx.Machine Weight: 10,900 lbs Approx.

equipped with:

12″ 3-Jaw Samchully SH-12 Chuck12 Station Automatic TurretA2-6 Spindle, 3400 RPM Spindle3.5″ Spindle BoreBelt Type Chip ConveyorFoot SwitchLeveling Pads(2) Boring Tool Holders Are Mounted on the Turret (As Shown in the images)
