Harris HP743 ultra high-purity stainless steel barstock regulator 743015000C For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Harris HP743 ultra high-purity stainless steel barstock regulator 743015000C:
$299.97

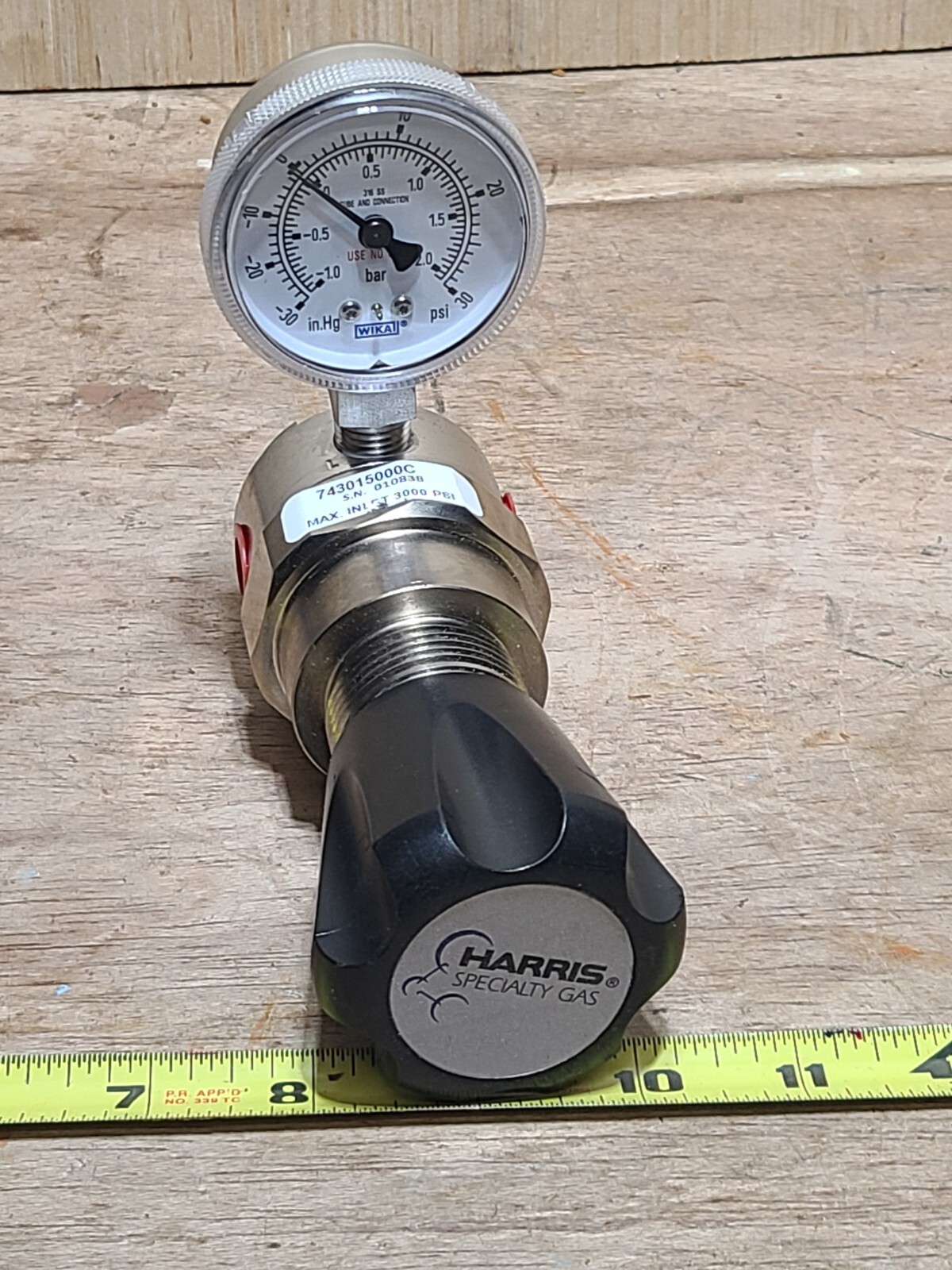

This is for one of a new Harris HP743 ultra high-purity stainless steel barstock regulator 743015000C.These are made of Stainless steel, line regulator, 0-15 PSI range, 1/4" NPT ports with 2" Stainless steel dual scale (psi/bar) Gauge. DETAILS

Model HP743 is a single-stage stainless steel pipeline regulator for pipeline and other applications up to 3000 PSIG inlet pressure. The Model HP743 regulator is suitable for corrosive gas applications, high-purity gas applications, research sample systems gases, process analyzer gases, gas chromatography, EPA protocol gases, laser gas systems and emission 316L stainless steel diaphragm eliminates contamination from diffusion or outgassing

One-piece encapsulated seat design with 10 micron sintered internal filter to protect the PTFE Teflon® seat from particulate contamination

Stainless steel body and fittings and chrome-plated brass bonnet

2” stainless steel dual scale gauge (psi/bar)

Designed to 1 x 10-9 cc/sec inboard helium leak rate to maintain gas purity levels

Maximum inlet 3000 PSIG

Front or back panel mountable

Conforms to CGA E-4 standard for gas pressure regulators

Please note this is for only one NOT all as seen in last few pictures.Some may have some small scuff's/scratches,ding's/dent's (see pictures).Thanks for looking!
