Heidenhain ROD 426 2500 Rotary Encoder ID No. 376 846-02 - NOS For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

Heidenhain ROD 426 2500 Rotary Encoder ID No. 376 846-02 - NOS:
$291.25

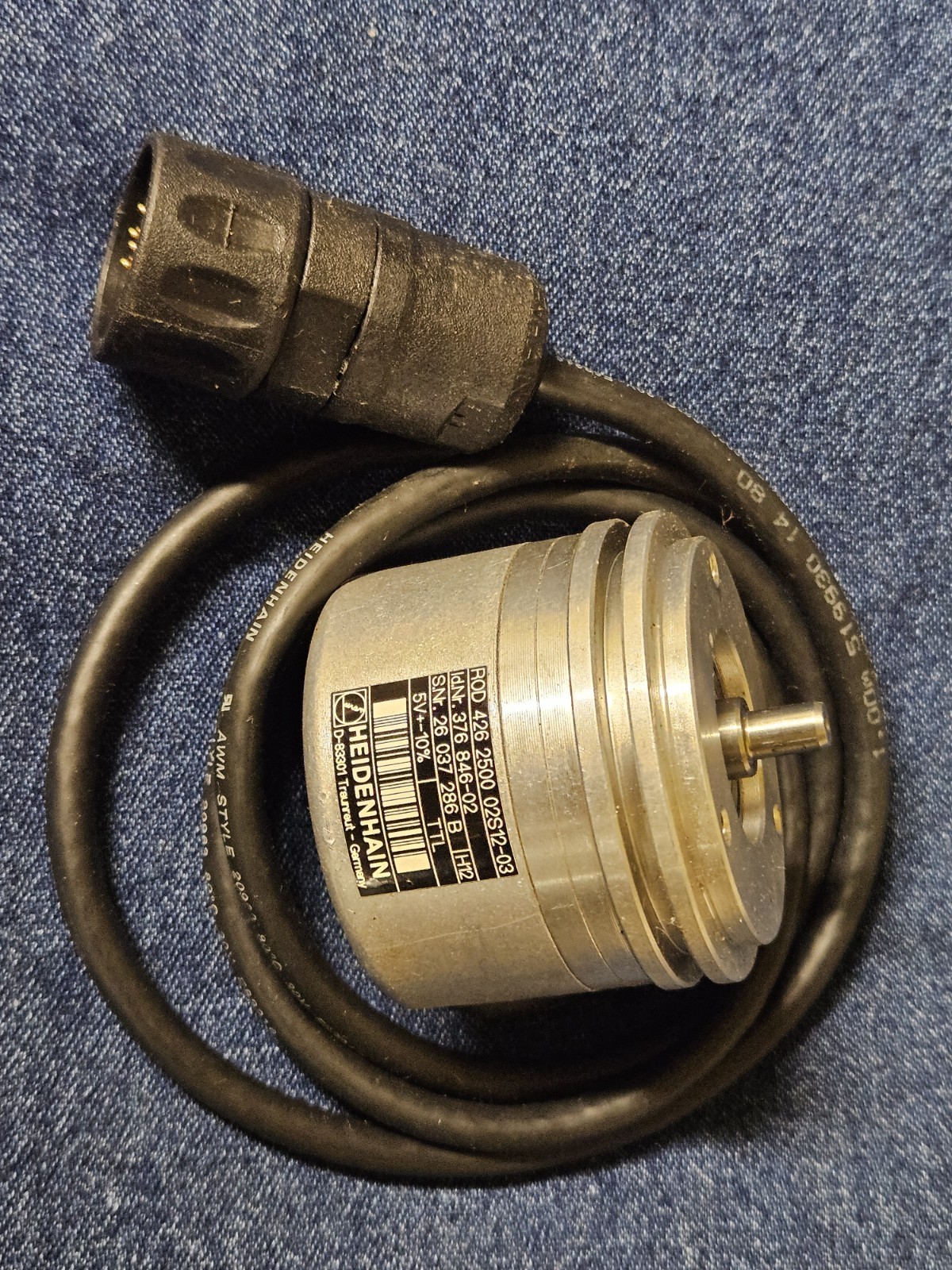

Heidenhain ROD 426 2500 Rotary Encoder Id.Nr. 376 846-02 - NOS No Box from stock
​
​Rotary encoder unit with attached Heidenhain cable (AWM STYLE 20963).
​The cable terminates in a circular multi-pin connector with gold-plated pins.
​
​Cosmetically, the unit is in excellent condition. The metal housing, mounting face, and shaft show no signs of previous installation or wear. The connector pins are straight and pristine.

---

---

---

Heidenhain ROD 476 Rotary Encoder - 5000 19B14-20, ID 298 472-01. Nice

$39.99

---

Heidenhain ROD 426 2500 Rotary Encoder ID No. 376 846-02 - NOS

$291.25

---

Heidenhain ROD431.035-1024 ID1169566-02 encoder Brand New

$776.58

---
