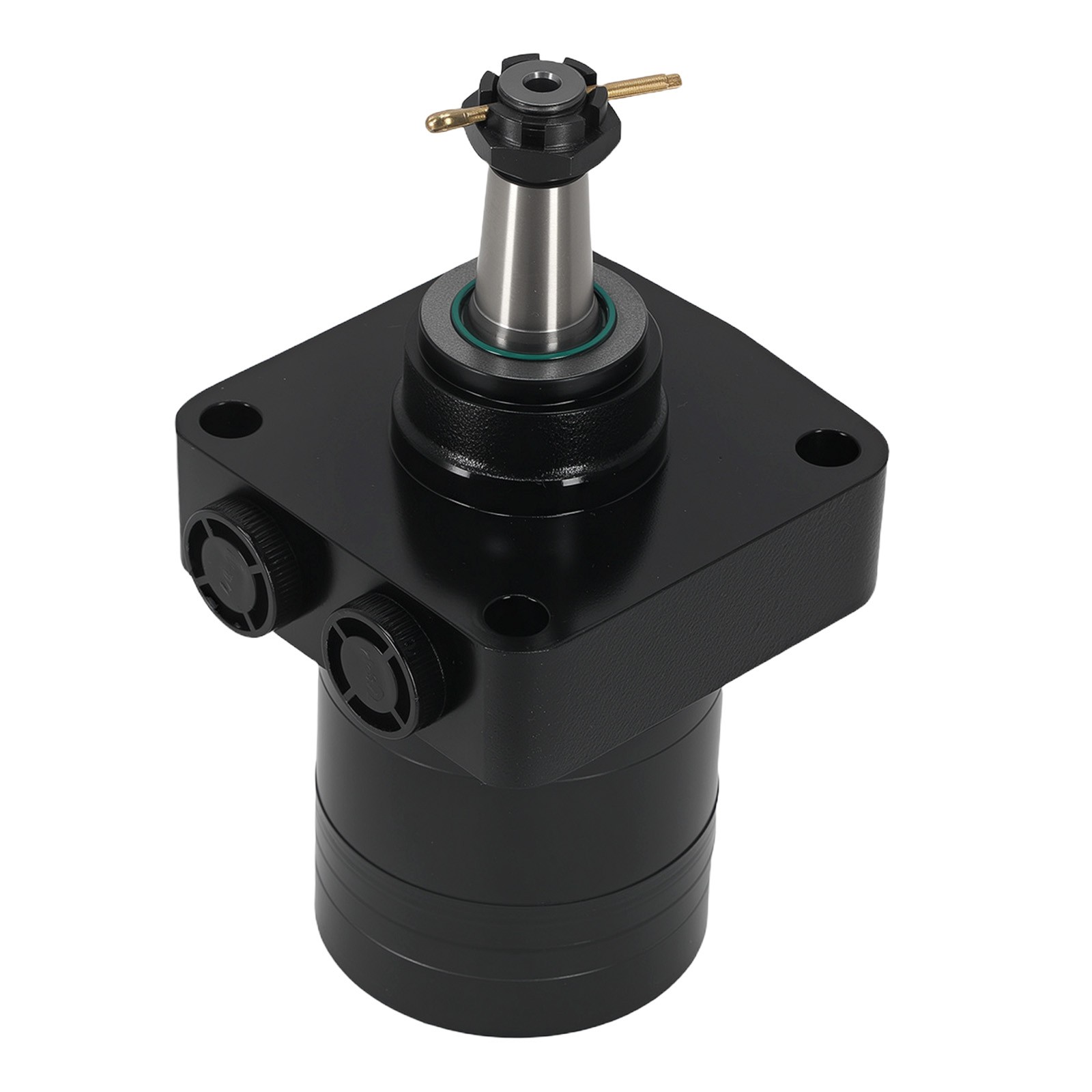

Hydraulic Wheel Motor For TORO GRANDSTAND TE0195JS250AAMU,114-0549

Application：
For EXMARK VANTAGE (SERIAL NUMBERS 850, 000-919, 999)
For EXMARK VANTAGE 52" (SERIAL NUMBERS 850, 000-919, 999)
For EXMARK VT20KAS524
For TORO GRANDSTAND 122CM TURBO FORCE (SERIAL NUMBERS0199) 74567TE
For TORO GRANDSTAND 122CM TURBO FORCE (SERIAL NUMBERS0199) 74568TE
For TORO GRANDSTAND 48" TURBO FORCE (SERIAL NUMBERS0100) 74578
For TORO GRANDSTAND 48" TURBO FORCE (SERIAL NUMBERS0100) 79548
For TORO GRANDSTAND 48" TURBO FORCE (SERIAL NUMBERS0100) 79558
For TORO GRANDSTAND 48" TURBO FORCE (SERIAL NUMBERS0105) 74568
For TORO GRANDSTAND 48" TURBO FORCE (SERIAL NUMBERS0109) 74558
For TORO GRANDSTAND 48" TURBO FORCE (SERIAL NUMBERS0199) 74538
For TORO GRANDSTAND 48" TURBO FORCE (SERIAL NUMBERS0199) 74548
For TORO GRANDSTAND 48" TURBO FORCE (SERIAL NUMBERS0199) 74558
For TORO GRANDSTAND 48" TURBO FORCE (SERIAL NUMBERS0199) 74568
For TORO GRANDSTAND 48" TURBO FORCE (SERIAL NUMBERS0199) 74578
For TORO GRANDSTAND 48" TURBO FORCE (SERIAL NUMBERS0199) 79548
For TORO GRANDSTAND 48" TURBO FORCE (SERIAL NUMBERS0199) 79558
For TORO GRANDSTAND 48" TURBO FORCE (SERIAL NUMBERS0600) 74568
For TORO GRANDSTAND 48" TURBO FORCE (SERIAL NUMBERS1000) 74558
For TORO GRANDSTAND 52" TURBO FORCE (SERIAL NUMBERS0100) 74549
For TORO GRANDSTAND 52" TURBO FORCE (SERIAL NUMBERS0100) 74589
For TORO GRANDSTAND 52" TURBO FORCE (SERIAL NUMBERS0100) 79589
For TORO GRANDSTAND 52" TURBO FORCE (SERIAL NUMBERS0106) 74569
For TORO GRANDSTAND 52" TURBO FORCE (SERIAL NUMBERS0156) 74559
For TORO GRANDSTAND 52" TURBO FORCE (SERIAL NUMBERS0199) 74539
For TORO GRANDSTAND 52" TURBO FORCE (SERIAL NUMBERS0199) 74549
For TORO GRANDSTAND 52" TURBO FORCE (SERIAL NUMBERS0199) 74559
For TORO GRANDSTAND 52" TURBO FORCE (SERIAL NUMBERS0199) 74569
For TORO GRANDSTAND 52" TURBO FORCE (SERIAL NUMBERS0199) 74589
For TORO GRANDSTAND 52" TURBO FORCE (SERIAL NUMBERS0199) 79549
For TORO GRANDSTAND 52" TURBO FORCE (SERIAL NUMBERS0199) 79559
For TORO GRANDSTAND 52" TURBO FORCE (SERIAL NUMBERS0199) 79589
For TORO GRANDSTAND 52" TURBO FORCE (SERIAL NUMBERS5700) 74559
For TORO GRANDSTAND 52" TURBO FORCE (SERIAL NUMBERS0700) 74569
For TORO GRANDSTAND 60" TURBO FORCE (SERIAL NUMBERS0100) 74553
For TORO GRANDSTAND 60" TURBO FORCE (SERIAL NUMBERS0100) 74583
For TORO GRANDSTAND 60" TURBO FORCE (SERIAL NUMBERS0199) 74550
For TORO GRANDSTAND 60" TURBO FORCE (SERIAL NUMBERS0199) 74551
For TORO GRANDSTAND 60" TURBO FORCE (SERIAL NUMBERS0199) 74553
For TORO GRANDSTAND 60" TURBO FORCE (SERIAL NUMBERS0199) 74583
For TORO GRANDSTAND 60" TURBO FORCE (SERIAL NUMBERS0199) 79551
For TORO GRANDSTAND 60" TURBO FORCE (SERIAL NUMBERS0199) 79553

OE/Part number：
Type：Hydraulic Wheel Motor
Condition: 100% brand new
Material: Iron
Part Name: Wheel Motor
Fitment Type: Direct Replacement

Features:

1.Utilizes Hansheng high-pressure seals with three-layer sealing rings to prevent oil leakage.
2.Employ powder metallurgy valve discs featuring high wear resistance and precision.
3.Processed using imported machining centers with precision machining, ensuring a flatness error of no more than 2 microns.
4.Uses a low-carbon alloy steel output shaft treated with carbonitriding (carbon-nitrogen co-penetration) and cyaniding processes for extended lifespan.
5.Adopts Simonox S-type triple bearings with strong radial load capacity and high-pressure resistance.

Package included：
1 x Wheel Motor
(Showing as the instruction included.
2.Professional Installation Is Highly Recommended.
3.Operates within a normal oil temperature range of 20°C to 60°C, with a maximum system temperature of 90°C (which must not exceed one hour).
4.The filter precision is 10–30 microns. It is strongly recommended to install magnetic drain plugs at the bottom of the oil tank to prevent metallic debris from entering the system. The solid particle contamination level of the hydraulic oil must not exceed 19/16 (ISO 4406 standard).
5.At an oil temperature of 40°C, the working viscosity ranges from 42 to 74 mm²/s. Hydraulic oil selection should be based on operational and environmental temperature requirements. ISO VG 46 or 32 hydraulic oils are recommended.
6.When used in series or parallel configurations with a back pressure exceeding 10 MPa (at rotational speeds below 200 RPM), the external drain port must be directly connected to the oil tank.
