IFM OB5024 OBF-FPKG/T/AS Fiber Optic Amplifier PNP 10-36VDC M8 Germany:
$129.99
IFM Efector OB5024 Fiber Optic Amplifier – With Original Box
IFM electronic OB5024 fiber optic amplifier for industrial photoelectric sensing applications. Features adjustable sensitivity, programmable light-on/dark-on operation, and LED status indicators.
Technical Specifications
- Brand: IFM electronic / Efector
- Model / MPN: OB5024
- Type marked on unit: OBF-FPKG/T/AS

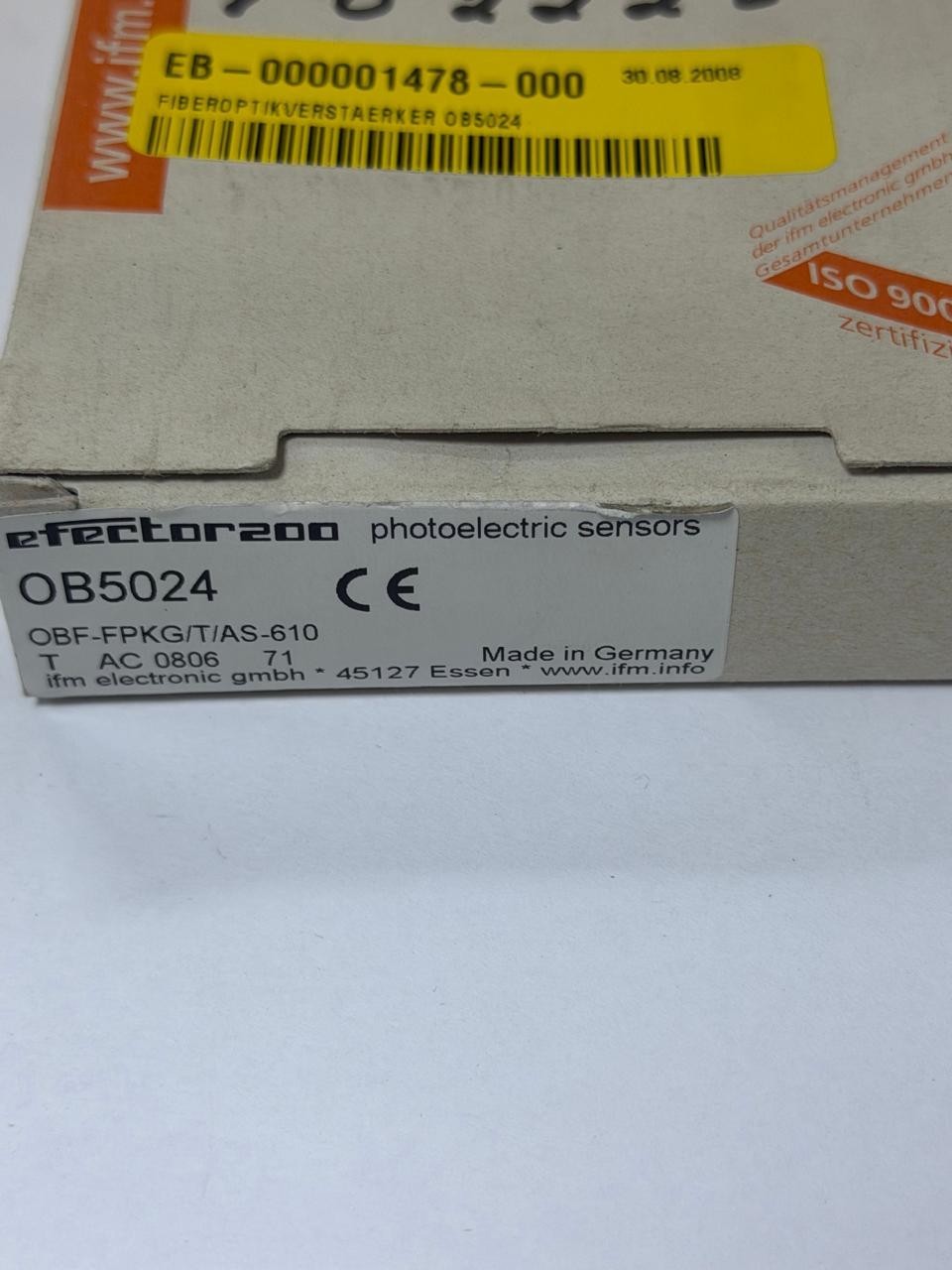

- Box designation: OBF-FPKG/T/AS-610
- Supply voltage: 10–36 VDC
- Output type: PNP
- Switching output rating: 100 mA
- Function-check output rating: 10 mA
- Current consumption: 35 mA at 24 VDC
- Switching frequency: 500 Hz
- Light source: Red light, 660 nm
- Through-beam range: Up to 1.2 m*
- Diffuse-reflection range: Up to 70 mm*
- Adjustable time function: 0.002–0.09 seconds
- Connection: M8, 4-pin connector
- Protection rating: IP65
- Operating temperature: −25°C to +60°C
- Housing material: ABS
- Dimensions: 36 × 15 × 60 mm
- Mounting: DIN rail
- Country of manufacture: Germany
