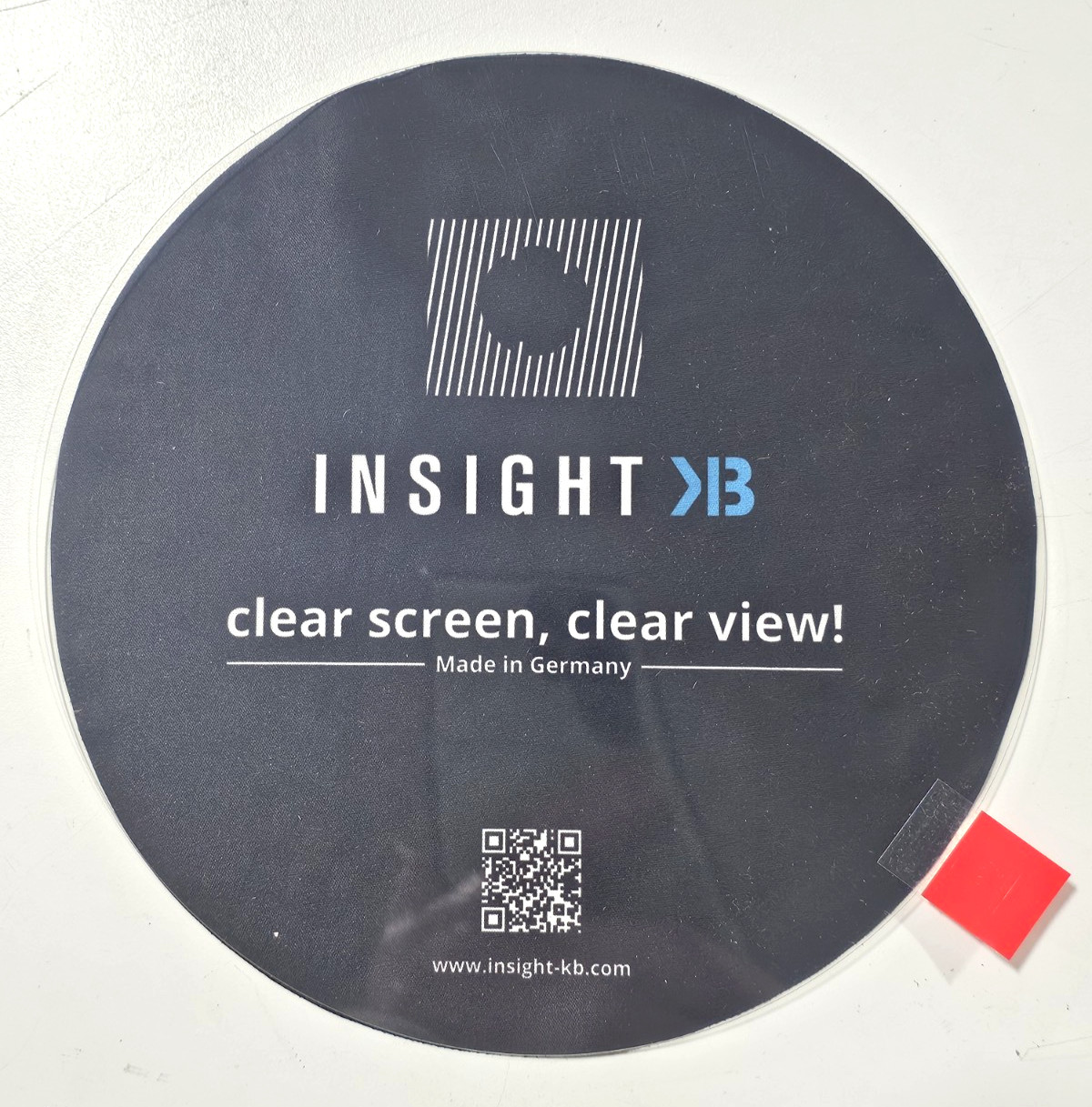

INSIGHT KB, CLEAR VIEW DISC FOR CNC MACHINES, SEE DROP DOWN FOR SIZES:
$146.00

F O R S A L E !
BRAND NEW
INSIGHT KB
CLEAR VIEW DISC FOR CNC MACHINES
SIZES AVAILABLE....200 mm (7.87")300 mm (11.81")400 mm (15.75")
SEE HOW IT VIEW DISC GIVES YOU PERMANENT VISUAL CONTROL OF THE PROCESS IN THE MACHINE ROOM
MAKES IT EASIER TO RUN IN THE MACHINE, BUT ALSO MAKES WORK MUCH MORE EFFICIENT, SAFER, AND MINIMIZES THE COST OF REJECTS

---

---

---

INSIGHT KB, CLEAR VIEW DISC FOR CNC MACHINES, SEE DROP DOWN FOR SIZES

$146.00

---

Insight KB Clear View Disc V4.0 CVD300 – 300mm CNC Coolant Sight Window

$119.99

---

Insight KB Clear View Disc V4.0 CVD400 – 400mm CNC Coolant Sight Window

$159.99

---
