KEYSIGHT EDU36311A NB1-class Benchtop DC Power Supply, 90 W, 30 V, 3 outputs:
$629.99

Maximum current per output
5 A
Maximum power
90 W
Maximum voltage per output
30 V
Number of outputs
3
Up / down programming settling time
80 ms
Adjustable slew rate
No
Data logger
No
LIST mode
No
4-wire remote sense
No
Arbitrary waveform generation
No

Highlights

The Keysight Smart Bench Essentials (SBE) Series is a set of four unique instruments with PathWave BenchVue application software to connect, control, and capture measurement data.

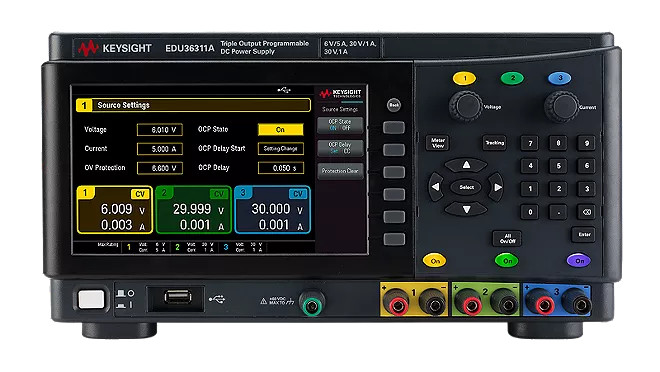

The EDU36311A triple-output power supply has a compact design to fit anywhere on your bench. Monitor all your outputs simultaneously from any angle with its 7-inch color display. Each output is independent — connect your outputs in a series for higher voltage, in parallel for additional current, or stack to provide 0 to ±30 V. A sequencing feature enables and disables outputs in a set pattern. You can now activate the control logic before applying power to the rest of your device.

Get Keysight's PathWave BenchVue power supply software for remote control and data logging
Achieve ripple and noise at <1mVrms for low noise output
Experience accurate current and voltage control with excellent programming and readback

Measure with confidence using exceptional line and load regulation for a stable output
Save configurations for repeat test setups with the USB flash drive
Simplify connectivity with USB and LAN (LXI Core)
