On eBay Now...Keithley 7002 Switch System 10 - Slots Mainframe GPIB - No Cards For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

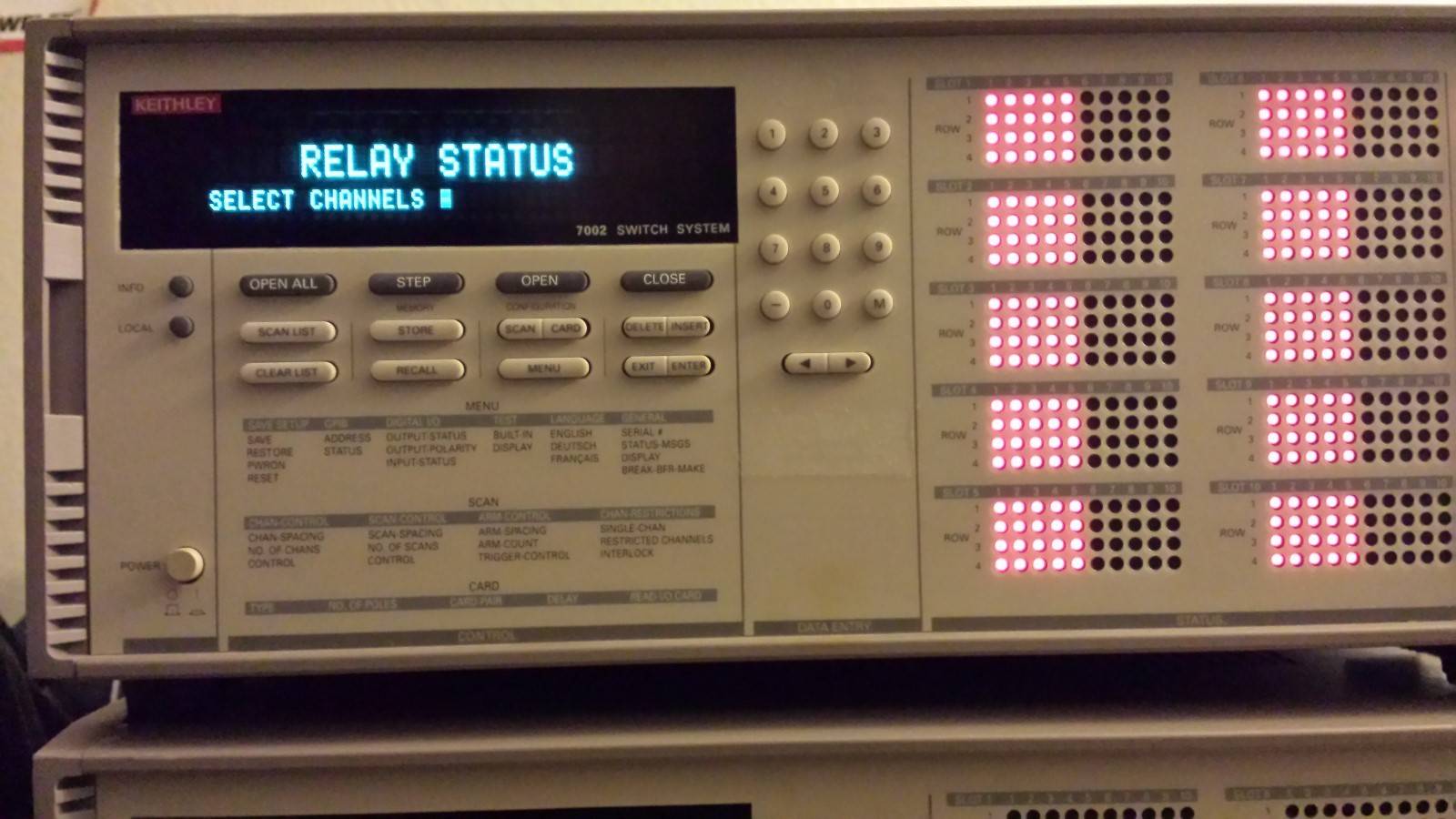

Keithley 7002 Switch System 10 - Slots Mainframe GPIB - No Cards:
$500.00
SYSTEMCAPACITY: 10 plug-in cards per mainframe.MEMORY: Battery backed-up storage for 500 switch patterns. SWITCH SETTLING TIME: Automatically selected by themainframe. For different switchcards, 7002 will be set tothe slowest relay settling time. Additional time from 0 to99999.999 seconds can be added in 1ms increments.TRIGGER SOURCES:External Trigger (TTL-compatible, 600ns minimum pulse, rear panel BNC).IEEE-488 bus (GET, *TRG)Trigger LinkManual (front panel)Internal Timer, programmable from 1.0ms to 99999.999seconds in 1.0ms increments.STATUS OUTPUT: Channel Ready (TTL-compatible signal,rear panel BNC). Low going pulse (10µs typical) issuedafter relay settling time. SWITCHING SEQUENCE: Break-before-make (programmable).MAINFRAME DIGITAL I/O: 4 open collector outputs (30Vmaximum, 100mA maximum sink current, 10Ω outputimpedance), 1 TTL compatible input, 1 common, 1+5V.RELAY DRIVE: 3.5A maximum for all 10 card slots. CARD SIZE: 32mm high × 114mm wide × 272mm long (1¼ in × 4½ in × 10¾ in).CARD COMPATIBILITY: Fully compatible with all 7001 cards.
Keithley 7002 Switch System w/ x10 7164 20 Channel Scanner Card Modules
$124.99
Keithley 7002 Switch System w/ 10x 7011-C Quad 1x10 Multiplexer Cards
$2999.00
Keithley 7002 Switch System 10 - Slots Mainframe GPIB - No Cards
$500.00
