LENEL:S2 LNL-R11320-05TB BD S-Gang BlueDiamond Multi-Technology Reader For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

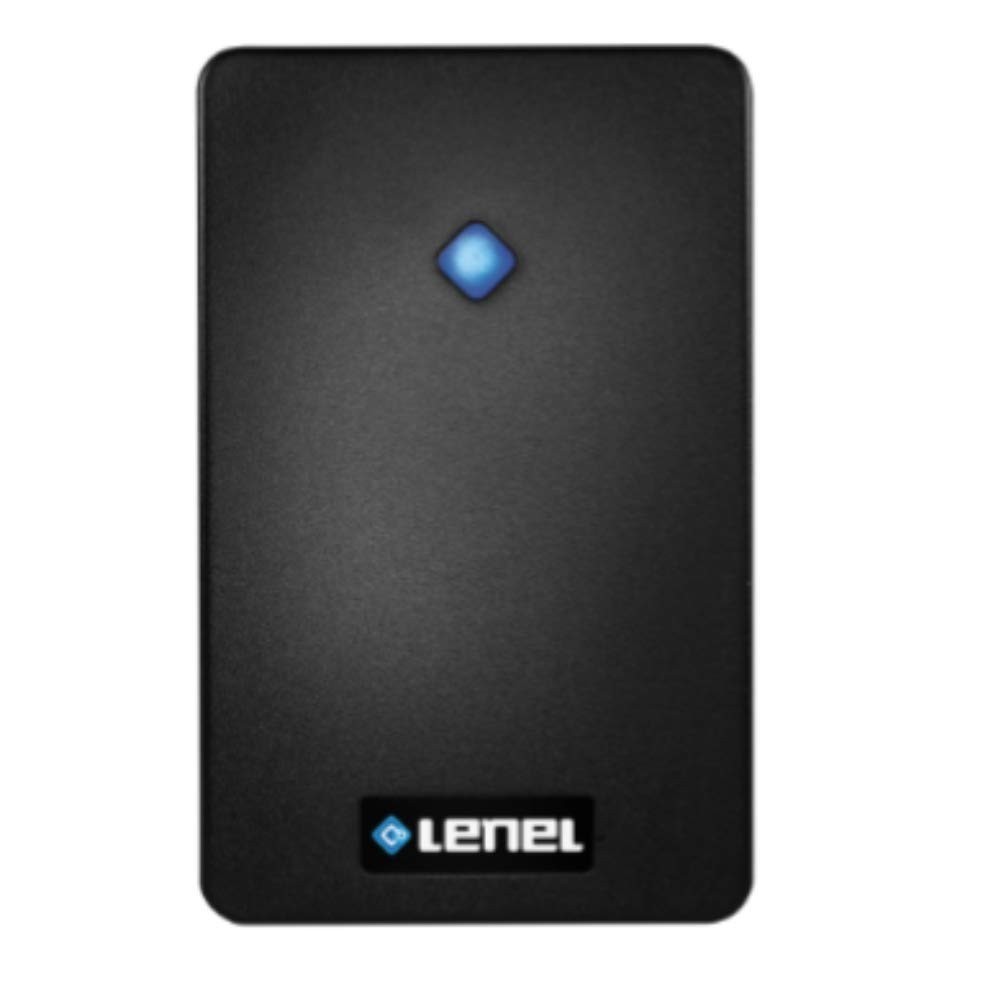

LENEL:S2 LNL-R11320-05TB BD S-Gang BlueDiamond Multi-Technology Reader:
$149.00

Support for BlueDiamond mobile credentials via Bluetooth
Multi-tech readers offer simultaneous support for: 125kHz proximity cards and 13.56MHz smart cards
Mobile-enabled readers support mobile credentials out of the box
Wiegand, SF/2F or OSDP with or without secure channel encryption, auto-configuring with LenelS2 access panels
Firmware updates, custom key loading and configuration changes via OSDP file transfer when BlueDiamond multi-tech readers are paired with the OnGuard access control system version 7.5 or greater, Mercury xSeries Controllers and Mercury Series 3 i/o boards
Slim profile
Fingerprint-resistant black textured finish
Optical tamper switchThe Lenel LNL-R11320-05TB is a BlueDiamond Multi-Technology Standard-Size Reader for the LenelS2 access control platform. Specifically, it reads BlueDiamond mobile credentials over Bluetooth in addition to 125 kHz proximity and 13.56 MHz smart cards.In addition, the LNL-R11320-05TB is non-proprietary. As a result, it operates with LenelS2 OnGuard, NetBox, and Elements head-end systems.Lenel LNL-R11320-05TB credentials
First, the reader supports BlueDiamond mobile credentials at distances up to 30 ft (9 m). Then, it simultaneously reads HID iCLASS, MIFARE, DESFire EV1, and DESFire EV2 smart cards. Also, it supports 125 kHz prox cards alongside the smart-card and mobile modes.Furthermore, the reader outputs Wiegand, OSDP, OSDPv2, or Supervised F/2F. Therefore, it integrates with legacy and modern access-control panels.Physical and environmental
The housing measures 4.7 × 3.0 × 0.8 in (120 × 76 × 21 mm). In addition, it is molded polycarbonate/ABS with a black textured fingerprint-resistant finish. As a result, it mounts to a wall surface or to US, UK, and EU switch boxes.Furthermore, the reader operates from -35 °C to 65 °C (-31 °F to 149 °F) at 0–100% RH non-condensing. Also, it carries an IP65 ingress protection rating.Additional information
Weight
0.5 lbs
Dimensions
5.5 × 3.5 × 1.5 in
Condition
New
