LYSO Crystal Array 3X3 Pixels (9pcs) for Hi-Energy Gamma Detector Scintillator For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

LYSO Crystal Array 3X3 Pixels (9pcs) for Hi-Energy Gamma Detector Scintillator:
$75.00

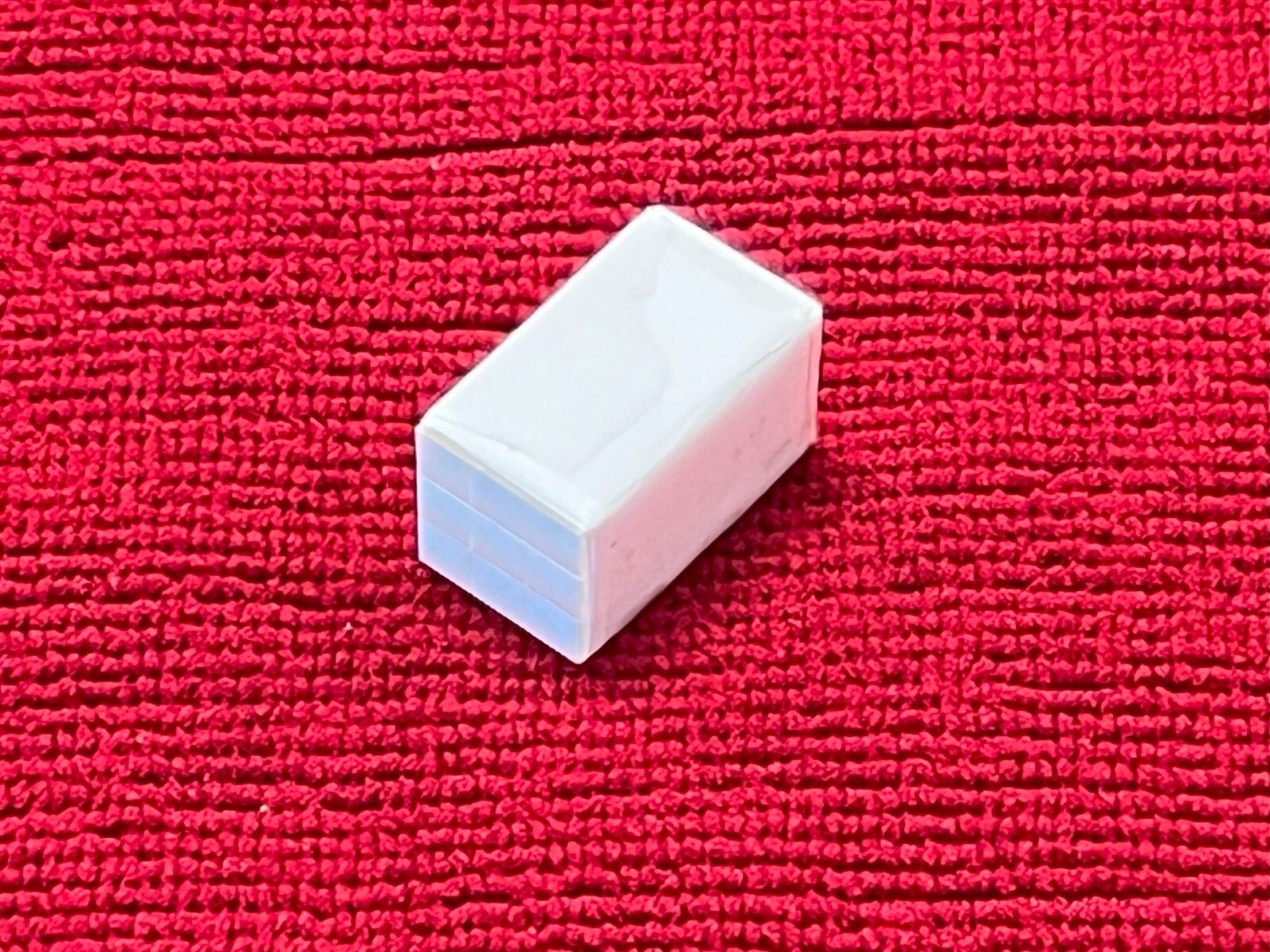

This listing is for a quantity of9 LYSO crystalsin a 3X3 array!!!

LYSO Crystals measuring 4X4X22mm each fixed in a 3X3 array. All sides of each individual crystal come polished, with pixelsindividually and collectively surrounded by PTFE Tape used as areflector.The PTFE reflective and adhesive that holds it to each crystal can easily be removed ifdesired. Send me a message if you just want the quantity of individual crystals with no PTFE surrounding them.

Custom size arrays and Pixel quantities available on request.

LYSOis a Premium Scintillator Material with very goodenergy resolution and guaranteed to work for radiation detection when coupledto a PMT and built into a probe. LYSO is denser than BGO or GSO with a specificdensity of 7.16 g/cm^3 that provides excellent stopping power for high energyphotons. Much greater density than that of NaI(Tl) and is non-hygroscopic andsafe to handle. LYSO is very durable anddoes not break easily. LYSOcontains Lutetium that is slightly radioactive itself, so you have a veryspecific background in this material. When measuring low energy samples, thisbackground can be subtracted, but is not always necessary. The individual crystals typicallysell new at a price of $50 each. This is a great bargain for those looking for the perfect crystal for their high-energy experiments or research projects.

ArrayDimensions

Length=22mm
Sides (all 4)= mm
Weight= gm

Length=22mm
Sides (both)=4mm
Weight=2.50gm

From the manufacture:

LYSO crystal is an ideal generation scintillator crystal.LYSO (Cerium-doped Lutetium Yttrium Orthosilicate). LYSO crystal has theadvantages of high light output and density, quick decay time, excellent energyresolution and low cost. These properties make LYSO an ideal candidate for arange of ray detection applications in nuclear physics and nuclear medicine,which require higher, improved timing resolution and superior energyrevolution.

Physical Properties OfLYSO

Density (g/cm3)

7.16

Effective Atomic Number

Radiation Length (cm)

1.10

Decay Constant (ns)

40-44

Peak Emission (nm)

428

Light Yield (Relative BGO=100%)

190

Index of Refraction

1.82

Peak excitation (nm)

375

Radiation Hardness (rad)

>106

Melting Point (°C)

2050

Hardness (Mohs)

5.8

Cleavage

None

Hygroscopicity

I have tons of other radiation detection related equipment listed, so please check out myother items.Iam always adding new items in thiscategory, so please don't forget to add me to yourfavorites listand come back often!

Attention school teachers and students. These are excellentfor science and physics projects, experiments and term or research papers.Scintillator detectors are fun and easy to build for all age groups from highschool through college and university. Great experience and fun for theelectronic hobbyist as well.
