Lansdale 700-325-00240 6" Grooved Butterfly Valve 300 PSI UL FM Fire Sprinkler For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Lansdale 700-325-00240 6" Grooved Butterfly Valve 300 PSI UL FM Fire Sprinkler:
$250.00

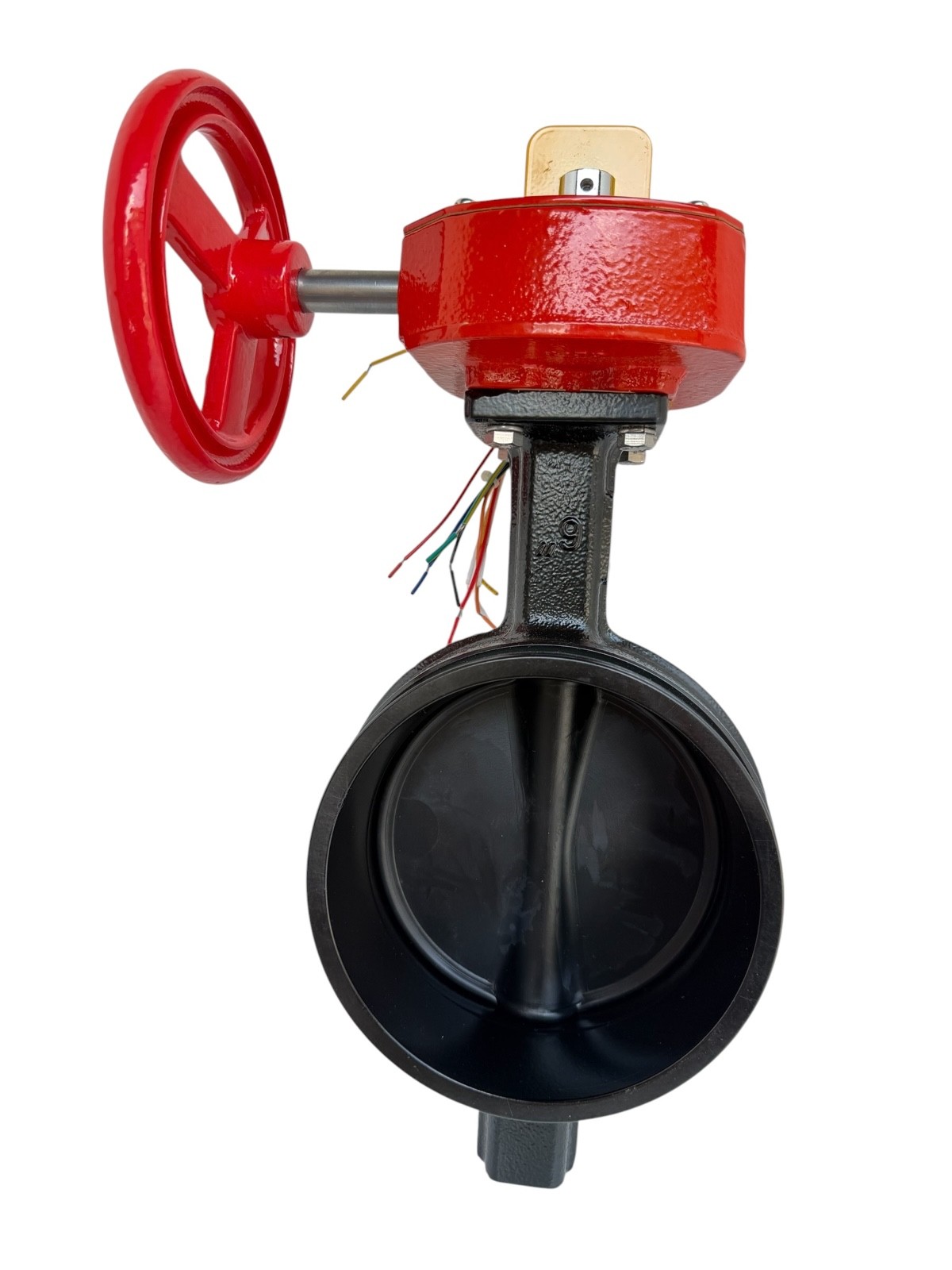

Lansdale 6" Grooved Butterfly Valve – Part #700-325-00240

Lansdale Valve & Manufacturing6-inch grooved butterfly valvedesigned for fire protection and sprinkler system applications. Features agear-operated handwheelandtwo internal supervisory switchesfor valve position monitoring.

The valve isUL ListedandFM Approvedand is rated for a maximum working pressure of300 PSI / 20.7 bar.

Features

Manufacturer: Lansdale Valve & Manufacturing
Product: Lansdale BFV Butterfly Valve
Part Number:700-325-00240
Nominal Size:6" / DN150
Grooved-end connection
Gearbox / handwheel operated
2 internal supervisory switches
Valve position indication
Designed for fire sprinkler and fire protection piping
Maximum working pressure:300 PSI / 20.7 bar
UL Listed
FM Approved
Manufactured in Korea

Construction

Body:ASTM A536 ductile iron, nylon coated
Disc:ASTM A536 ductile iron, EPDM encapsulated
Stem:AISI 410 stainless steel
Operation: Gearbox operated
Connection: Grooved
Size: 6" / DN150
Working Pressure: 300 PSI / 20.7 bar

Supervisory Switch Information

The gearbox incorporatestwo internal switchesfor valve position monitoring.

Switch 1 is intended for connection to a supervisory circuit of a compatible fire alarm control panel. Switch 2 can be used as an auxiliary switch where appropriate.

Switch electrical marking:16A, 125/250 VAC

The supervisory switch changes position when the valve is moved from the fully open position, allowing the valve position to be monitored by the fire protection/alarm system.

Applications

Suitable for applications including:

Fire sprinkler systems
Fire protection piping
Wet sprinkler systems
Sprinkler risers
Fire suppression systems
Fire alarm supervisory circuits
Commercial and industrial fire protection systems
Grooved fire protection piping

Identification

Part Number:700-325-00240
Size:6" / DN150
Type: Grooved Butterfly Valve
Pressure Rating:300 PSI / 20.7 BAR
Operation: Gear Operated
Supervisory Switches: 2 Internal
Approvals:UL Listed / FM Approved
Manufacturing Date shown on packaging:2020-06-03
Country of Manufacture:Korea

Includes the Lansdale butterfly valve and installation instructions shown in the photos.

ITEM SPECIFICS

Brand: Lansdale
Manufacturer: Lansdale Valve & Manufacturing
MPN: 700-325-00240
Model: Lansdale BFV
Type: Butterfly Valve
Valve Type: Grooved Butterfly Valve
Nominal Size: 6 in
DN Size: DN150
Connection Type: Grooved
Operation: Gear Operated
Actuation: Manual Handwheel
Maximum Working Pressure: 300 PSI
Pressure Rating: 20.7 Bar
Body Material: ASTM A536 Ductile Iron
Body Coating: Nylon Coated
Disc Material: ASTM A536 Ductile Iron
Disc Seal: EPDM Encapsulated
Stem Material: AISI 410 Stainless Steel
Supervisory Switches: 2 Internal Switches
Switch Rating: 16A 125/250VAC
Application: Fire Protection / Fire Sprinkler System
Certification: UL Listed
Approval: FM Approved
Country/Region of Manufacture: Korea
Manufacturer Part Number: 700-325-00240
