MT 3 Morse Taper Heavy Duty CNC MT3 Live Center Set 4500RPM 0.0004 TIR New M[ For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

MT 3 Morse Taper Heavy Duty CNC MT3 Live Center Set 4500RPM 0.0004 TIR New M[:
$163.95

SharsMT 3 Morse Taper Heavy Duty CNC MT3 Live Center Set 0.0004 TIR NewFounded in 1978, Shars Tool Company has been serving the industrial community and machine shops in the USA for over 30 years. We carry high quality live centers, with individual certificate in each product.Premium Quality 100%SATISFACTION GUARANTEEWITH CERTIFICATE

Product Code

SKU 202-3561 LIVE CENTER CATEGORY Live Center & Point Sets NOSE STYLE Interchangeable Nose SHANK SIZE Morse Taper 3 MAX RPM 4500 LOAD CAPACITY LBS 880 TIR (INCH) 0.0004

POINT ANGLE 60/90 POINT DIAMETER 1.18 POINT LENGTH 0.59 OUTSIDE_DIAMETER LIVE CENTER 1.85

Product application

This live center has a combination of needle roll bearing, P5 class ball thrust bearing, and deep groove ball bearing.
It's application to medium to high speed machining with heavy duty load on CNC lathe.
Adjustable needle roller bearing carry all radial loads while heavy duty ball thrust bearing carry all axial loads.
With external shrink sleeve on the needle bearing, the clearance of the needle roller bearing can be adjusted to improve the precision and service life of the live center.
The rotation spindle is made from bearing steel with heat treated to HRc 60+/-2 for high rigidity and wear resistance.
Extra long spindle point extends into deep groove ball bearing supported shank to effectively improve rotating performance and reduce vibration.
Lubricant can be added into the live center body to maintain lubrication on the bearing.
Built-in oil seal protects bearing against ingress of coolant, dirt, and swarf.

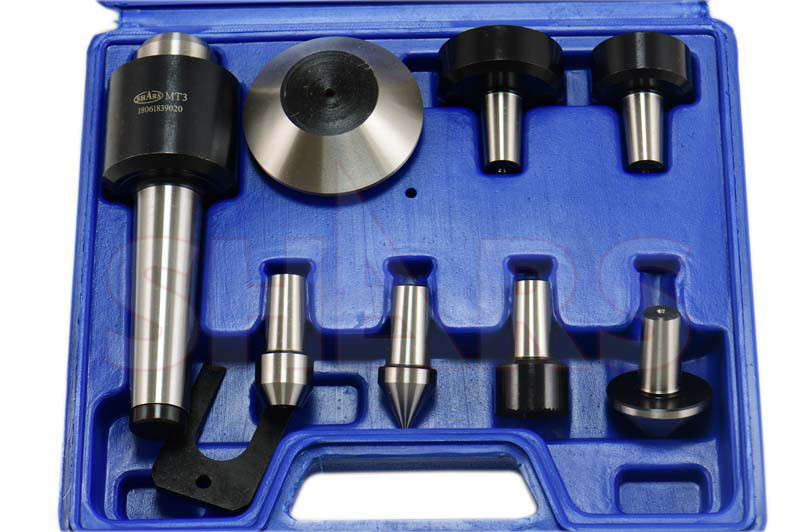

7 Interchangeable Points
1 wedge to separate point from live center body
