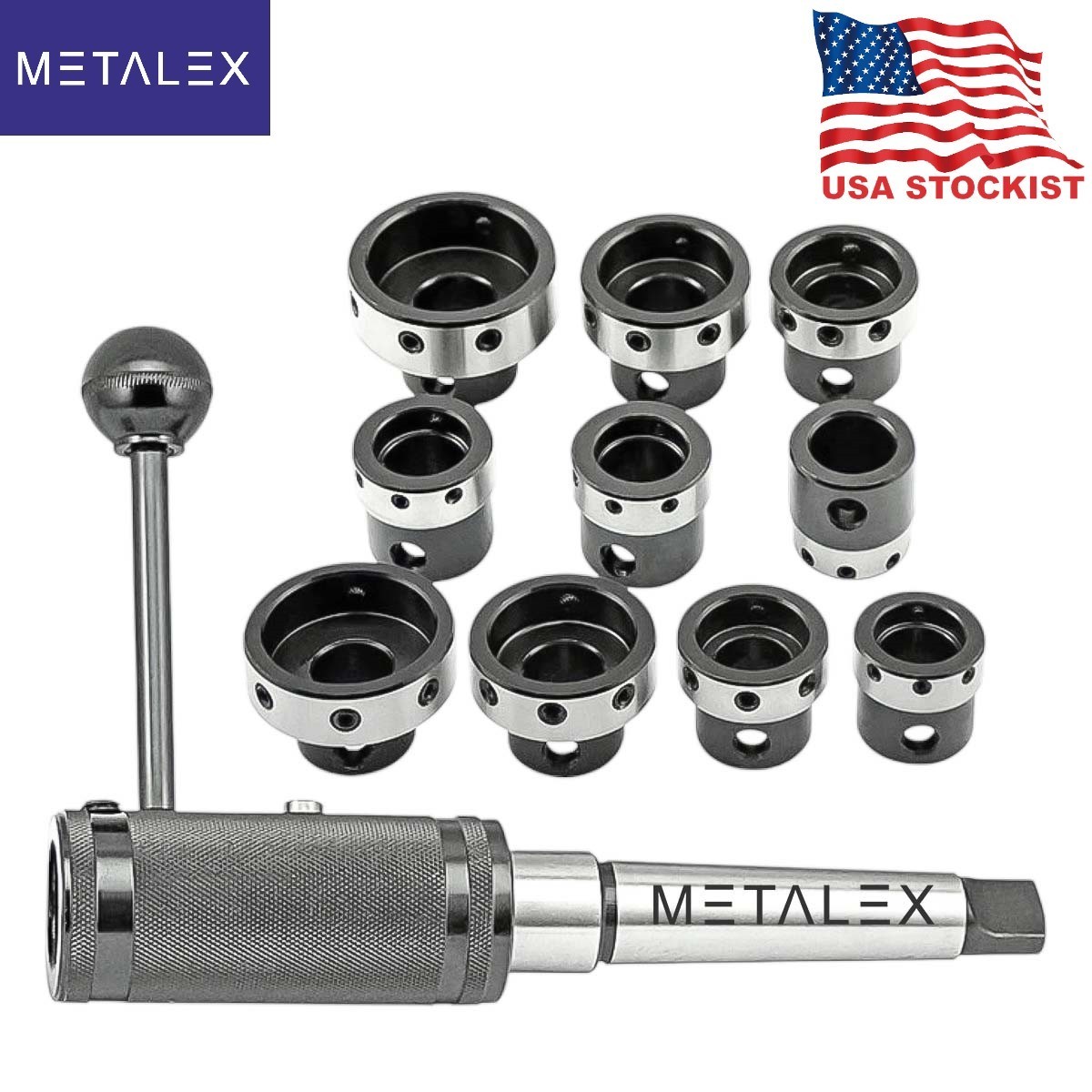

MT3 Sliding Lathe Tailstock Die Holder Set Metric & Imperial Threading Tool Kit:
$139.50

METALEX High Precision Engineering Tools & Industrial Supplies MT3 SHANK LATHE TAILSTOCK DIE HOLDER SET WITH STOP HANDLE - HOLDS 4 IMPERIAL & 6 METRIC DIES Technical Specifications Shank Size MT3 / Morse Taper 3 Style Sliding Travel 58mm Imperial Die Holders Included (4 Pcs) 13/16", 1", 1-5/16" & 1-1/2" Metric Die Holders Included (6 Pcs) 16x5mm, 20x5mm, 20x7mm, 25x9mm, 30x11mm & 38x14mm Modes of Operation Free-Hand, Pegged Sleeve & Stop Handle Packaging Fine Finished Wooden Box CAUTION: If threading up to a shoulder under power using the pegged sleeve or stop handle modes, stop before the shoulder and finish the thread by hand. Key Features

10 Die Holders in One Set: Covers 4 imperial sizes (13/16", 1", 1-5/16" & 1-1/2") and 6 metric sizes (16x5mm to 38x14mm) — imperial and metric threading from a single kit.
Three Modes of Operation: Free-hand for smaller threads and shoulder work, pegged sleeve to stop rotation on larger dies, or stop handle for restrained cutting against the lathe bed.
Sliding Sleeve Design: The knurled sleeve holds the die and slides freely on a fixed MT3 arbor for smooth, accurately aligned threading.
Fine Finished Wooden Storage Box: Keeps the full 10-holder set organized and protected between jobs.
Direct Tailstock Fit: Standard Morse Taper 3 (MT3) shank fits directly into any MT3 lathe tailstock.
Tip for Best Results: Using a suitable cutting lubricant while threading helps extend die life and improve thread finish.

Product Description

A sliding tailstock die holder set for cutting accurately aligned external threads on a lathe using standard round button dies, suited to both hobbyists and professional machinists. The button die holder sits at the front of a knurled sleeve, which slides freely on a fixed arbor attached to the tailstock via an MT3 Morse Taper shank. Three modes of operation cover the full range of jobs: free-hand for smaller threads and threading up to a shoulder, a pegged sleeve to stop rotation on larger dies, or a stop handle that bears against the lathe bed for restrained cutting. The set includes 4 imperial die holders (13/16" to 1-1/2") and 6 metric die holders (16x5mm to 38x14mm), packed together in a fine finished wooden box for storage.
