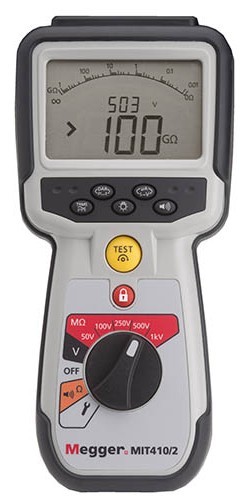

Megger MIT410/2 Insulation Continuity Tester, PI, DAR, 50V/100V/250V/500V/1000V:
$1155.00

Untitled Document Megger MIT410/2 Insulation Continuity Tester, PI, DAR, 50V/100V/250V/500V/1000V Model: MIT410/2 | Order No:1004-735

The MIT4002/2 Series are designed not only for electrical and industrial testing, but also has an exceptionally wide range of applications in electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics, and maintenance.

Brand: Megger Model: MIT410/2 Order No: 1004-735 Condition: NEW Description Megger MIT410/2 Insulation Continuity Tester, PI, DAR, 50V/100V/250V/500V/1000V

MIT410/2 - 50 V, 100 V, 250 V, 500 V and 1000 V + Polarization Index, Dielectric Absorption Ratio.

Insulation testing has been enhanced with response controlled test voltages to limit over-voltage to 2%, rather than the industry standard 10-20%.

A variable range has been added to allow any intermediate voltage from 50 V to 1000 V in 10 V steps, where application specific test voltages are required that do not appear in the standard ranges.

Continuity testing is how significantly faster, and a single auto-ranging 0.01 megohm to 1.0 megohm function replaces the \"ohms\" and \"kOhms\" ranges. Retained are the 200 mA and 20 mA test options.

Replacing the original MIT400 instruments the new units feature a redesigned case, back-stand, and 6 cell battery compartment with separate fuse access. All instruments are over-moulded for increased protection and achieve an IP54 weatherproof testing up to 1000 V and 200 GΩ range

Stabilized insulation test voltage (New)

Single range, faster continuity testing from 0.01 ohm to 1 megohm (New)

600V Trms AC and DC voltage measurement

Live circuit detection and protection

User variable insulation test voltage from 100V to 1000V (New) depending on model

Test result storage and Bluetooth downloading depending on model

CAT IV 600 & IP54

Insulation Resistance Testing

The stabilized insulation test voltage is now accurate to +2% -0%. This compares to the industry standard +20%, providing a more accurate test voltage without the risk of over-voltage damage to circuits or components. The output voltage is maintained between 0 and 2% throughout the test range.

Where a non-standard test voltage is required, a variable range allows the exact test voltage to be selected from 10 V up to 1000 V. Subject to the same stabilized output Avionics

Military land, Marine and Air line goods

Electrostatic measurement

Component testing

Battery powered traction and lifting equipment

Included

Megger MIT410/2 Insulation Continuity Tester
Red/Black Silicone Test Leads with Probes and Clips
SP5 Remote Switch Probe
User Guide CD
Batteries 6 x AA Alkaline 1.5V
Carry Case
Calibration Certificate

Specifications Insulation test voltage50 V, 100 V, 250 V, 500 V, 1000 VResolution0.1 kΩShort circuit/charge current2 mA +0% -50% to EN 61557-2 (2007)Open circuit voltage-0% +2% ± 2VTest current1 mA at min. pass value of insulation to a maximum of 2 mA max.Leakage10% ±3 digitsVoltage3% ±3 digits ±0.5% of rated voltageTimer control60 second countdown timerGuard terminal performance1000 test resultsBattery life3000 insulation tests with duty cycle of 5 sec ON /55 sec OFF @ 1000 V into 1 MΩ Charger (Optional): 12-15 V dc (accessory interface)Temperature co-efficient< 0,1% per °C up to 1 GΩ, < 0,1% per °C per GΩ above 1 GΩDimensionsInstrument 228 mm x 108 mm x 63 mm (9.00 in x 4.25 in x 2.32 in)Weight600 g (MIT400/2), (28.74 oz) Terms & Conditions
