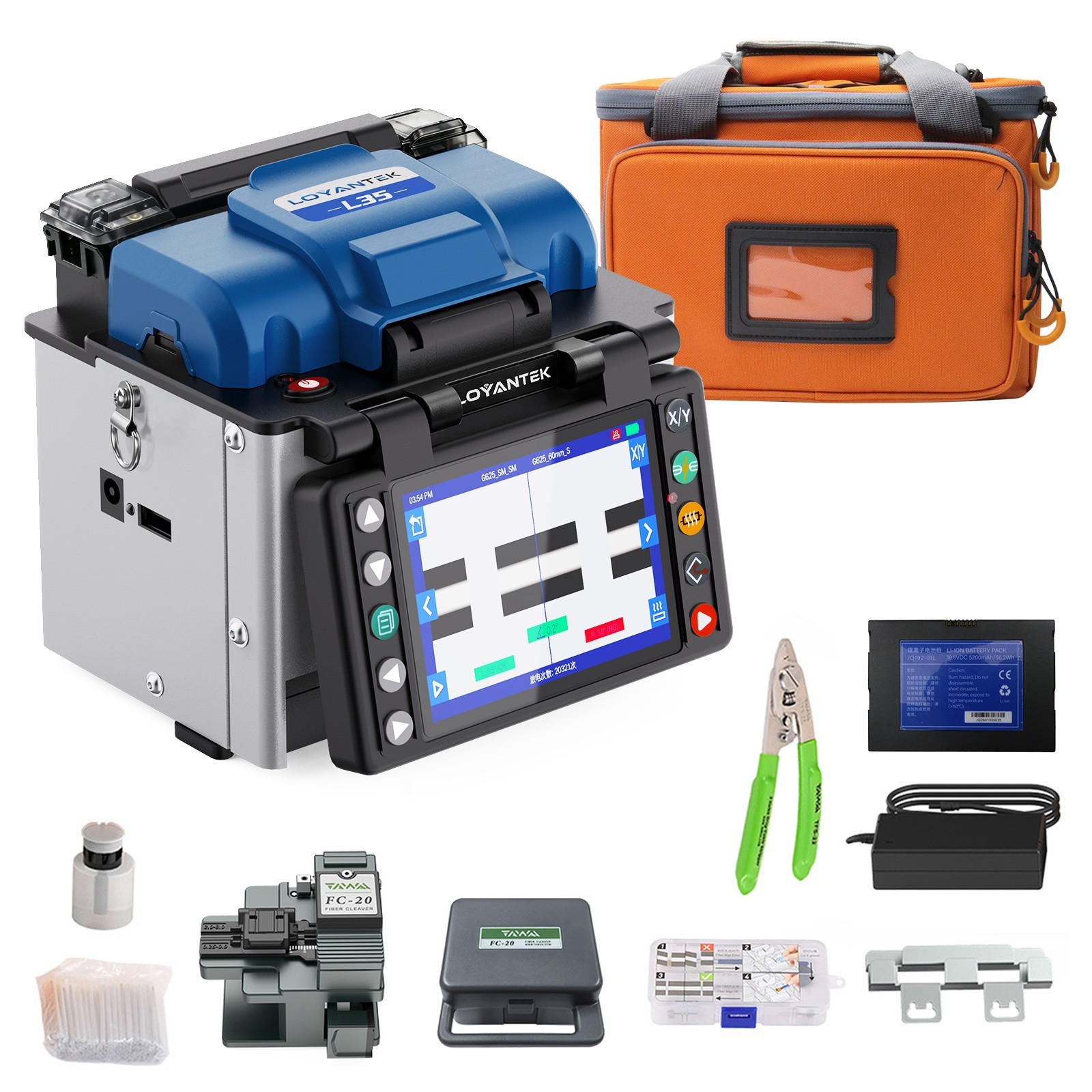

Mini Fusion Splicer Automatic Optical Fiber Fusion Splicer Kit ,FTTX Splicer Kit:
$379.00

LOYANTEK L35 Optical Fusion Splicer Mini Fiber Optic Splicer


COMPACT PROFESSIONAL FUSION SPLICER – BUILT FOR TIGHT SPACES– Measuring just 125 × 105 × 113 mm, this mini fiber fusion splicer is significantly more compact than traditional splicing machines. The small footprint makes it easier to carry and especially useful when working with short fiber lengths, damaged main lines, confined spaces, FTTH installations, and field repairs where every inch of workspace matters.4-MOTOR CORE ALIGNMENT & 0.01dB AVERAGE SPLICE LOSS– Equipped with a 4-motor core alignment system and 320X fiber magnification, the L35 is designed for precise fiber alignment and consistent splicing results.8-SECOND SPLICING & 18-SECOND HEATING – LESS WAITING, MORE WORKING – Fast 8-second splicing and 18-second heating help technicians move efficiently through installation and repair jobs. The built-in heater provides quick, reliable sleeve protection, while the automatic arc calibration system helps compensate for changes in air pressure and temperature for more consistent field performance.5200mAh BATTERY – UP TO 260 SPLICE & HEAT CYCLES– The built-in 5200mAh lithium battery supports up to 260 continuous splice-and-heat cycles per charge, helping reduce interruptions during field work.FIELD-READY KIT WITH PRACTICAL, PROFESSIONAL PERFORMANCE– Designed for everyday fiber technicians who need dependable performance without the bulk of larger machines. The 3-in-1 fiber holder supports different fiber applications, tool-free replaceable electrodes provide easier maintenance, and the included fiber cleaver and stripper help create a practical splicing setup right out of the Method

Active Clad-Alignment

Applicable Fibers

SM(ITU-T G.652&G.657)/ MM(ITU-T G.651)/ DS(ITU-T G.653)/ NZDS(ITU-T G.655)

Compatible Fiber/Cable

0.25~3.0 mm / indoor flat cable

Fiber Holder

Replaceable

Fiber Diameter

Cladding: 80-150um, Coating: 100~1000um

Fiber Cleave Length

8~16 mm

Splice Mode

Max 128 modes

Typical Splice Loss

SM: 0.03dB/ MM: 0.01dB/ DS: 0.04dB / NZDS: 0.04dB / G.657: 0.03dB

Return Loss

>>60dB

Splicing Time

SM Quick mode :8 sec / SM Average: 10 Sec

Estimated Splice Loss

Available

Heating Time

Quick mode 18 sec.(SM G652 250um 40mm Sleeve) adjustable

Protection Sleeve Length

20mm, 30mm, 40mm, 50mm, 60mm

Heat Programs

Max 32 modes

Battery

5200mAh battery capacity, Typical 260 Cycles (Splice&Heat) per charge

Electrode Life

5000 / arc calibration by air pressure and temperature

Results Storage

The last 10,000 splice records and 2,000 result images

Tension Test

1.96~2.25N

Operating Condition

Altitude: 0~5000m, 0~95% relative humidity, -20~50°C, Max Wind 15m/s

Storage Condition

0~95% relative humidity, -20~60°C

Display

3.5\" color high resolution (800 x 480) display

Fiber Magnification

X, Y, XY, X/Y : 320X Magnification

Power Supply

AC 100-240V, DC without battery / 1.72kg with battery

Size

125Hx 105W x113D mm
