Mitsubishi Model FX10 CNC Wire EDM Electrical Discharge Machine:
$7500.00

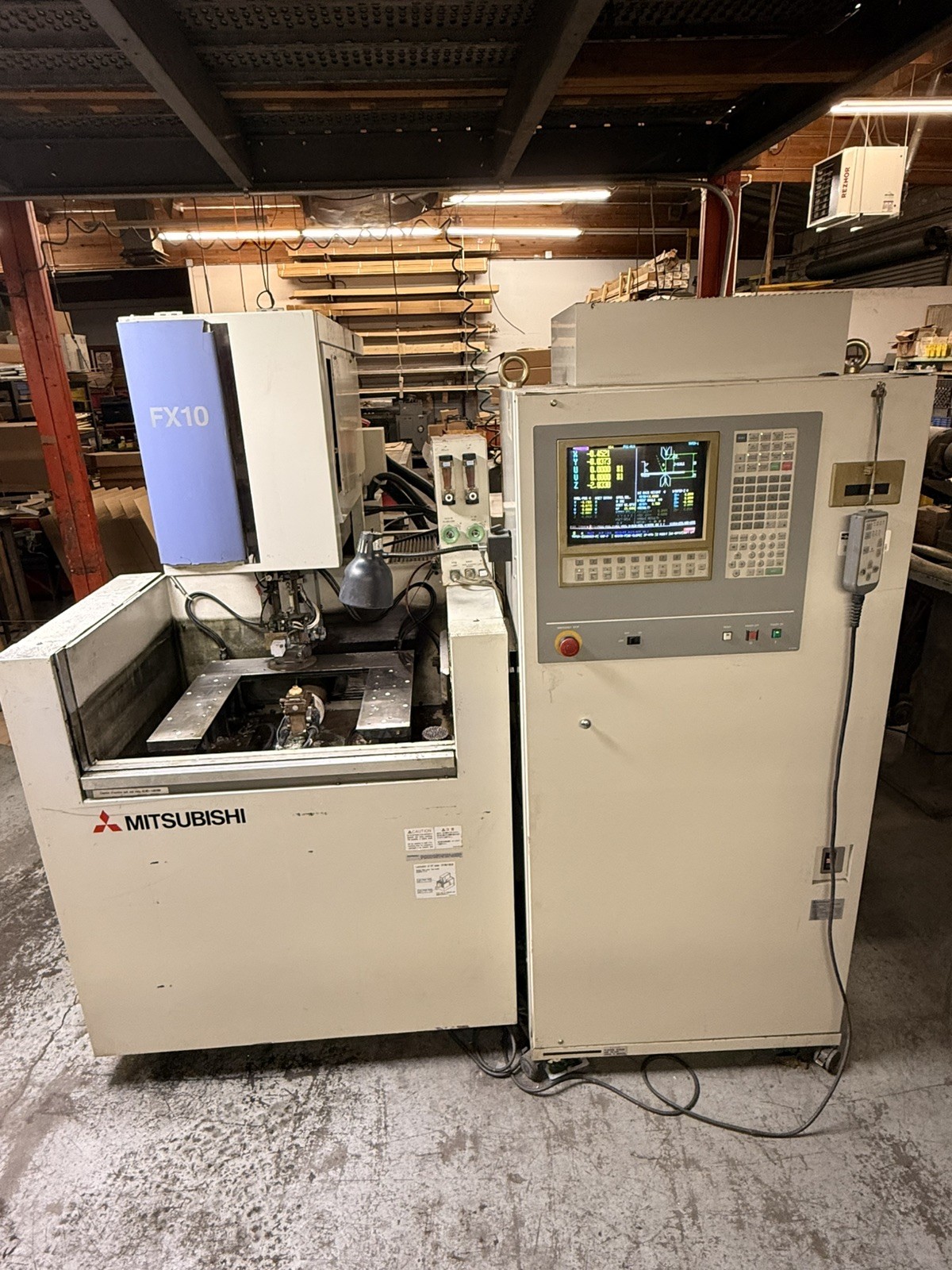

1997 Mitsubishi FX10 CNC Wire EDM Machine

Location:Santa Clarita, Ca

Condition: Used – Power Up Verified

Origin: Removed from a working facility

Overview & Current Status

We have this 1997 Mitsubishi FX10 Wire EDM under power at our facility and welcome any prospective buyers to visit our location to inspect it in person.

The machine software loads smoothly and the monitor fires up perfectly (see included video/pictures of the monitor firing up). The machine is in decent physical condition and appears to be working. However, because we do not operate this type of machinery, we have not cut any metal with it. It is being sold as-is based on our power-up inspection.

What’s Included

Mitsubishi FX10 Wire EDM Machine
Original Machine Manuals & floppies
Control Software (Loaded)

Factory Specifications (For Buyer Reference)

Model: FX10
Year of Manufacture: 1997
Control: Mitsubishi 32-Bit CNC Control
Travels: * X-Axis: 13.77"
- Y-Axis: 9.84"
- Z-Axis: 8.66"
U/V Travels (Taper): 1.25" x 1.25" (+/- 15° at 4" thickness)
Max. Workpiece Dimensions: 31.5" x 22.6" x 8.46"
Max. Workpiece Weight: 1,168 lbs
Wire Diameter Capability: 0.008" – 0.012"
Features: Submerged machining capability, Auto Wire Threading (AF3)

Approximate Weight & Dimensions

Main Machine Unit Weight: ~3,527 lbs to 4,000 lbs (Total system weight with fluid tanks/chiller empty is approx. 5,500–6,000 lbs)
Main Unit Footprint (approx.): 55" L x 74" W x 71" H
Total Operating Footprint Required (Including Tank/Chiller): Approx. 92" x 91" x 90"

Rigging & Shipping Details

On-Site Inspection: We highly encourage and welcome on-site inspections while the machine is still hooked up to power.
Flatbed Loading (FREE): We have the capability to load this machine onto a flatbed truck free of charge for the buyer.
Palletizing (Optional): If your freight carrier requires the machine to be palletized/crated, we can palletize the machine for an additional fee. Please contact us to discuss palletizing costs.
