On eBay Now...Mitsubishi Wire EDM Auto Wire-Electrode Feed Unit AWF Assembly, AT2, For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Mitsubishi Wire EDM Auto Wire-Electrode Feed Unit AWF Assembly, AT2, :
$700.00

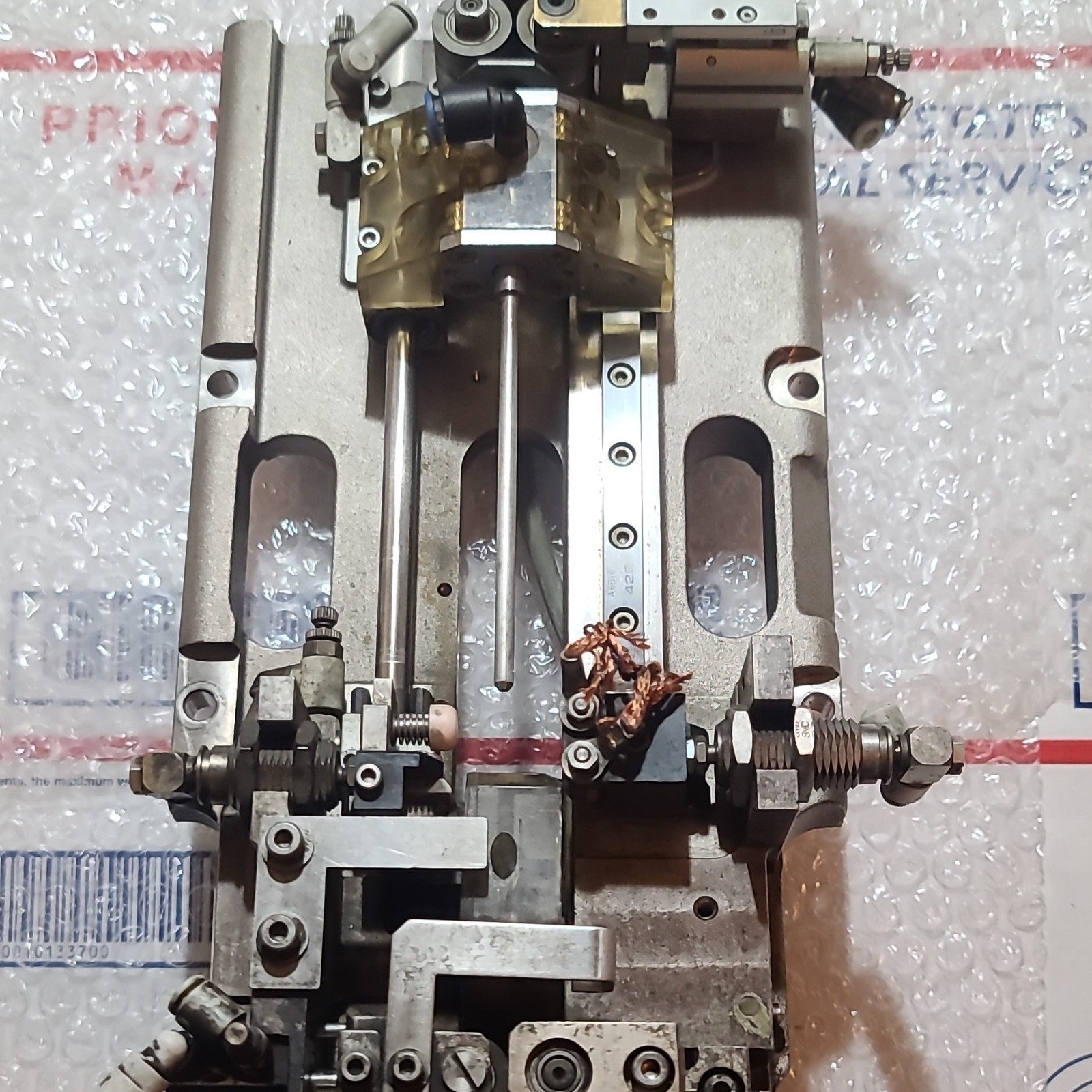

This is an original Mitsubishi Electric Automatic Wire-Electrode Feed Unit (AWF Unit) assembly for a Mitsubishi Wire Electrical Discharge Machine (EDM).Manufacturer: Mitsubishi Electric Corporation (Made in Japan)
Component Type: Auto Wire-Electrode Feed Unit (AWF mechanism)
Function: Responsible for automatically threading, cutting, tensioning, and feeding the brass EDM wire through the upper and lower guide heads during automated machining cycles and wire breakage recovery.
2. Component Breakdown & Specifications
Precision Mechanical Assembly: Heavy-duty machined aluminum base housing wire drive rollers, tension arms, micro-actuators, and pneumatic quick-connect fittings.
Threading & Cutting Modules: Integrated shear/cutter blocks and guide nozzles designed for high-speed automated wire threading.
Pneumatic & Electrical Ports: Multiple push-to-connect air fittings for pneumatic cylinder actuation and integrated sensor wiring blocks.
3. Market Valuation & Comps
New / Surplus Distributor Price: $1,800 – $2,500 (When sourced directly from industrial automation suppliers or OEM channels)
Mitsubishi Electric PAR-43MAAUB Wired MA Remote Controller
$160.00
Mitsubishi Wire EDM Servo Board Tray NFCA-02-DWC BY171A657G51 NSVB-01-DWC MELDAS
$450.00
Mitsubishi Wire EDM Auto Wire-Electrode Feed Unit AWF Assembly, AT2,
$700.00
