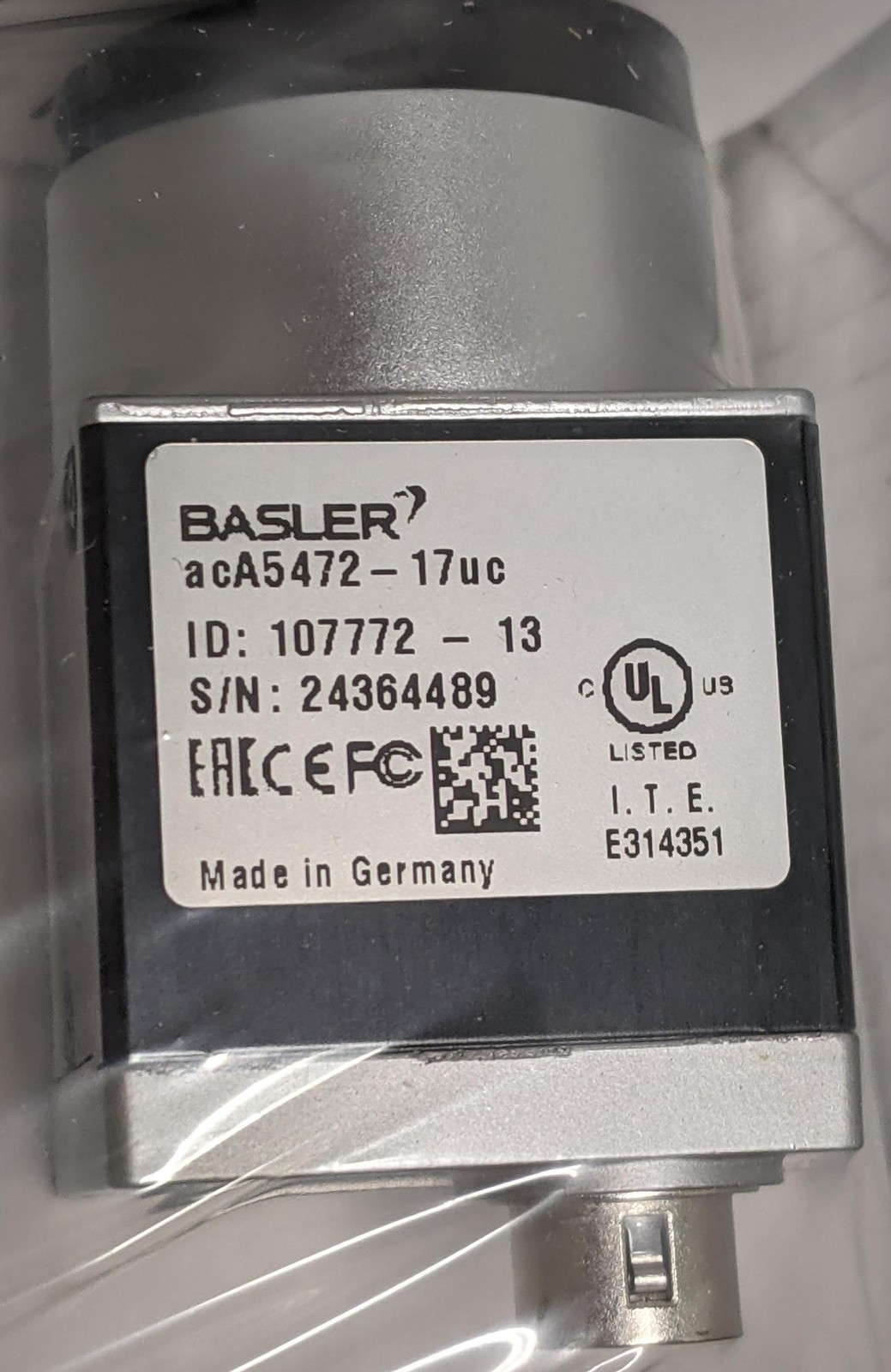

New Basler acA5472-17uc 20MP Color USB 3.0 C-Mount Machine Vision Camera:
$237.60

Basler acA5472-17uc color USB 3.0 C-mount machine vision camera. New in original Basler box. One camera and printed Basler getting started guide included per purchase. Sony IMX183CQJ-J progressive-scan CMOS rolling-shutter sensor, 20 MP, 5472 x 3648 default resolution, 17 fps, 2.40 micrometer pixels, USB3 Vision, internal IR cut filter, C-mount. No lens, USB cable, I/O cable, mounting hardware, software, or other accessories included. Serial number may vary. 60 day money back guarantee. Basler acA5472-17uc 20MP Color USB 3.0 C-Mount Machine Vision Camera

SKU 1588. New Basler ace U color area-scan industrial camera, model acA5472-17uc, Basler ID / MPN 107772. This listing is for one boxed camera per purchase.

Actual Item Photos Highlights

Sony IMX183CQJ-J progressive-scan CMOS sensor with rolling shutter
20 MP imaging with 5472 x 3648 default resolution and 5496 x 3672 full resolution
USB 3.0 / USB3 Vision interface with nominal 5 Gbit/s SuperSpeed data transfer
Hardware trigger, software trigger, and free-run acquisition support
Standard C-mount lens interface with internal IR cut filter
Compact 29.3 x 29 x 29 mm body, less than 80 g per Basler documentation

Basler General Specifications Identification ManufacturerBasler ModelacA5472-17uc Basler ID / MPN107772 Revision on Photographed Example13 Product Familyace U Camera CategoryArea scan camera Mono / ColorColor Country / Region of ManufactureGermany Sensor and Imaging SensorSony IMX183CQJ-J Sensor TypeProgressive-scan CMOS ShutterRolling shutter Sensor Format1 in Effective Sensor Diagonal15.86 mm Full Resolution5496 x 3672 pixels Default Resolution5472 x 3648 pixels; ROI configurable Resolution20 MP Pixel Size2.40 µm x 2.40 µm SpectrumVisible Frame Rate at Default Settings17 fps IR Cut FilterIncluded on color cameras; mounted inside lens mount; filter holder is not removable Interface, Control, and I/O Image Data InterfaceUSB 3.0, nominal max. 5 Gbit/s SuperSpeed Machine Vision StandardsUSB3 Vision, GenICam 2.x including PFNC 2.x and SFNC 2.x Pixel FormatsConfigurable through Basler camera features / pylon software SynchronizationHardware trigger, software trigger, or free run Exposure Time ControlHardware trigger or programmable through camera API I/O Lines1 opto-coupled input line; 1 opto-coupled output line; 2 general purpose I/O lines I/O ConnectorHirose micro receptacle HR10A-7R-6PB; recommended mating connector HR10A-7P-6S USB ConnectorStandard USB 3.0 Micro-B connector with screw lock Status LEDLED lit indicates camera operating Power, Size, Environment, and Software Camera Power RequirementApproximately 3.1 W typical at 5 VDC Camera Power SourceUSB 3.0 compliant power Lens MountC-mount Size Without Lens Mount or Connectors29.3 x 29 x 29 mm Size With Lens Mount and Connectors48.2 x 29 x 29 mm WeightLess than 80 g Operating Housing Temperature0 to 50°C / 32 to 122°F Operating Humidity20-80% relative humidity, non-condensing Storage Temperature-20 to 80°C / -4 to 176°F Storage Humidity20-80% relative humidity, non-condensing UL Housing Temperature Limit70°C / 158°F maximum UL Ambient Temperature Limit30°C / 86°F maximum ConformityCE including RoHS, EAC, UKCA, UL Listed, FCC, GenICam 2.x, IP30, USB3 Vision, REACH, KC SoftwareBasler pylon Software Suite version 4.0 or higher Supported Software PlatformsWindows, Linux x86, Linux ARM, macOS, Android

Specifications are manufacturer/model specifications for Basler acA5472-17uc. Please confirm compatibility with your lens, cable, host controller, operating system, and Basler pylon software before purchase.

Basler IR Cut Filter Specifications WavelengthTransmittance 450-610 nmTmin > 90% 450-620 nmTavg > 93% 645 +/- 10 nmT = 50% 700-1070 nmTmax < 4% 690-1070 nmTavg < 1% Basler Electrical, Cable, and Pinout Details Electrical I/O Ratings Opto-Coupled Input Line30 VDC absolute max; 0-24 VDC safe operating range; 0-1.0 VDC logical 0; >1.0-2.2 VDC transition region; >2.2 VDC logical 1; 5 mA minimum current; 5-15 mA current draw Opto-Coupled Output Line30 VDC absolute max; 3.3-24 VDC safe operating range; below 3.3 VDC unreliable; leakage current <60 µA; maximum load current 50 mA GPIO Line as Input30 VDC absolute max; 0-24 VDC safe operating range; minimum external pull-up 3.3 VDC; 0-0.8 VDC logical 0; >0.8-2.0 VDC transition region; >2.0 VDC logical 1; high-level current draw <100 µA; application must accept 2 mA sink current GPIO Line as Output30 VDC absolute max; 3.3-24 VDC safe operating range; below 3.3 VDC unreliable; internal pull-up about 2 kOhm with open collector; residual voltage about 0.4 VDC at 50 mA and 25°C; leakage current <60 µA; maximum load current 50 mA Cable Requirements USB 3.0 CableHigh-quality USB 3.0 cable with Micro-B plug; shielded as specified in the USB 3.0 standard I/O CableShielded twisted-pair wire cable; at least 0.14 mm² cross-section, close to AWG26; maximum recommended length 10 m; camera-side Hirose HR10A-7P-6S or equivalent PinLineFunction 1Line 3General purpose I/O line 2Line 1Opto-coupled I/O input line 3Line 4General purpose I/O line 4Line 2Opto-coupled I/O output line 5-Ground for opto-coupled I/O lines 6-Ground for general purpose I/O lines Included Included Per PurchaseOne Basler acA5472-17uc camera in original Basler box, plus printed Basler getting started guide Not IncludedLens, USB 3.0 cable, I/O cable, mounting hardware, software, host controller, power supply, or any other accessories Testing StatusNew/unused inventory; not function-tested after storage Serial NumberSerial number will vary when multiple units are available Guarantee60 day 100% money back guarantee
