New Digilent Analog Discovery Board:
$100.00

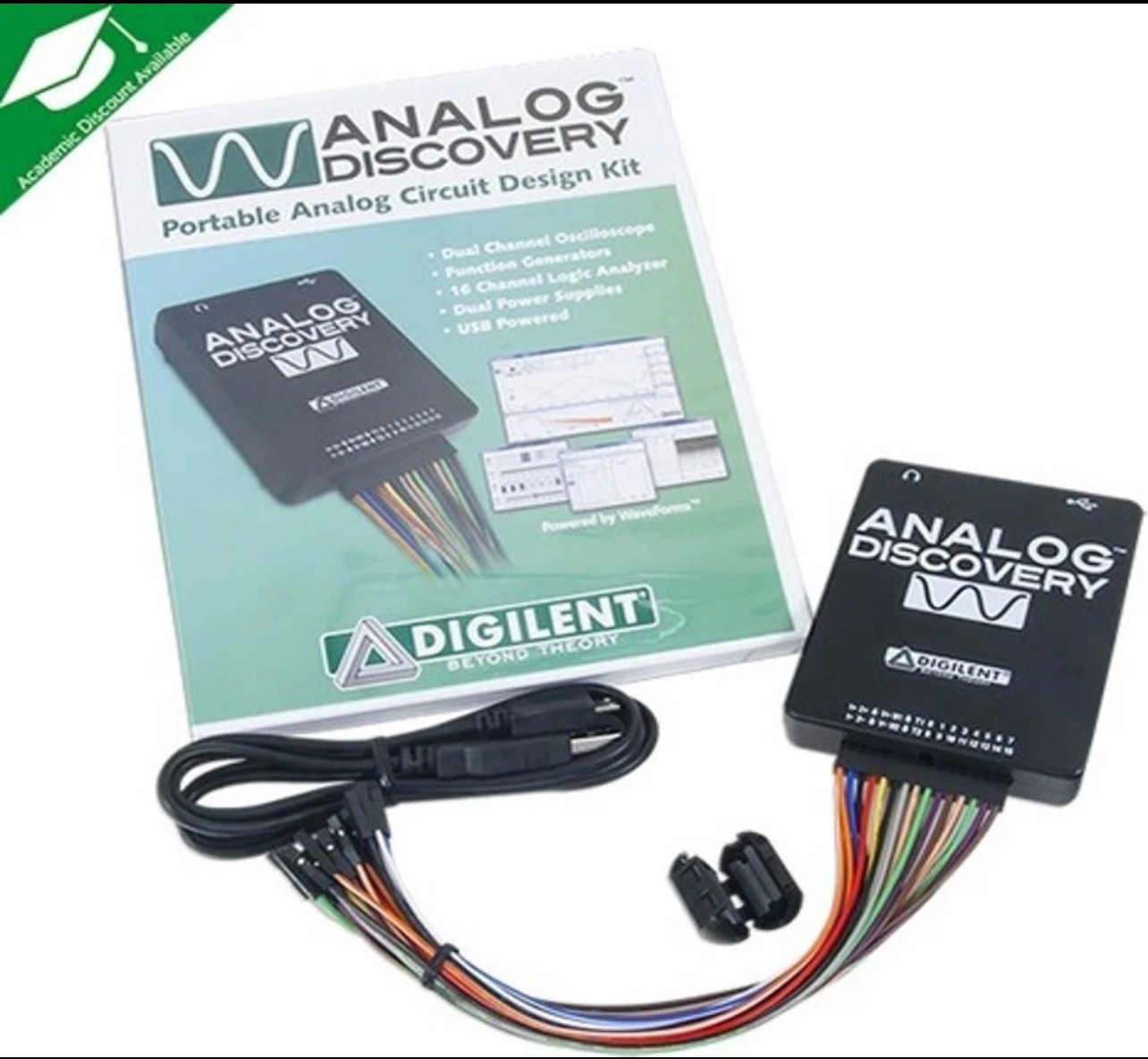

NewDigilent Analog Discovery Board
Digilent Analog Discovery™is a multi-function instrument that can measure, record and generate analog and digital signals. The small, portable and low-cost Analog Discovery was created so that engineering students could work with analog and digital circuits anytime, anywhere right from their PC.The Analog Discovery’s analog and digital inputs and outputs connect to a circuit using simple wire probes. Inputs and outputs are controlled using the free PC-based Waveforms software that can configure the Discovery to work as any one of several traditional instruments. Instruments include:

• Two channel oscilloscope (1MΩ, ±25V, differential, 14 bit, 100MS/s, 5MHz bandwidth);
• Two channel arbitrary function generator (22Ω, ±5V, 14 bit, 100MS/s, 5MHz bandwidth);
• Stereo audio amplifier to drive external headphones or speakers with replicated AWG signals;
• Two input/output digital trigger signals for linking multiple instruments (3.3V CMOS);
• Two power supplies (+5V at 50mA, -5V at 50mA).
• Single channel voltmeter (AC, DC, ±25V);
• Network analyzer – Bode, Nyquist, Nichols transfer diagrams of a circuit. Range: 1Hz to 10MHz;
• Spectrum Analyzer - power spectrum and spectral measurements (noise floor, SFDR, SNR, THD, etc.);
• Digital Bus Analyzers (SPI, I2C, UART, Parallel);

This is version 1 of Analog Discovery, which has thesame essential capabilitiesof the new version. If you are going to use it in basic labs like Circuits, Electronics, Digital Logic, Embedded Systems, etc, you will not see a big difference.

---

---

---
