New Magnetic Motor Starter 7.5hp single phase 230 volt Compressor electric motor:
$130.57

BRAND NEW!!

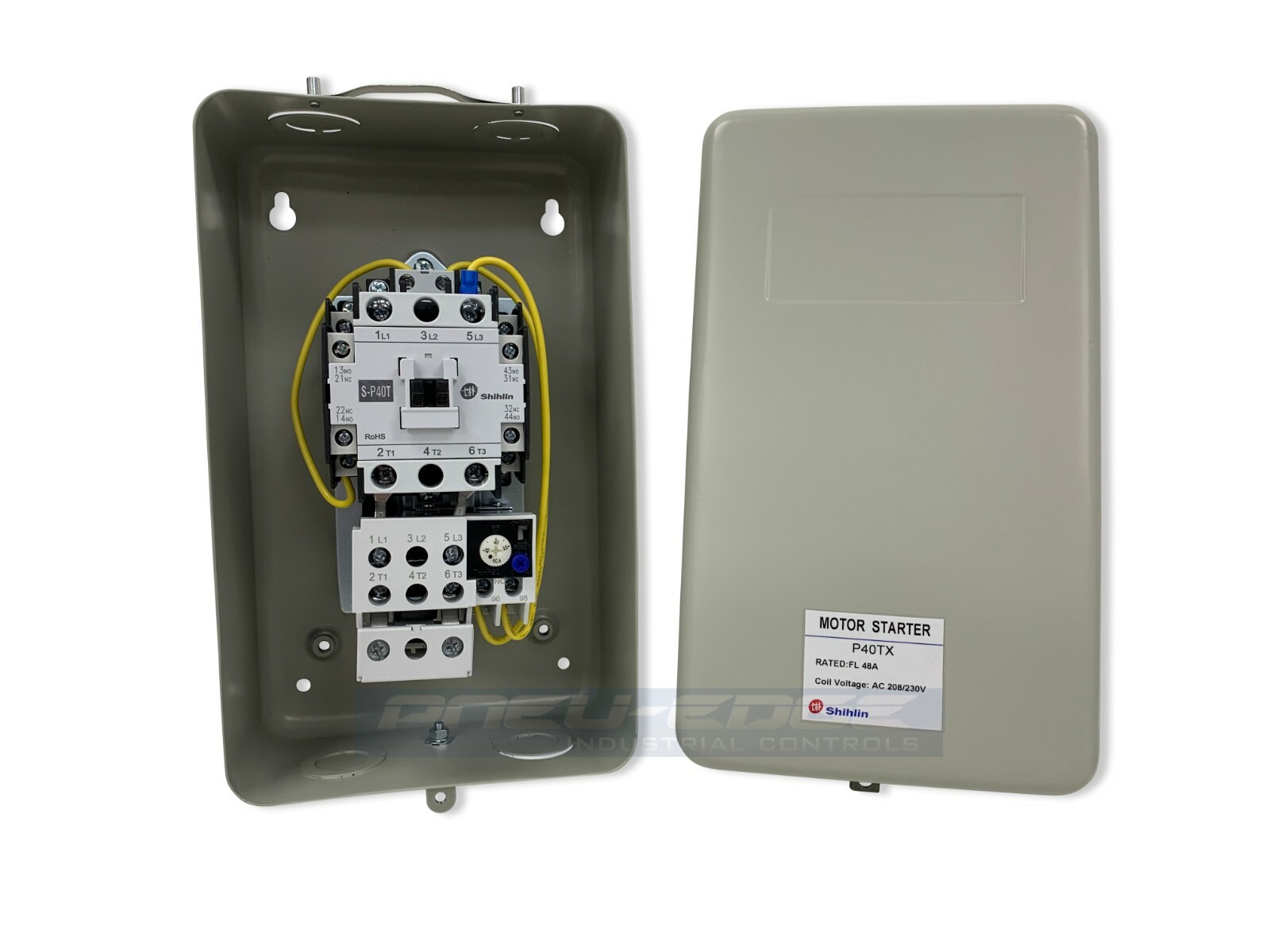

THIS IS A BRAND NEW IN THE BOX 7.5HP SINGLE PHASE MAGNETIC MOTOR STARTER.

THIS STARTER COMES EQUIPPED WITH AN ADJUSTABLE OVERLOAD RELAY. SIMPLY TURN THE DIAL TO YOUR REQUIRED AMPS FOR YOUR APPLICATION. RANGE IS BETWEEN32-48 AMPS.

ALSO COMES WITH BUILT IN SIDE MOUNTED AUXILIARY CONTACTS. NORMALLY OPEN & NORMALLY CLOSED TYPE.

STARTER COMES COMPLETE IN A METAL NEMA 1 ENCLOSURE, IN ADDITION TO 4 PUNCH OUTS FOR INCOMING AND OUTGOING WIRES. MANUFACTURER HAS SUPPLIED 4 RUBBER GROMMETS FOR WIRE PROTECTION.

RESET BUTTON LOCATED ON THE OVERLOAD. RESET CAN BE SET TO MANUAL OR AUTO RESET.

HP: 7.5

VOLTAGE: 220-240

AMPS: 40 AMP CONTACTOR

PHASE: SINGLE

ENCLOSURE: NEMA SIZE 1

ENCLOSURE DIMENSIONS: 8.75\" Tall 5.2\" wide 5.5 Depth

OVERLOAD: AMPERAGE DIAL BETWEEN32-48 AMPS

WHAT IS AN IEC ( International Electrotechnical Commission) MAGNETIC STARTER & WHAT PURPOSE DOES IT SERVE?

A motor starter is for the purpose of protecting a motor that has no thermal overload protection in the motor itself. Motor starters are typically for 3 phase larger motors. The starter consists of two devices, a contactor that completes the circuit to the motor and an overload relay that monitors the current the motor is drawing.The electronic type of overload relay monitors the current of the motor through inductive current transformers. Each leg of the motor passes through a current transformer built into the overload relay where an electronic circuit monitors the current draw of the motor and trips the relay if the motor draws more than the amperage setting of the adjustable dial on the relay which is set to the full load amperage of the motor.

WIRING DIAGRAM INCLUDED. CONTACT US FOR ADDITIONAL WIRING INSTRUCTIONS.

FOR AIR COMPRESSOR APPLICATIONS WITH PRESSURE SWITCH.

YOU HAVE 2 OPTIONS TO CONNECT YOUR LEADS FROM THE PRESSURE SWITCH/TOGGLE SWITCH.

L1 & #14 AUX CONTACT PORT OR L1 & COIL TERMINAL A2

EITHER OPTION WILL GIVE YOU THE SAME RESULT

PLEASECONTACT USWITH ANY QUESTIONS OR INQUIRIES ABOUT OUR PRODUCTS.
