On eBay Now...

New Sandvik Coromant CoroMill 327 Weldon Adapter 16mm 327-16B64EC-09 For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

New Sandvik Coromant CoroMill 327 Weldon Adapter 16mm 327-16B64EC-09:
$379.00

New Sandvik Coromant CoroMill 327 Weldon adapter/tool holder, part number 327-16B64EC-09.

Sandvik Coromant 327-16B64EC-09

Material ID: 5758774

EAN: 327 series

Weldon DIN6535-HB machine-side connection

16 mm machine-side connection diameter

CoroMill 327 size 09 tool-side connection

9 mm tool-side connection diameter

124.25 mm overall / functional length

Caroffere body

Axial concentric coolant entry

Axial inclined coolant exit

Maximum coolant pressure: 20 bar

Maximum speed: 40,000 RPM

Tightening torque: 4.3 Nm

Shank tolerance: h6

ISO 3338-2

Made in Türkiye

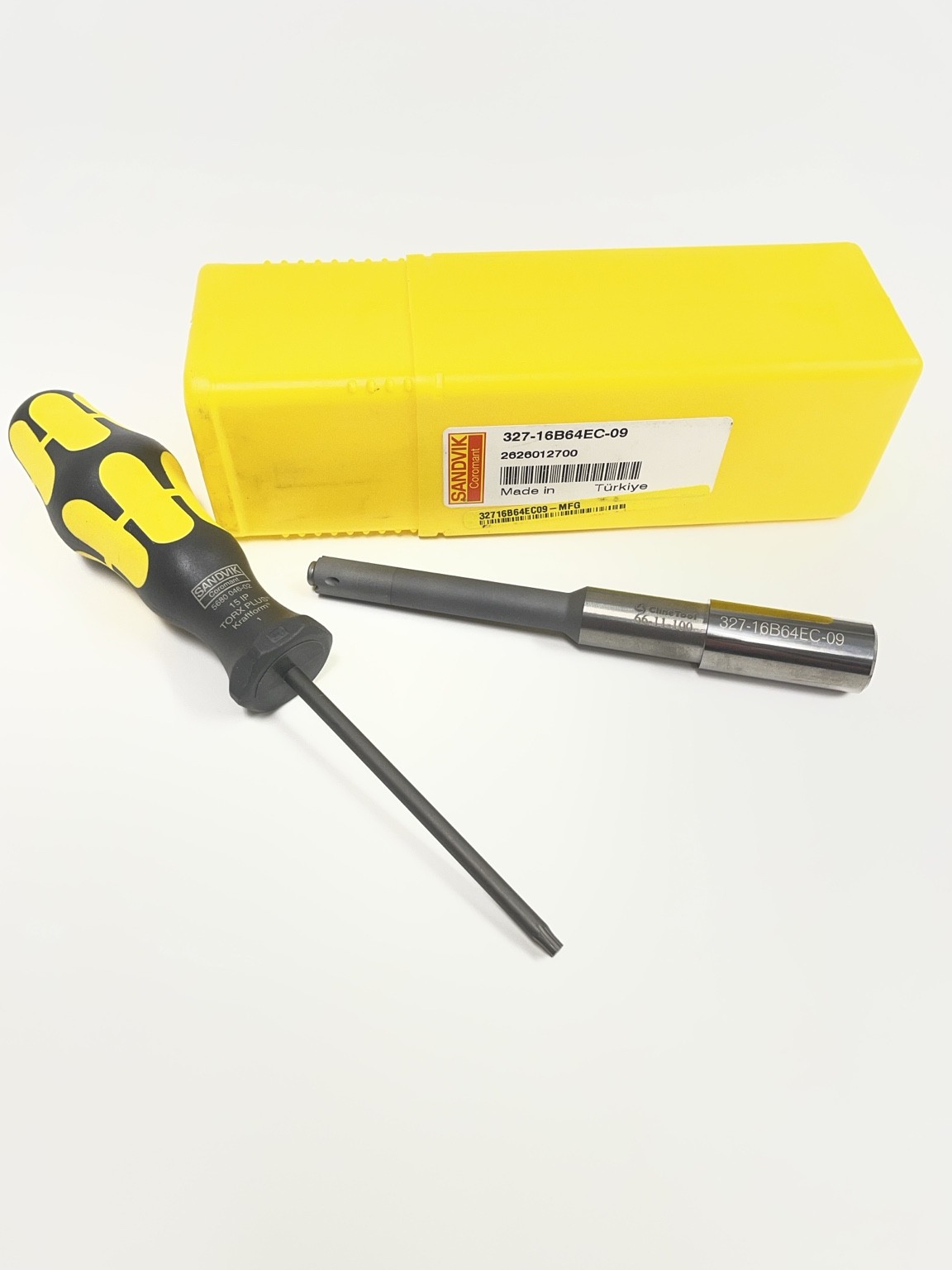

Includes the Sandvik holder, storage case, and screwdriver shown.

New condition. Packaging may show shelf wear from storage.

Free shipping included.

---

---

---
