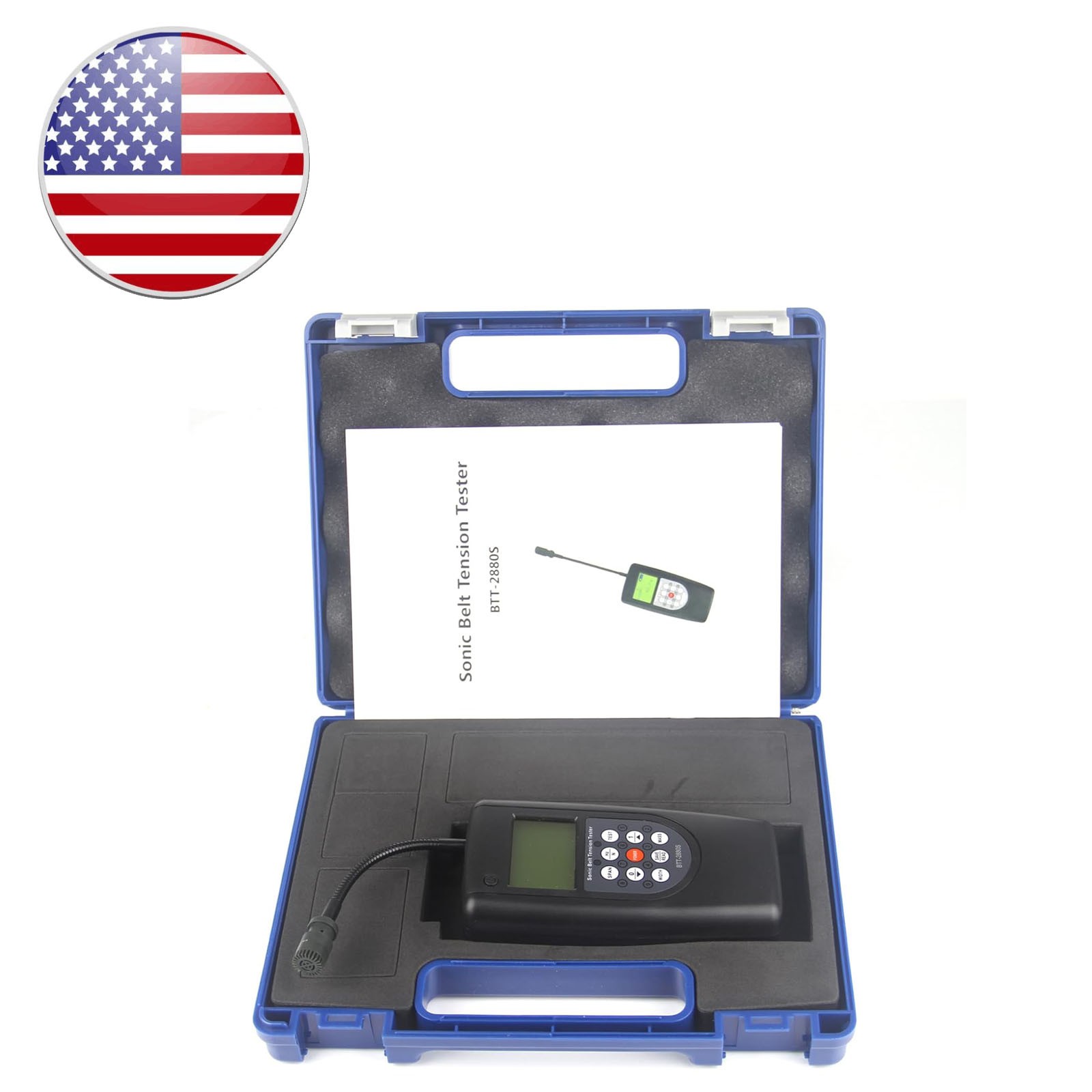

New Sonic Belt Tension Meter Tester BTT-2880S Belt Tension Gauge Testing Tool-US:
$268.00

New Sonic Belt Tension Meter Tester BTT-2880S Belt Tension Gauge Testing Tool-US

Product Description

It can be used to measure the vibration frequency (unit: Hertz) of the transmission belt when it is hit or moving fast.

Detachable detector.
Stores 20 set frequency readings.
Maximum frequency: 680 Hz.
Automatic shutdown, etc.

Specifications(Stand package don't include battery) Measuring range 10-680Hz Belt free strand length Max 9999 mm Belt width Max 999.9 mm/R Belt mass Max 999.9 g/m Precision ±1HZ<100HZ AND ±1%>100HZ Digital sampling accuracy < 1% Display accuracy 土1Hz Overall accuracy < 5% Operating temperature +10° C~ +50° C Transport temperature -5 ° C~-70° C Display LCD Measurement unit Hz/N Power supply 4×1.5V AAA Housing Plastic(ABS) Dimensions 140mmx7mm2x34mm Package size 248mmx206mmx52mm Principle

The calculation and measurement are based on the principle of "transverse vibration of string".The

tester will pick up the vibration of the belt and record it as a frequency.Enter the mass, width, and span

in the following formula.frequency

The relationship between and tension can be calculated in the following formula：

T=4xMxWxS2 xF2 x10-9
