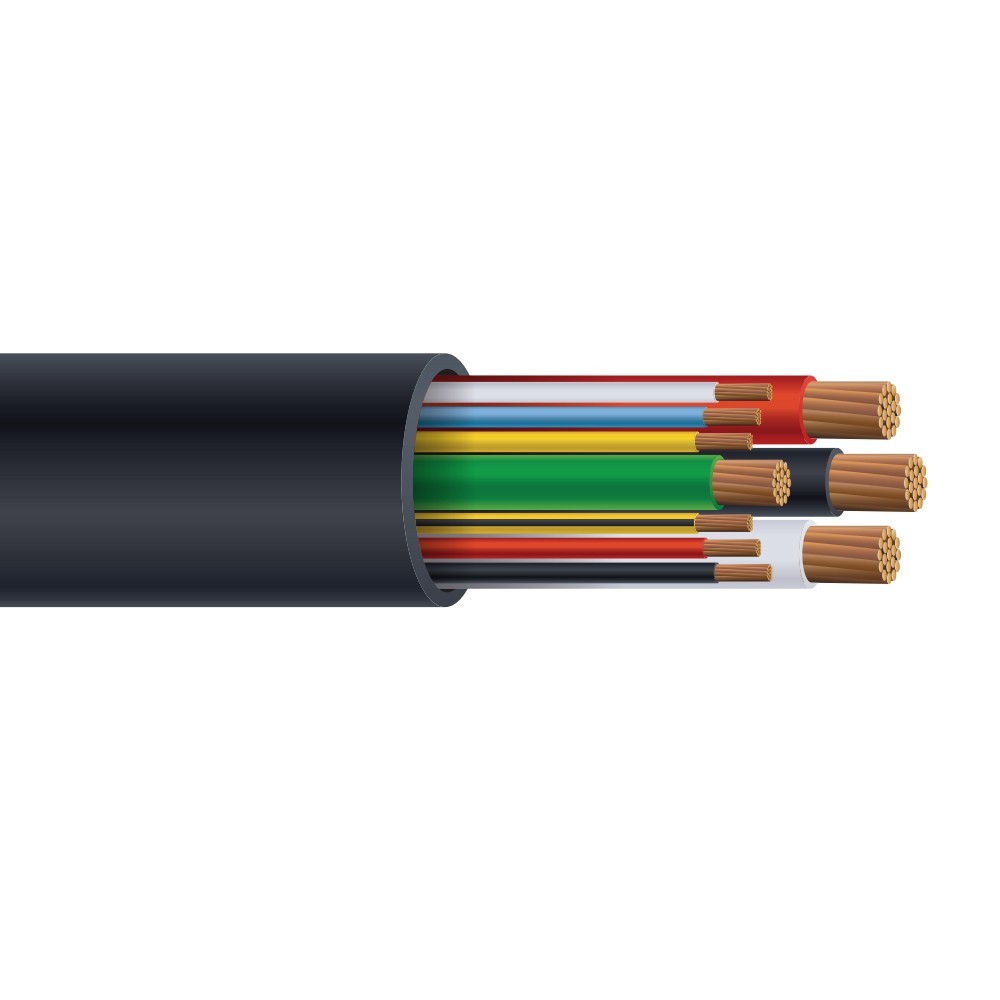

PER FOOT 3/3 With #8 Ground + 18/6 Copper UL Type TC-ER-JP Generator Cable Black 600V Click Thumbnails to EnlargeAPPLICATION

- 3/3 With #8 Ground + 18/6 all in one Generator cable for connecting a generator to a transfer switch. JP (Joist Pull) rated per the 2017 NEC 336.10(9). Black jacket and color coded inner conductors.

CONDUCTOR

- Element 1: Annealed bare copper Class C
-Element 2: Annealed bare copper Class K
- Element 3: Annealed bare copper Class C

INSULATION

- Element 1, 2 & 3: Polyvinylchloride (PVC) & Nylon

ASSEMBLY

- All 3 Elements or Conductors are cabled together with Non Hygroscopic Polypropylene fillers as required for a circular cross-section with a clear mylar binder tape and jacketed.

JACKET

- Sunlight resistant and direct burial approved PVC with ripcord rated 75°C wet or dry per UL 1277.

COLOR CODE

- Element 1: Black, White, Red
-Element 2: Black, Red, Yellow, Yellow/Black, Blue, White
-Element 3: Green Ground

STANDARDS

- UL Listed as TC-ER-JP per UL Standard 1277
-Rated 75°C wet or dry to meet UL 83 for THHN/THWN
-Meets cold bend test at -40°C
- ICEA S-73-532
-Meets UL 1581 & 1202 (FT-4) 70,000 BTU/HR & ICEA T-29-520 210,000 BTU/HR requirements
-REACH compliant per Regulation (EC) No 1907/2006 (197) Updated January 15, 2019
-Cable is suitable for use in Class I Division 2 hazardous locations
-Element 1 & 2 conductors pass UL VW-1 flame test, rated THWN/VW-1
-ASTM B3, B174, B801

DISCLAIMER

- Picture May Not Represent Actual Cable and is Only Used As a Representation Please Refer to The Specifications for Product Accuracy.

PRODUCT SPECIFICATIONSElement 1: Size AWG 3Element 1: Number of Conductors 3Element 2: Size AWG 18Element 2: Number of Conductors 6Element 3: Size AWG 8Element 3: Number of Conductors 1Jacket Thickness 0.080Overall Diameter 0.951Ampacity 100 AmpsRating 17kW - 24kWWeight (Lbs/1000ft) 865
