Peak Electronic Design Limited Semiconductor Analyzer DCA75 Japan:
$275.99

For U.S. Buyers

All Duties & Import Fees Included
The listed price already includes all import duties and customs-related fees.
U.S. buyers can purchase with confidence - there will be no additional charges upon delivery.

Description Multifunctional/high performance semiconductor analyzer
<Equipped with fully automatic automatic discrimination and curve tracer function>・Automatic identification of various semiconductors (2-pin, 3-pin devices)・Measure and display various electrical characteristics according to the measurement target・Connection of measurement probe is free ⇒ Correspondence between probe color and target terminal is displayed after automatic discrimination

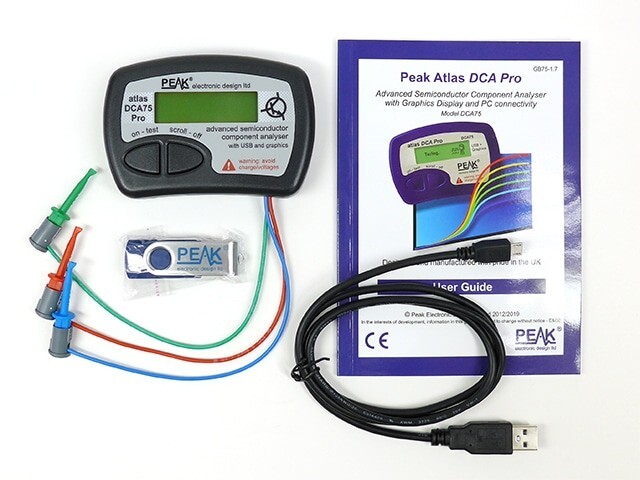

★Measurement results are displayed in an easy-to-understand manner along with electronic component symbols (icons).◆Transistor (bipolar/MOSFET/junction FET/IGBT)◆Diode, Zener diode, LED, two-color LED◆Three-terminal regulator IC (output voltage less than 8V type)◆Triac, thyristor, etc.★By connecting to a PC using the USB cable (included), electrical characteristic curves can be automatically traced (curve tracer function).・Bipolar transistor: P-N junction, Ic/Vce characteristic curves・MOSFET/JFET/IGBT: Id/Vds, Id/Vgs characteristic curves・Three-terminal regulator IC: Vout/Vin characteristic curveThe acquired raw data of each characteristic can be imported into charting software (Excel, etc.) as numerical data!■Set contentsMain unit, AAA alkaline batteries (set in main unit), micro USB cable (approximately 1 m), USB memory (dedicated software included)
*Dedicated software is compatible with Windows XP, Vista, 7, 8, and 10.*Please refer to the user guide for details.Please feel free to ask questions. Shipping Expedited Shipping 1-4 bussiness days Economy Shipping 11-17 bussiness days International Buyers - Please Note:

Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.
Thank you for your understanding.
