Pepperl+Fuchs MPP1HD Photoelectric Sensor / Honeywell MPT11HD Solid State Relay For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

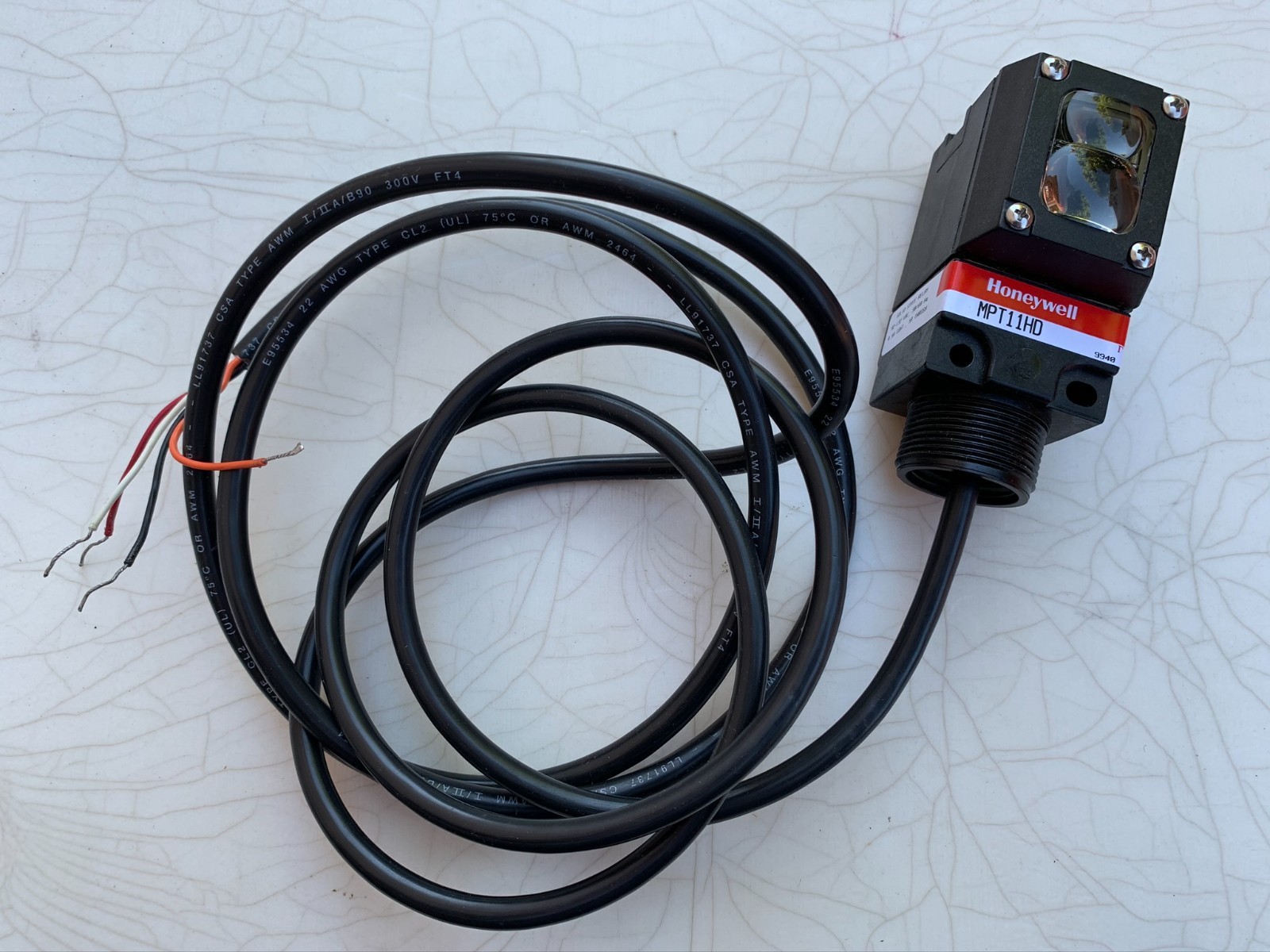

Pepperl+Fuchs MPP1HD Photoelectric Sensor / Honeywell MPT11HD Solid State Relay:
$195.00

MP Series Modular Photoelectric Sensor is a combination of Pepperl+Fuchs Polarized Retro-Reflective Head MPP-1HD and Honeywell Mini-Style Base MPT11HD

TechnicalData

SENSING RANGE 6 meters

LIGHT SOURCE Visible red

POLARIZATION FILTER Yes

HOUSING MATERIAL Polycarbonate

LENS Glass

FUNCTION INDICATOR 2 LEDs

OERATING MODE Light ON / Dark ON

RESPONSE TIME ≤ 10 ms

OUTPUT Solid state relay

LOAD CURRENT 5 mA-500 mA

LEAKAGE CURRENT ≤ 400 µA

INRUSH CURRENT 12 A for 16 ms

VOLTAGE DROP ≤ 1.2 VAC at rated

RESPONSE TIME ≤ 10 ms

SHORT CIRCUIT AND OVERLOAD PROTECTION No

REVERSE POLARITY PROTECTION No

SUPPLY VOLTAGE 92-132 VAC, 50/60 Hz

CURRENT CONSUMPTION ≤ 70 mA

ELECTRICAL CONNECTION 2-meter cable, PVC covered, 4-conductor,#18 AWG

---

---

---

PEPPERL+FUCHS MPP1HD 454428 NSMP

$275.00

---

Pepperl+Fuchs MPP1HD Photoelectric Sensor / Honeywell MPT11HD Solid State Relay

$195.00

---

Pepperl & Fuchs MPP1HD Retroreflective Sensor Harsh Duty Polarized 6m Range

$94.99

---
