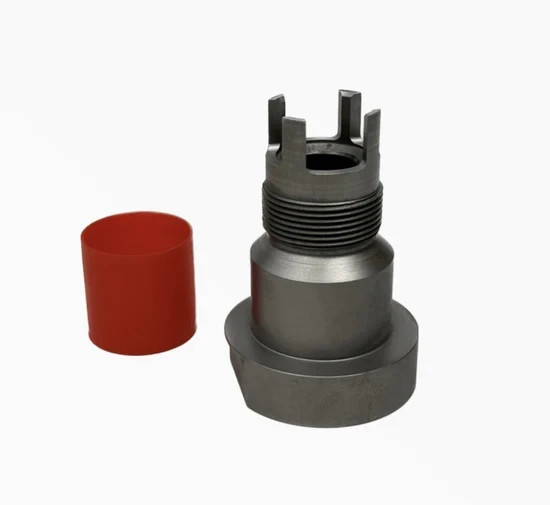

Piston Valve Assembly for Xtreme 180cc, Replacement for Graco 24B827:
$250.00

Piston Valve Assembly – Xtreme 180cc

Replacement for Graco 24B-827 | SKU: 58-3841

Restore proper sealing, pressure consistency, and reliable pump cycling with this Piston Valve Assembly, engineered specifically for Graco Xtreme 180cc lower pump platforms. Designed as a direct replacement for Graco 24B-827, this complete piston valve assembly replaces a critical wear component responsible for maintaining efficient material flow and dependable pump operation in high-pressure, continuous-duty industrial applications.

Precision-manufactured for durability and exact fit, this assembly is ideal for industrial coating contractors and equipment service technicians seeking OEM-level performance without replacing the entire lower pump assembly.

Key Features

• Direct Replacement for Graco 24B-827
  Precision-engineered to OEM specifications for proper fit and sealing.

• Complete Piston Valve Assembly
  Restores efficient pump cycling and pressure stability.

• Heavy-Duty Construction
  Built to withstand high pressure, abrasive coatings, and continuous-duty use.

• Improves Pump Performance
  Helps eliminate pressure loss, pulsation, and uneven material flow.

• Cost-Effective Service Solution
  Extends lower pump service life without a full rebuild.

Applications

Ideal for industrial coating contractors, manufacturing facilities, and maintenance teams servicing equipment used for:

• Protective and industrial coatings

• High-volume material transfer

• Continuous-duty pumping operations

• Preventive maintenance and pump TypePiston Valve AssemblyReplacement ForGraco 24B-827SKU / MPN58-3841ConditionNewApplicationXtreme Lower Pump AssembliesCompatible PlatformGraco Xtreme 180cc

  ---

  ---



  ---
