On eBay Now...Pure Sine Wave Inverter DC 48V Solar Hybrid Inverter Built-in 2 MPPT Controllers For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

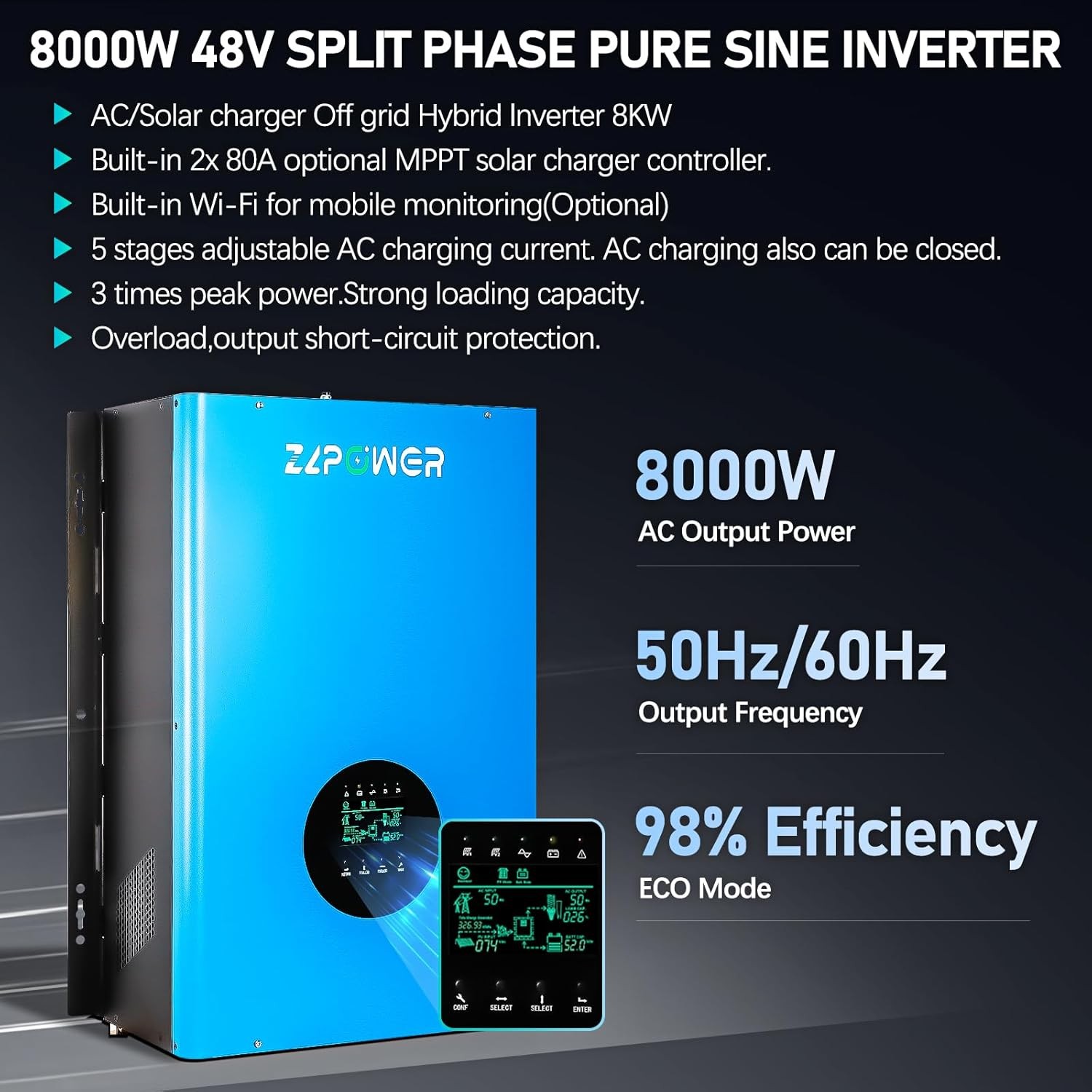

Pure Sine Wave Inverter DC 48V Solar Hybrid Inverter Built-in 2 MPPT Controllers:
$1099.00
About this item About ZLPOWER
- GS Series Inverter
- Automatic Generator Starting (AGS)when low voltage or no utility.
- Support 2x80A MPPT Solar Charger Controller.
- Support for 8 kinds of battery voltage selection ( lithium LiFePO4, gel, AGM and lead Acid batteries）.
- 5 stages adjustable AC charging current. AC charging also can be closed.
- Powerful Charge Rate Up to 240Amp, Selectable From 0%-100%.
- Built-in transfer switch and support for battery charge, backup or off grid power solutions.
- AC/support for Battery Priority Mode, Designates the Inverter-Preferred UPS Configuration.
- 4-step Intelligent support for Battery Charging, PFC for Charger.
- Smart fan adjustment(The fan automatically adjusts the wind speed according to the ambient temperature).
- Inverter mode: the neutral and the earth joined
- Line mode: the neutral and the earth separated
- Use a Relay to realize the function.
- LCD Panel and Configuration Switch
- The fan automatically adjusts the wind speed according to the ambient temperature
- 48 VDC input, 240V input VAC to 120/240V AC split phase output This low frequency unit is a combination of an DC to AC power inverter, support for battery charger and AC auto transfer switch into one complete system
- Continuous Output Power: 12000 Watts
- Surge Rating: 36000 Watts
- Output Wave Form: Pure Sine Wave
- Output Voltage: 120/240Vac
- Nominal Efficiency: 90% (Peak)
- Line Mode Efficiency: >99%
- Output Frequency: 50Hz / 60Hz ± 0.3Hz
- Typical Transfer Time: 10ms
- Nominal DC Input Voltage: 48.0Vdc
- Support for Low Battery Alarm: 42.0Vdc-44.0Vdc
- Support for Low battery Trip: 40.0Vdc-42.0Vdc
- High Voltage Shut-down: 64.0Vdc
- Support for Low battery Shut-down Recovery:44.0 ± 0.8Vdc
- Support for High battery Shut-down Recovery:62.0 ± 0.8Vdc
- Idle Consumption: 23 Watts
- Nominal Input Frequency:50Hz / 60Hz (Auto detection)
- Output Voltage: Based on the AC output voltage gear you set
- Support for Battery Initial Voltage for Start Up: 40-62.8V
- 12VDC model: Max 90A
- 24VDC model: Max 70A
- 48VDC model: Max 80A
- Bat. V ≥15.5Vdc, Fault, Buzzer alarm for 12Vdc
- Bat. V ≥31.0Vdc, Fault, Buzzer alarm for 24Vdc
- Bat. V ≥61.0Vdc, Fault, Buzzer alarm for 48Vdc
- Important Safety Warning
2. Wireless Router Connection
2.1 Download APP.Scan the Code and download the APP
2.2 Connect Wi-Fi Datalogger
- 2.3 Network Setting
- 3. Create Account And Add Datalogger
3.1 Create Account
- 3.2 Add Datalogger
- Earthing(ABYC standard)
LCD OPERATION
Smart fan Adjustment
Low Frequency Split Phase
Inverter Output Specifications
Inverter Input Specifications
Charger Specifications
