RG-316 M17/113-RG316 Flexible RF Coaxial Cable ( 1,000 Meter ) For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

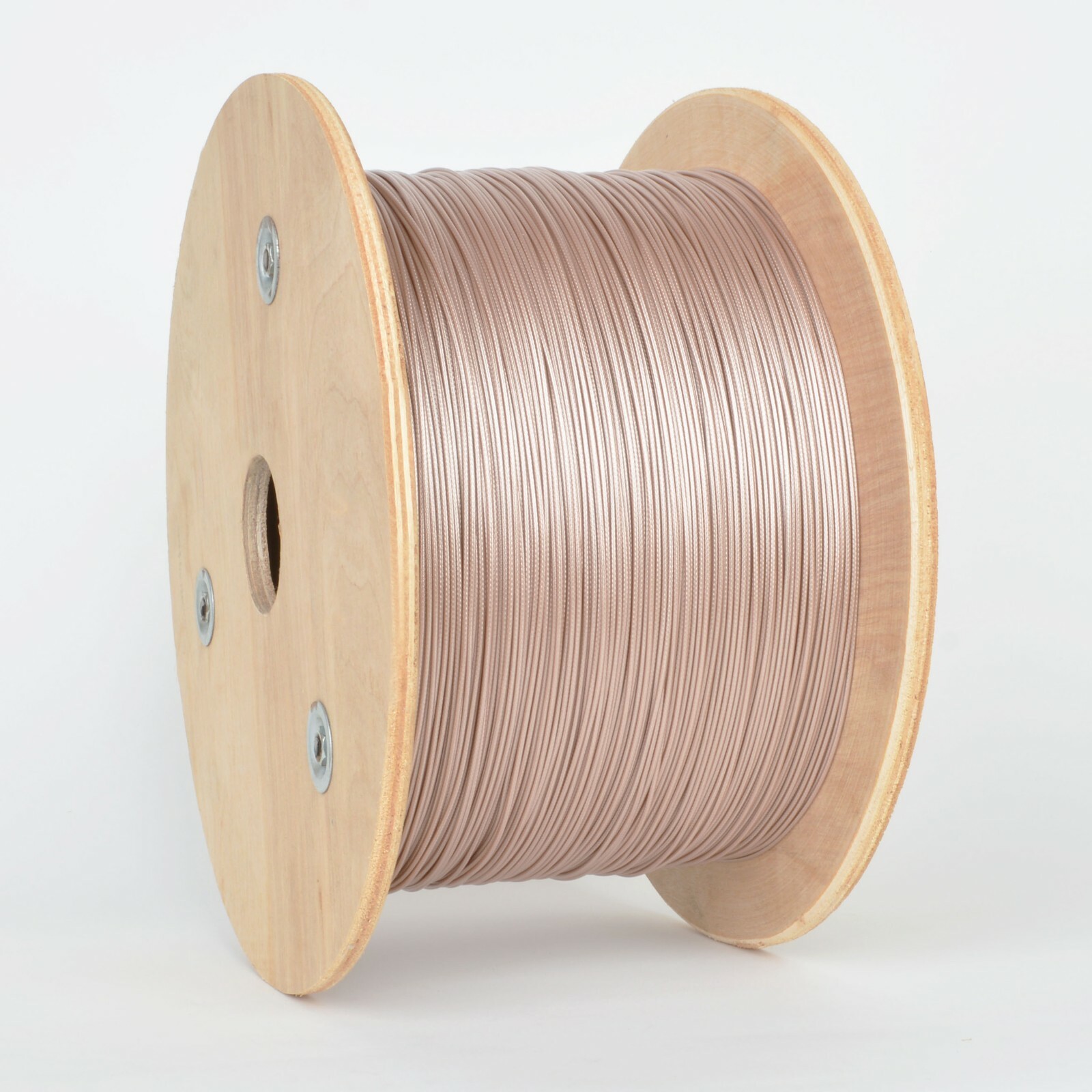

RG-316 M17/113-RG316 Flexible RF Coaxial Cable ( 1,000 Meter ):
$1350.00

M17/113-RG316 Flexible Coaxial Cable RG-316 ( \"1,000 Meter\" )

MIL-C-17 Standard RG-316Single Braid Shield Flexible Coaxial Cable

Composition of RG-316 Cable

Class of Cable

Solid PTFE Dielectric Coaxial Cable

Cable Part Name

RG-316

Flex Ability

Flexible

Impedance

50 Ohm

Center Conductor Type

7 Stranded

Silver Plated Copper Clad Steel Wire

Dielectric Type

Solid PTFE

Velocity of Propagation

70.0 %

Shield Type and No. ofShield Layer

Round Wire Single Braid Shield Layer

Jacket Diameter

2.50 mm ( 0.098 inch )

Jacket Material

FEP

Max. Frequency

3.0 GHz

Operating Temperature

- 55℃ ~ 200℃

MIL-C-17

---

---

---

RG316 Coax Cable sold by the foot, Harbour Industries M17/113-RG316 Brown Rev G

$1.29

---

RG-316 M17/113-RG316 Flexible RF Coaxial Cable ( 1,000 Meter )

$1350.00

---

RG316 Coax Cable sold by the foot M17/113-RG316 Brown

$1.29

---
