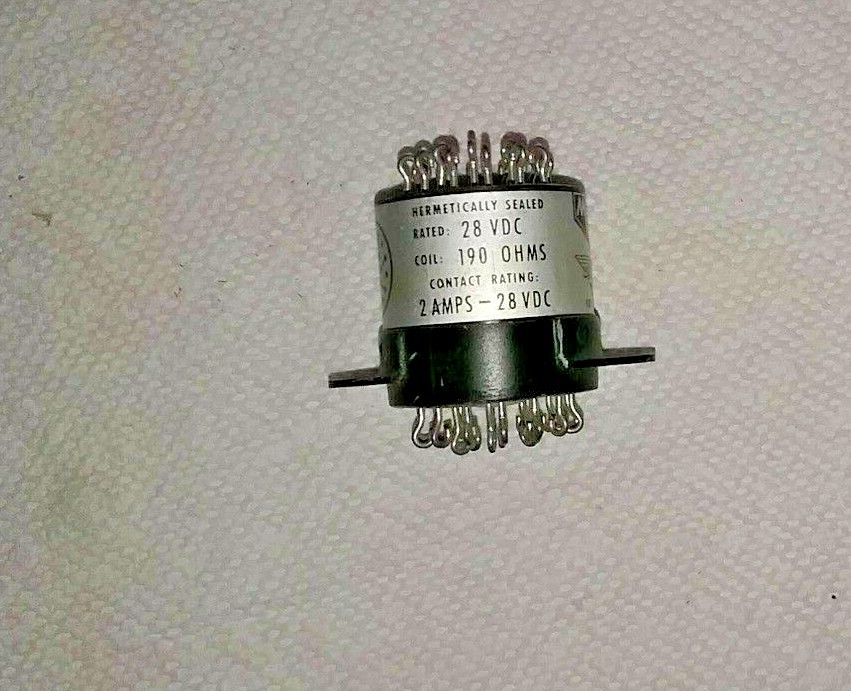

Relay 12 pole double throw 2 amp 28 Volt DC coil Micropoise Part # 646-6100:
$15.00

Relay 12 pole double throw 2 amp, 28 Volt DC coil, Micropoise Part # 646-6100 Coil resistance 190 Ohm. Diameter 1.1, length of can 1.1, length with terminals 1.6, distance between mounting holes 1.75 inches.

---

---

---
