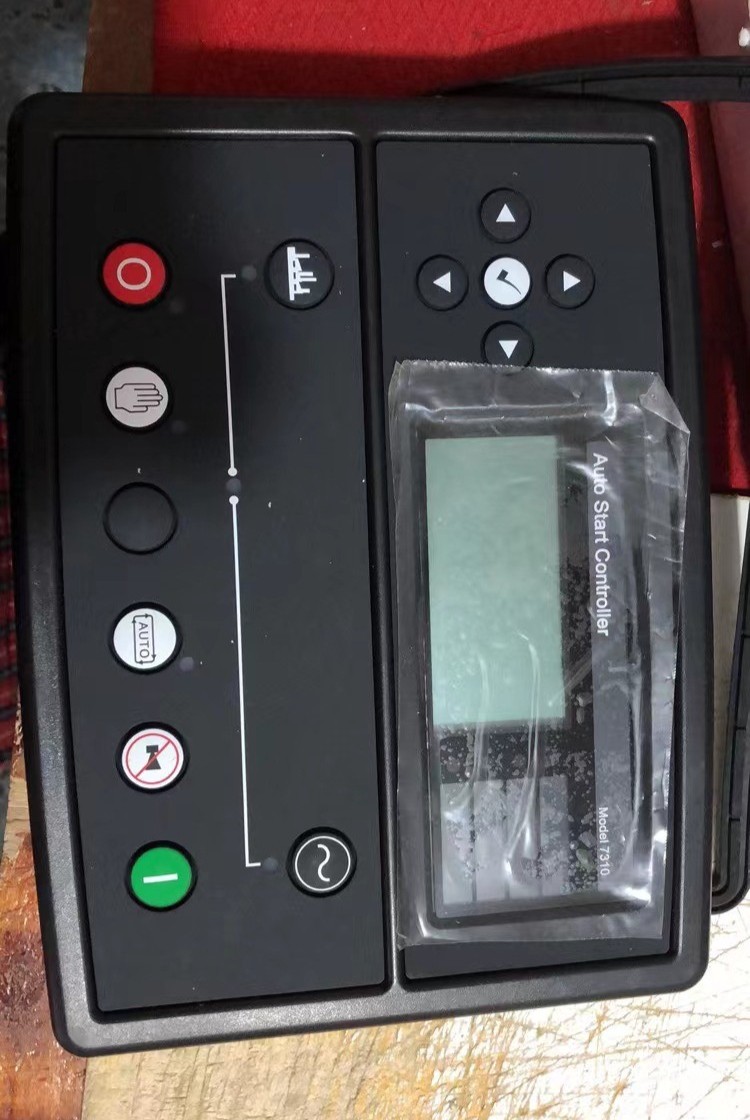

Replace DSE7310MKII Auto Start Control Module NEW Deep Sea Electronics DSE7310:
$277.59

The DSE7310 MKII is a powerful, new generation auto start genset control module with a highly sophisticated level of new features and functions, presented in the usual DSE user-friendly format. Suitable for a wide variety of single, diesel or gas Gen-set applications. Featuring a new Dual Core main processor and extended memory, the module provides faster and more powerful processing power, returning faster operational responses on intensive applications and increased functionality, with data logging facility. Monitoring an extensive number of engine parameters, the module will display warnings, shutdown and engine status information on the back-lit LCD screen, illuminated LED\'s, remote PC\'s and via SMS text alerts (with external communication device).
OVERALL SIZE 245 mm x 184 mm x 51 mm (9.6\" x 7.2\" x 2.0\")
PANEL CUTOUT SIZE 220 mm x 160 mm (8.7\" x 6.3\")
MAXIMUM PANEL THICKNESS 8.0 mm (0.3\")
DC SUPPLY CONTINUOUS VOLTAGE RATING
8 V to 35 V Continuous 5 V for up to 1 minute CRANKING DROPOUTS Able to survive 0 V for 100 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries. LEDs and backlight will not be maintained during cranking. MAXIMUM OPERATING CURRENT 510 mA at 12 V, 240 mA at 24 V MAXIMUM STANDBY CURRENT 330 mA at 12 V, 160 mA at 24 V CHARGE FAIL/EXCITATION RANGE 0 V to 35 V
GENERATOR & MAINS (UTILITY) VOLTAGE RANGE 15 V to 415 V AC (Ph to N) 25 V to 719 V AC (Ph to Ph) FREQUENCY RANGE
3.5 Hz to 75 Hz
MAGNETIC PICK UP VOLTAGE RANGE +/- 0.5 V to 70 V FREQUENCY RANGE 10,000 Hz (max)
