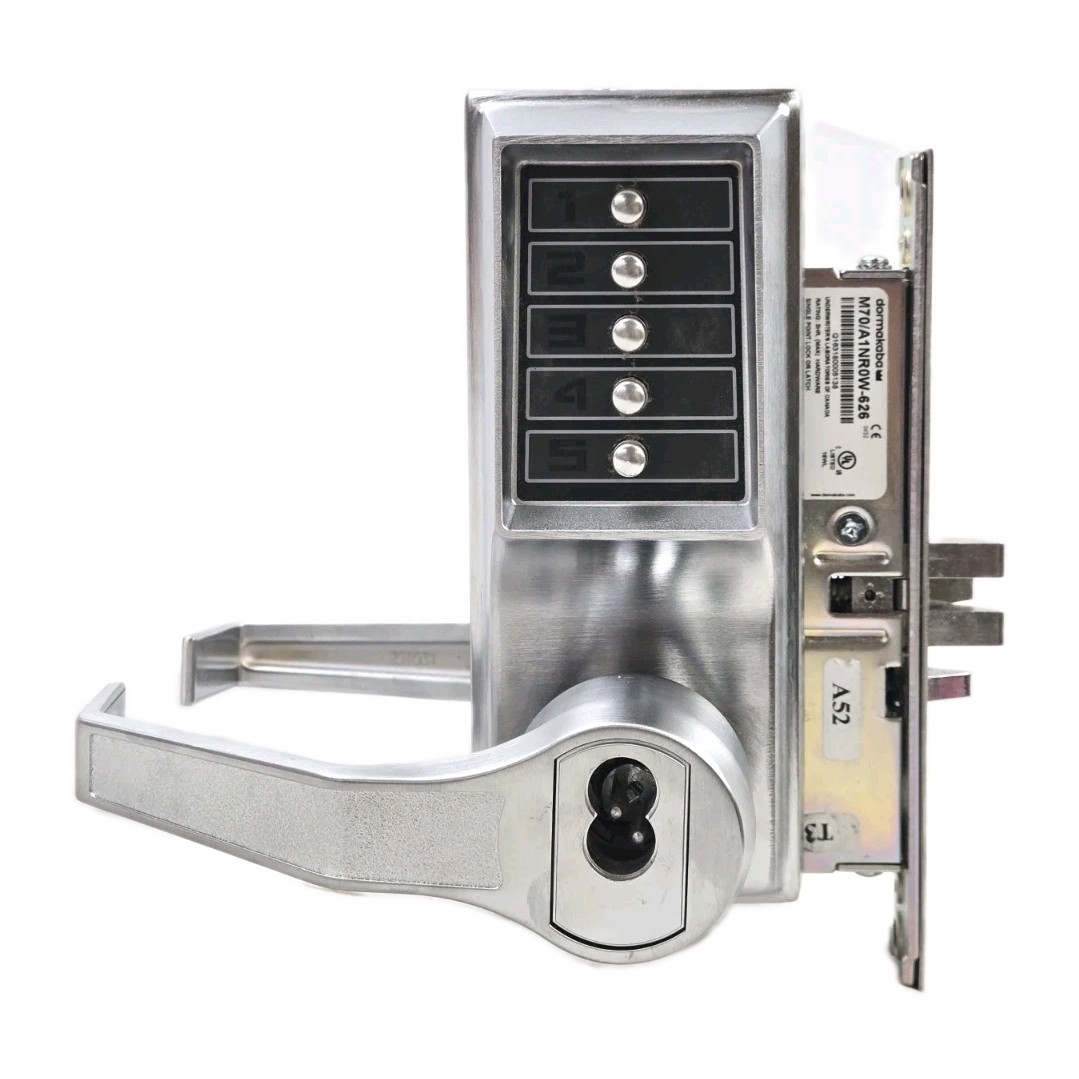

SIMPLEX Mechanical Push Button Lockset: W/ Lever ADA Compliant, Chrome, New OB:
$499.00

Item is new open box. Never installed, excellent condition. Missing original box. Includes everything shown in the photos, please refer to photos. Ships priority mail for free with care!

Simplex Pushbutton Mortise Lock w/ Lever Combination Entry-SFIC Best-Passage-Lockout Satin Chrome LHR - LR8146B-26D-41

SIMPLEX Mechanical Push Button Lockset: ADA Compliant, Chrome, SIMPLEX

Item 31NG63Mfr. Model LR8146B26D41

Mechanical keyless access locksets open when an authorized code is entered manually on the push buttons. These locksets do not require connection to an external power source, which makes them easy to install on existing doors

The Simplex 8100 Mechanical pushbutton lock, with mortise locking device options and lever handle, provides exterior access by combination, while allowing free egress.

Numeric Keypad is vandal resistant with solid metal pushbuttons

No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements

Easy-to-manage single access code for all users

Lock is easily programmed via keypad without removing lock from the door

Locking Device: Mortise with 3/4 in. two-piece anti-friction latch

Must specify handing when ordering. Available for Left Hand, Left Hand Reverse, Right Hand, and Right Hand Reverse.

Operation Modes include Pushbutton Access, Passage, and Lockout

Passage allows access without using the lock entry code. Feature activated from the inside with a thumbturn or key.

Lockout disables the lock from the inside so that the entry codes cannot be used to gain access. Access is permitted using key override.

Must specify Key Override option when ordering.

Key Override options include SFIC Best and Equivalents (6 or 7-pin length) core not included, LFIC Corbin Russwin (6-pin length) core not included, LFIC Medeco/ASSA/Yale/Abloy (5 or 6-pin length) core not included, LFIC Sargent (core not included), or LFIC Schlage (core not included).

Cast front housing, unified trim plate, fixed ADA Compliant levers

2-3/4 in. Backset

Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation

Door Thickness: 1-3/8 in. to 2-1/4 in.

Minimum Stile Recommended: 5 in.

Strike: 4-7/8 in. x 1-1/4 in. x 1/4 in. Deadbolt/Latch mortise strike plate

Supplied with the Lock: Installation manual, full-scale template, and required installation hardware.

Specify finish when ordering.

Accessibility Standard: Americans with Disabilities Act (ADA) fixed ADA-compliant levers

Fire Rating: 3-hour UL/ULC fire rating for A-labeled doors

Durability: Weather resistant
