On eBay Now...SKF 7211 CD/PA9ADGA Angular Contact Bearing Pair 55x100x21mm 15° ABEC9 2 Pcs For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
SKF 7211 CD/PA9ADGA Angular Contact Bearing Pair 55x100x21mm 15° ABEC9 2 Pcs:
$385.84
HIGH QUALITY
Major Brands, Trusted Manufacturers
FAST SHIPPING
Orders shipped out same day, expedited delivery
LOW PRICES
The most competitive pricing, guaranteed

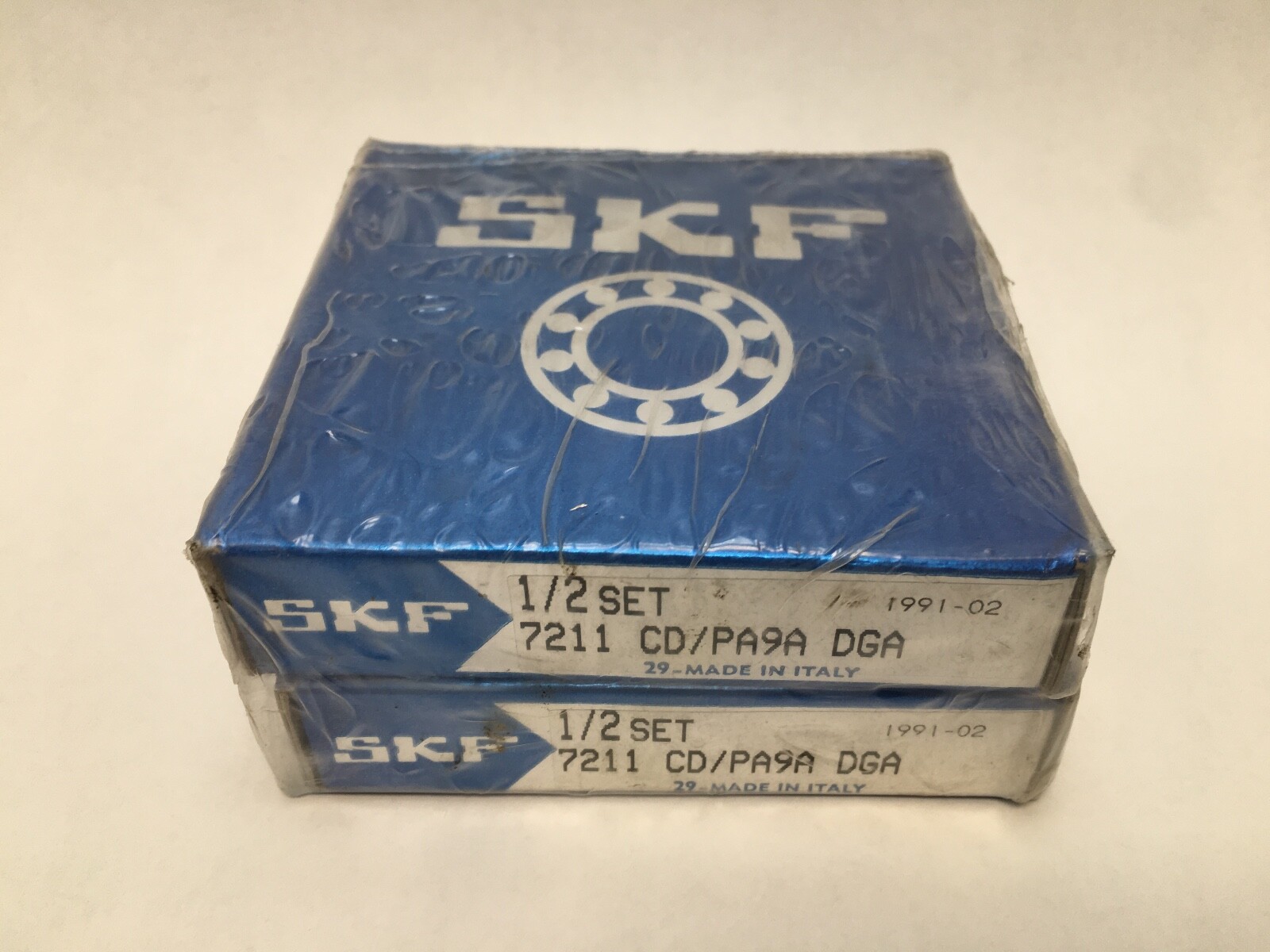

SKF 7211 CD/PA9ADGA Angular Contact Bearing Pair 55x100x21mm 15° ABEC9 2 Pcs
- What this part is:
Large In-Stock Inventory: New industrial, bearings, power transmission, and automation parts.
Same-Day Shipping: Orders ship quick with next-day and international options available.
Expert Support: Cross-referencing and part location ensuring you get the exact match, fast.
Direct Pricing: Get new OEM components at highly competitive rates.
- PayPal / PayPal Credit
- Credit card or debit card
- Apple Pay
- Google funds
- Payment upon pickup
- Wire transfer facilitated by (select categories only)
- gift card or voucher or Bucks
- Bearings
- Power Transmission Parts
- Hydraulic / Pneumatic
- MRO Products
- PLC / Electromechanical
- Most Industrial Supplies
SKF 7211 CD/PA9ADGA is a matched set of two super-precision, high-capacity D design single row angular contact ball bearings, universally matchable for back-to-back, face-to-face or tandem mounting. Unit Quantity: 2 Pcs, one factory-matched pair.
Decoding the designation:7211 — ISO 72 series, 55 mm bore.
CD — 15° contact angle, SKF high-capacity D internal design.
PA9A — SKF tolerance class: ISO P2 dimensional and running accuracy, ABEC 9.
DG — matched set of two bearings, universally matchable in any arrangement.
A — extra light preload.
Specifications:Bore Diameter: 55 mm. Outside Diameter: 100 mm. Width: 21 mm per bearing. Total Width: 42 mm (pair). Contact Angle: 15°. Precision Class: ABEC 9 / PA9A. Preload: Extra light. Number Of Rows: 1. Rolling Elements: Ball. Closure Type: Open.
Dynamic Load Rating: 90,400 N (pair). Static Load Rating: 85,000 N (pair). Limiting Speed: 11,340 rpm grease; 17,820 rpm oil-air (back-to-back pair). Single bearing: 14,000 rpm grease; 22,000 rpm oil-air. Axial Stiffness: 72 N/µm. Ball Diameter: 14.288 mm. Number of Balls: 15 per bearing.
Dimensions and mounting:Shaft Abutment Diameter (da min): 64 mm. Housing Abutment Diameter (Da max): 91 mm. Fillet Radius (ra max): 1.5 mm. Chamfer (r1,2 min): 1.5 mm. Oil Nozzle Position (dn): 72.6 mm. Reference Grease Quantity: 8.6 cm³ per bearing.
Compatibility and replacement:Cross-references, all 55 x 100 x 21 mm with 15° contact angle: FAG B7211-C-T-P2H-DUL (light preload), NSK 7211CTYNDULP2 (light preload, polyamide cage), Fafnir 2MMV211WI CR DUL (light preload). Designation forms: 7211 CD/PA9ADGA, 7211CDPA9ADGA, 7211CD/PA9A DGA.
Frequently asked questions:How many bearings are in the SKF 7211 CD/PA9ADGA set?Two bearings, one factory-matched pair, universally matchable for any arrangement.
What contact angle and preload does the 7211 CD/PA9ADGA have?Contact Angle: 15° (CD). Preload: extra light (A).
What size and precision class is the 7211 CD/PA9ADGA?55 mm bore, 100 mm outside diameter, 21 mm width per bearing. Precision Class: ABEC 9 / PA9A (ISO P2).
