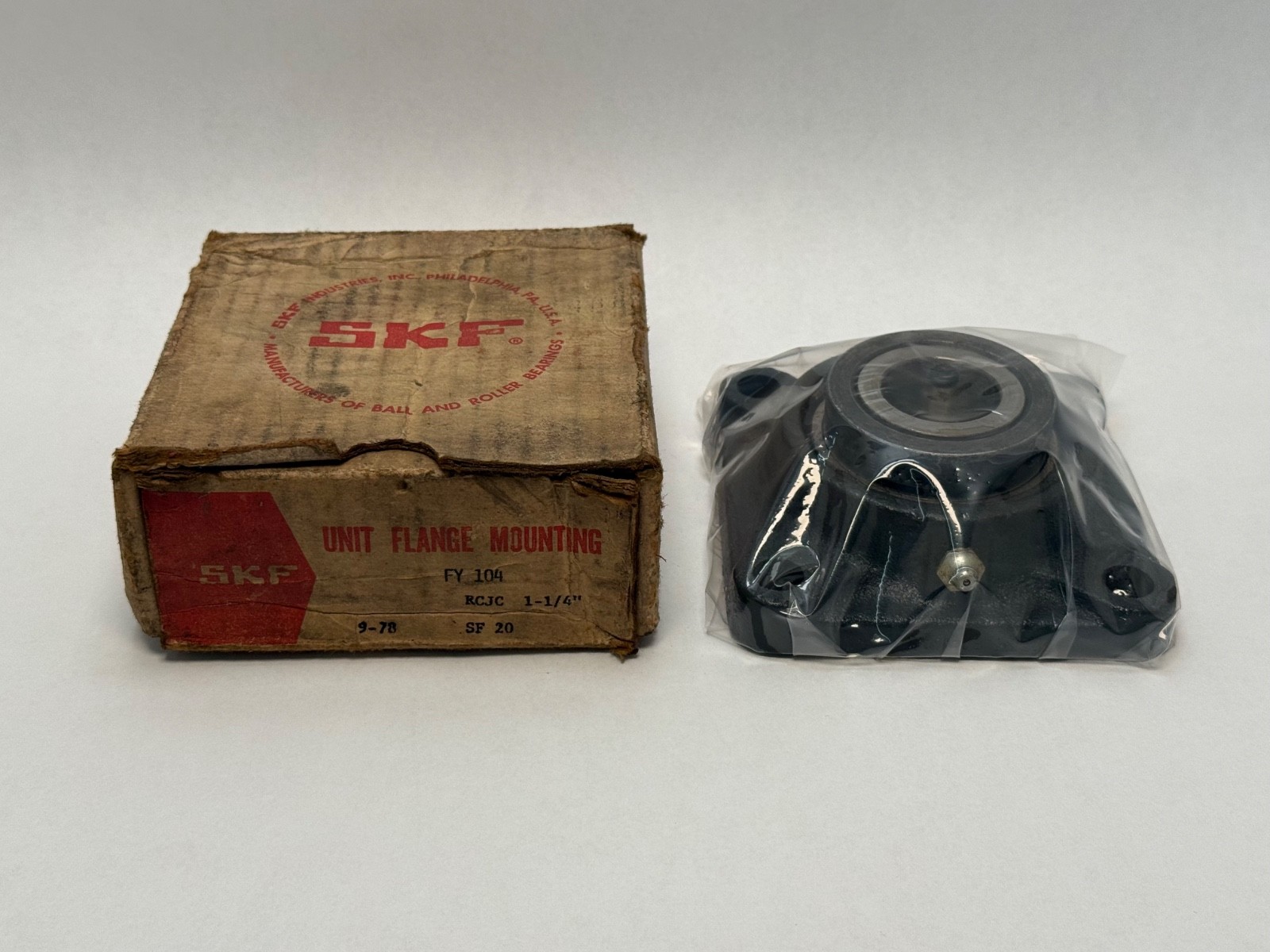

SKF FY104 Flange Mount Bearing 1-1/4" ID FY-104 RCJC-1-1/4 4-Bolt:
$49.99
HIGH QUALITY
Major Brands, Trusted Manufacturers
FAST SHIPPING
Orders shipped out same day, expedited delivery
LOW PRICES
The most competitive pricing, guaranteed
SKF FY104 Flange Mount Bearing 1-1/4" ID FY-104 RCJC-1-1/4 4-Bolt
- What this part is:
Large In-Stock Inventory: New industrial, bearings, power transmission, and automation parts.
Same-Day Shipping: Orders ship quick with next-day and international options available.
Expert Support: Cross-referencing and part location ensuring you get the exact match, fast.
Direct Pricing: Get new OEM components at highly competitive rates.
- PayPal / PayPal Credit
- Credit card or debit card
- Apple Pay
- Google funds
- Payment upon pickup
- Wire transfer facilitated by (select categories only)
- gift card or voucher or Bucks
- Bearings
- Power Transmission Parts
- Hydraulic / Pneumatic
- MRO Products
- PLC / Electromechanical
- Most Industrial Supplies
SKF FY104 four-bolt square flange ball bearing unit, current designation FY 1.1/4 TF. Bore Diameter: 1.2500 in (31.750 mm). Housing Style: Four-bolt square flange, grey cast iron. Locking Method: Setscrew. Overall Width: 46.4 mm. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Cylindrical. Lubricant: Grease. Series: FY. Base Number: FY 1.1/4 TF. Unit Quantity: 1 Pc. One complete flange unit: housing, insert bearing, seals and setscrews.
Decoding the designation:FY — SKF's square flange ball bearing unit family.
1.1/4 — shaft size in inches.
TF — grey cast iron square flange housing.
FY104 and FY-104 — older forms of the same designation.
RCJC-1-1/4 — Schaeffler-scheme cross carried on the carton.
Specifications:Dynamic Load Rating: 25,500 N. Static Load Rating: 15,300 N. Limiting Speed: 5,300 rpm on a shaft ground to h6. Bore Diameter: 1.2500 in (31.750 mm). Locking Method: Setscrew, 5/16-24 UNF. Relubrication: Grease fitting, 1/4-28 UNF SAE-LT. Material: Grey cast iron housing, bearing steel insert. Set screw thread: 5/16-24 UNF. Hexagon key size for the set screw: 3.969 mm. Recommended tightening torque: 6.5 N·m. Grease fitting: 6.5 mm head sphere, 7 mm hexagon.
Dimensions and mounting:Four bolt holes on a square flange. Bolt hole centre distance: 92 mm. Bolt hole diameter: 14 mm. Recommended attachment bolt: 12 mm, or 0.5 in. Centring recess diameter: 106.4 mm, depth 3.2 mm. Overall length across the flange: 118 mm. Overall Width: 46.4 mm. Top external diameter: 87 mm. Base external diameter: 95 mm. Dowel pin distance: 106 mm, offset 24.5 mm axially, 4 mm recommended pin diameter. Inner ring width: 42.9 mm. Distance from the locking device side face to the raceway centre: 25.4 mm.
Compatibility and replacement:SKF FY 1.1/4 TF — the current SKF designation for this unit. INA RCJC 1-1/4 — related four-bolt cast iron flange unit, as marked on the carton. A four-bolt flange unit matches on shaft size and bolt circle: 1-1/4 in on 92 mm bolt centres with 14 mm holes. Number forms: FY104, FY-104, FY 1.1/4 TF, FY1.1/4TF, RCJC-1-1/4.
Frequently asked questions:What is the bolt hole spacing of the SKF FY104?Bolt hole centre distance: 92 mm. Bolt hole diameter: 14 mm.
What are the load ratings of the SKF FY104?Dynamic Load Rating: 25,500 N. Static Load Rating: 15,300 N.
What is the current SKF designation of the FY104?FY 1.1/4 TF.
