SPI 22-298-4 Deluxe Dial Indicator, 0.25" Max Measurement, 0-25-0 Dial Reading For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

---

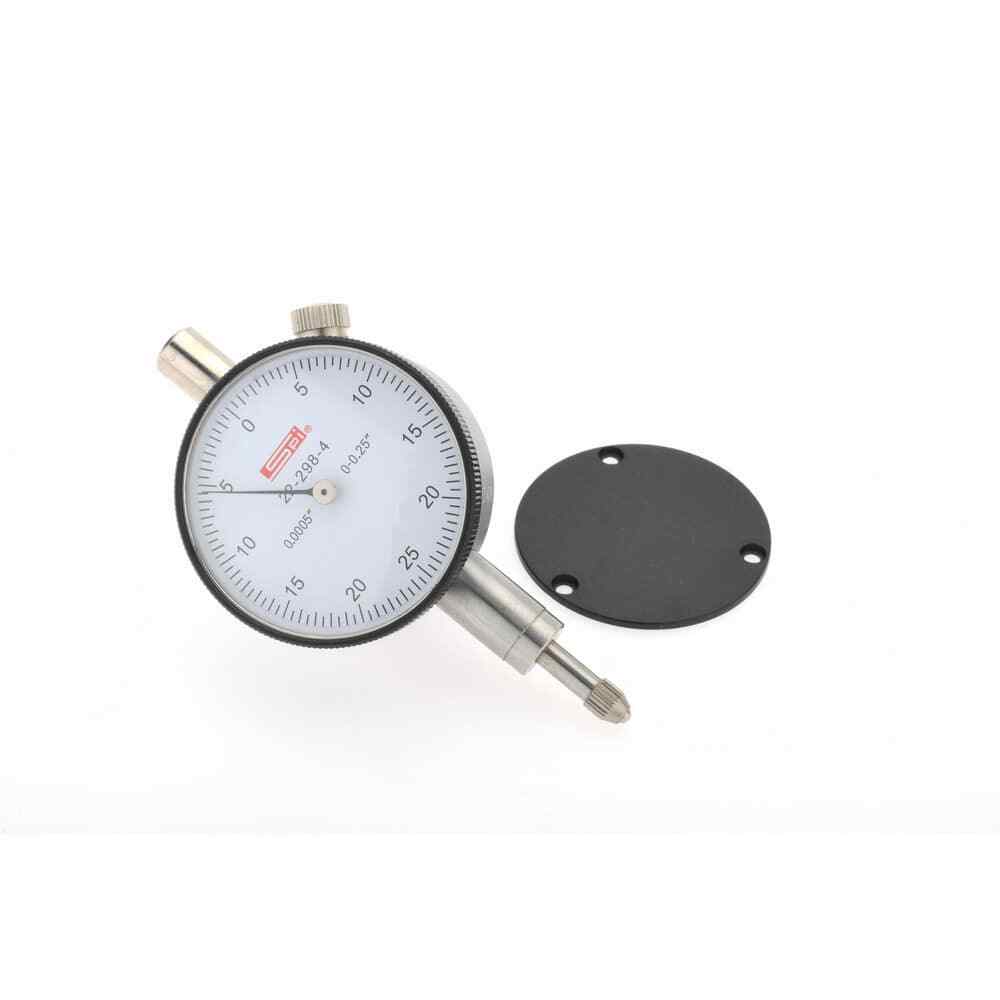

SPI 22-298-4 Deluxe Dial Indicator, 0.25" Max Measurement, 0-25-0 Dial Reading:
$70.33

SPI 1/4" Range, 0-25-0 Dial Reading, 0.0005" Graduation Dial Drop Indicator 1.61" Dial, 0.05" Range per Revolution, 0.0005" Accuracy, Includes NIST Traceability Dial Diameter

0.25" Maximum Measurement

AGD: 1

0-25-0 Dial Reading

0.0005" Graduation

0.05" Range per Revolution

Without Revolution Counter

Stem Diameter: 3/8" (8mm)

Thread Size: #4-48 to read dial

Jeweled bearing

Internal tolerance marker

Lug and flat back included

Short form calibration certificate included

Includes fitted case

---

---

---

SPI 22-298-4 Deluxe Dial Indicator, 0.25" Max Measurement, 0-25-0 Dial Reading

$70.33

---

SPI 22-298-4 Deluxe Dial Indicator with GEM Instruments magnetic indicator h

$50.00

---
