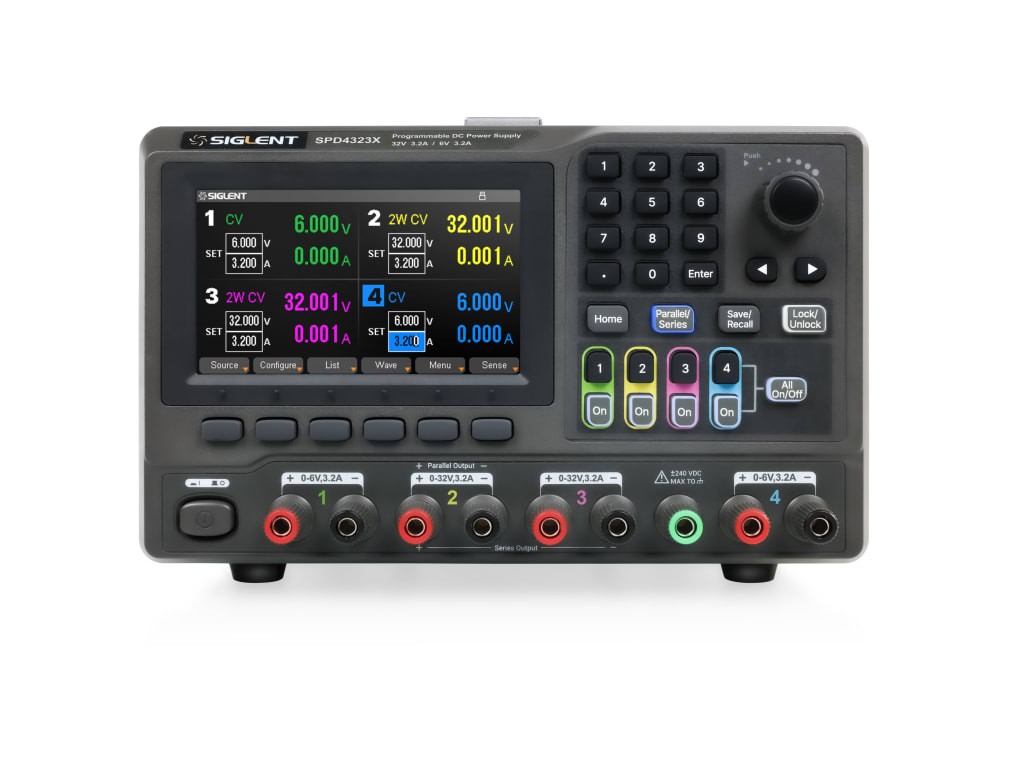

Siglent SPD4323X - Four Channel DC Power Supply (240W):
$782.00

Siglent SPD4323X Total output power: 240WChannel 1: 6V / 3.2AChannel 2: 32V / 3.2AChannel 3: 32V / 3.2AChannel 4: 6V / 3.2A Four Channel DC Power Supply (240W) The SPD4000X series programmable linear DC power supply is equipped with a 4.3-inch TFT-LCD display, friendly human machine interface, and excellent performance indicators. Real-time waveform display provides engineers with an informative user interface.The SPD4000X is equipped with overvoltage protection and overcurrent protection for device protection. Together, these capabilities make the SPD4000X a high precision, low noise, and highly reliable power solution suitable for use from production to research. The instrument is also equipped with LAN/USB communication interface and remote web page control function to meet different application scenarios.The SPD4000X has four sets of independently adjustable output sources, each output source supports constant voltage mode and constant current mode. The CH1/CH4 of the SPD4000X have only one independent output mode, when the CH2/CH3 have three output modes: independent, parallel and series.In the independent mode, the output current and voltage are controlled respectively. In the parallel mode, the current value is twice that of the single channel. In the series mode, the voltage value is twice that of the single channel. When CH2 and CH3 are operating in independent mode, the 4W sense mode can be activated.Several versions available The SPD4000X series consists of three models with up to four independent outputs with rated output voltage values of 32V, 12V, or 30V and the total output power of 240W, 285W or 400W.The chart below outlines several main features of each:SPD4323XSPD4121XSPD4306XOutput channels444Channel 1 rated output6V / 3.2A15V / 1.5A15V / 1.5AChannel 2 rated output32V / 3.2A12V / 10A30V / 6VChannel 3 rated output32V / 3.2A12V / 10A30V / 6VChannel 4 rated output6V / 3.2A15V / 1.5A15V / 1.5ACh2/Ch3 series60V / 3Features:

Four channel DC power supply
Total output power: 240W
Channel 1: 6V / 3.2A
Channel 2: 32V / 3.2A
Channel 3: 32V / 3.2A
Channel 4: 6V / 3.2A
CH2 and CH3 offer series and parallel connections
Clear graphical interface with waveform and timer display modes
5-digit voltage and current display with minimum resolution of 1mV, 1mA
USB and LAN standard; USB-GPIB module available as option
