Sloan EBV-138-A 6 VDC ECOS/G2 Automatic Toilet Flushometer Sensor Assembly:
$69.00

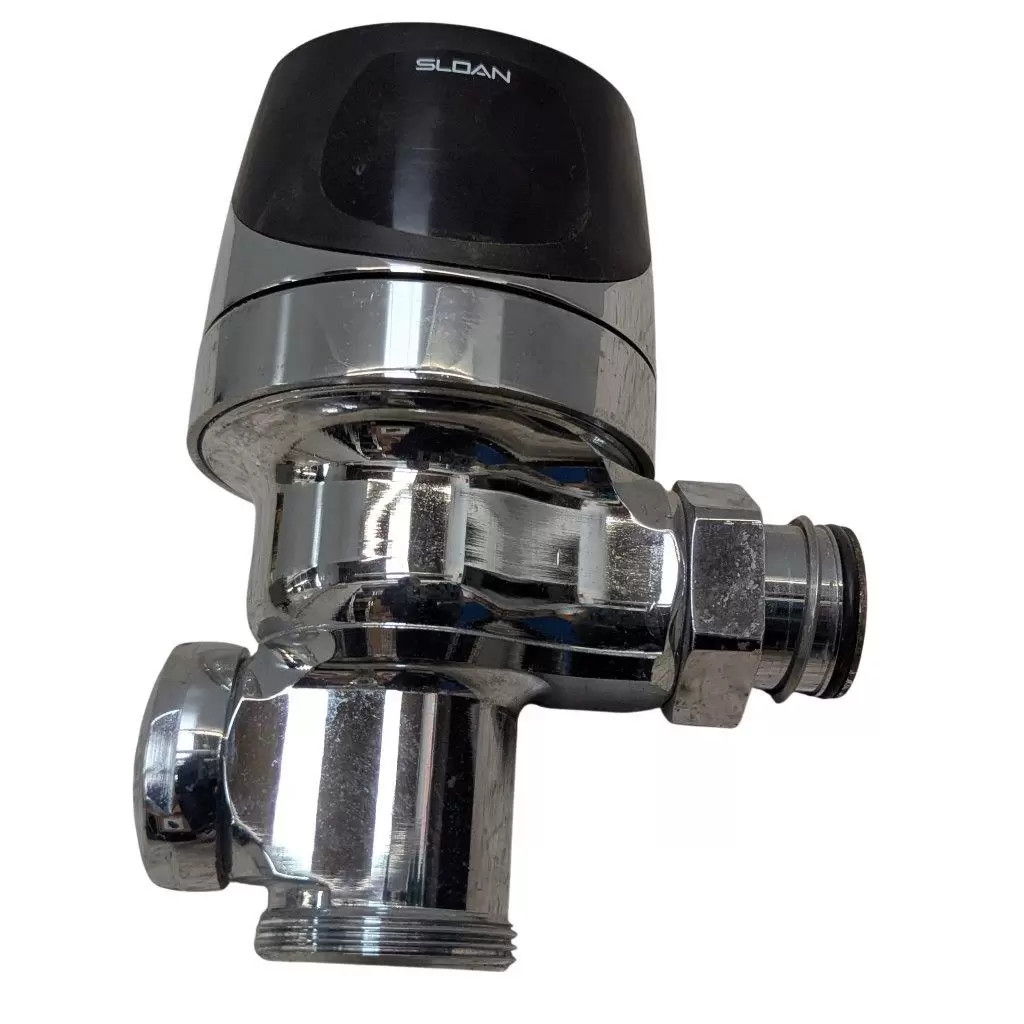

Sloan EBV-138-A 6 VDC ECOS/G2 Automatic Toilet Flushometer Sensor Assembly Sloan EBV-138-A 6 VDC ECOS/G2 Automatic Toilet Flushometer Sensor Assembly

Condition: Used

Product Description

The Sloan EBV-138-A is an electronic cover, locking-ring, sensor, and actuator assembly designed for compatible Sloan ECOS and G2 single-flush water-closet flushometers. The assembly combines an infrared user sensor, manual override button, electronic control components, solenoid-operated valve interface, and chrome-plated exterior housing.

This unit is intended to repair or restore an existing automatic toilet flushometer rather than serve as a complete standalone flush valve. Sloan identifies the EBV-138-A as the single-flush water-closet sensor assembly for 1.28 GPF and 1.6 GPF applications.

Features

Active infrared, hands-free user detection
Automatic flush activation after the user leaves the sensing field
Manual override button on top of the housing
Designed for single-flush toilet or water-closet applications
Compatible with 1.28 GPF and 1.6 GPF configurations
6 VDC operating system
Typically powered by four AA batteries in the complete installation
Self-adjusting infrared sensing system
Chrome-plated commercial fixture finish
Integrated electronic control and sensor housing
Solenoid-operated flush activation
Replaceable service assembly for compatible Sloan flushometers
Suitable for retrofit and complete-valve configurations
Touch-free operation helps reduce contact with restroom fixtures

Technical code0325160PK; earlier literature may show 0325160Product typeElectronic flushometer cover, ring, and sensor assemblyFixture typeWater closet/toiletFlush operationAutomatic single flush with manual overrideSupported flush volumes1.28 GPF and 1.6 GPFElectrical rating6 VDC totalTypical power sourceFour AA batteriesSensor typeActive infraredFinishChrome-plated housing with black sensor windowInstallation typeReplacement or retrofit flushometer assemblyValve actuationElectronic solenoidFlushometer familiesSloan G2, G2 Optima Plus, ECOS, and appropriate RESS retrofit installationsComplete flushometer includedNoBatteries shownNoSecurity wrench shownNo

The complete G2 flushometer platform is designed for approximately 15–100 PSI operating water pressure, although the fixture’s required minimum flowing pressure and the installed flushometer body determine actual system requirements.

Applications

The EBV-138-A is used in commercial and institutional restroom plumbing systems, including:

Office-building restrooms
Schools and universities
Airports and transportation terminals
Hotels and convention centers
Restaurants and entertainment venues
Municipal buildings
Manufacturing and warehouse facilities
Stadiums and arenas
Retail stores and shopping centers
Healthcare-facility public restrooms
Correctional and public-safety facilities
Retrofit projects converting compatible manual flushometers to sensor operation
Maintenance replacement for failed sensor or solenoid assemblies

Cross-Referenced Models and Service PartsDirect model and ordering references

Sloan EBV-138-A
Sloan 0325160
Sloan 0325160PK
Grainger 3EPX6

Related Sloan repair components

EBV-142-A / 0325168 — single-flush cover assembly
EBV-130-A / 0325172 — manual button cover assembly with screws
EBV-132-A / 0325170 — screw set
EBV-131 / 0325169 — sensor lens window cover
EBV-168 / 0325210PL — locking ring
EBV-129-A-C / 3325450 — 1.28/1.6 GPF water-closet control module
EBV-134 / 0325171 — cover rest plate
EBV-145-A / 3325456 — inside cover assembly with solenoid
EBV-136-A / 3325453 — replacement solenoid
EBV-1024-A / 3325031 — 1.28 GPF water-closet diaphragm assembly
EBV-1020-A / 3325001 — 1.6 GPF water-closet diaphragm assembly

These parts may replace individual sections of the EBV-138-A installation, but they are not necessarily complete substitutes for the entire assembly.

Comparable Products

Sloan EBV-149-A / 0325166 — single-flush water-closet cover, ring, and sensor assembly designed with a ring for certain Zurn valve-body retrofit applications
Sloan WES-55-A / 0372055 — dual-flush water-closet cover, ring, and sensor assembly
Sloan EBV-378-A — 1.1 GPF single-flush water-closet assembly
Sloan EBV-139-A / 0325161PK — single-flush urinal sensor assembly; not a direct toilet replacement
Sloan EBV-150-A / 0325167PK — single-flush urinal sensor assembly with Zurn-compatible ring; not a direct water-closet replacement
Sloan EBV-341-A — 0.5 GPF single-flush urinal assembly
Sloan EBV-329-A — 0.25 GPF single-flush urinal assembly
Sloan EBV-324-A — 0.125 GPF single-flush urinal assembly

The EBV-149-A is the closest related assembly when adapting to certain Zurn-style valve bodies; urinal versions differ in control programming and flush-volume configuration and should not be substituted for the EBV-138-A in a toilet installation.

Sloan EBV138A sensor assembly, Sloan 0325160PK, Sloan 0325160, ECOS toilet sensor, G2 Optima Plus flushometer parts, automatic toilet flush valve sensor, 6 VDC flushometer actuator, infrared toilet valve, hands-free commercial toilet flusher, single-flush water-closet module, electronic flush valve repair assembly, Sloan toilet solenoid housing, restroom proximity flush valve, commercial plumbing sensor head, device that automatically flushes a toilet, touchless toilet valve control, Grainger 3EPX6, EBV-129-A-C module, EBV-145-A inside cover, EBV-136-A solenoid.

Common Requests:

Sloan EBV-138-A 6 VDC toilet flushometer sensor replacement assembly
Used Sloan 0325160PK ECOS single-flush water-closet sensor head
Replacement sensor and solenoid assembly for Sloan G2 Optima Plus toilet
Sloan EBV138A automatic flush valve cover ring and infrared sensor
Commercial 1.28 and 1.6 GPF Sloan electronic toilet flushometer repair part
