Socomec 38613010 FUSERBLOC 100A 3-Pole 600V Class J Fusible Disconnect NEW For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Socomec 38613010 FUSERBLOC 100A 3-Pole 600V Class J Fusible Disconnect NEW:
$399.99

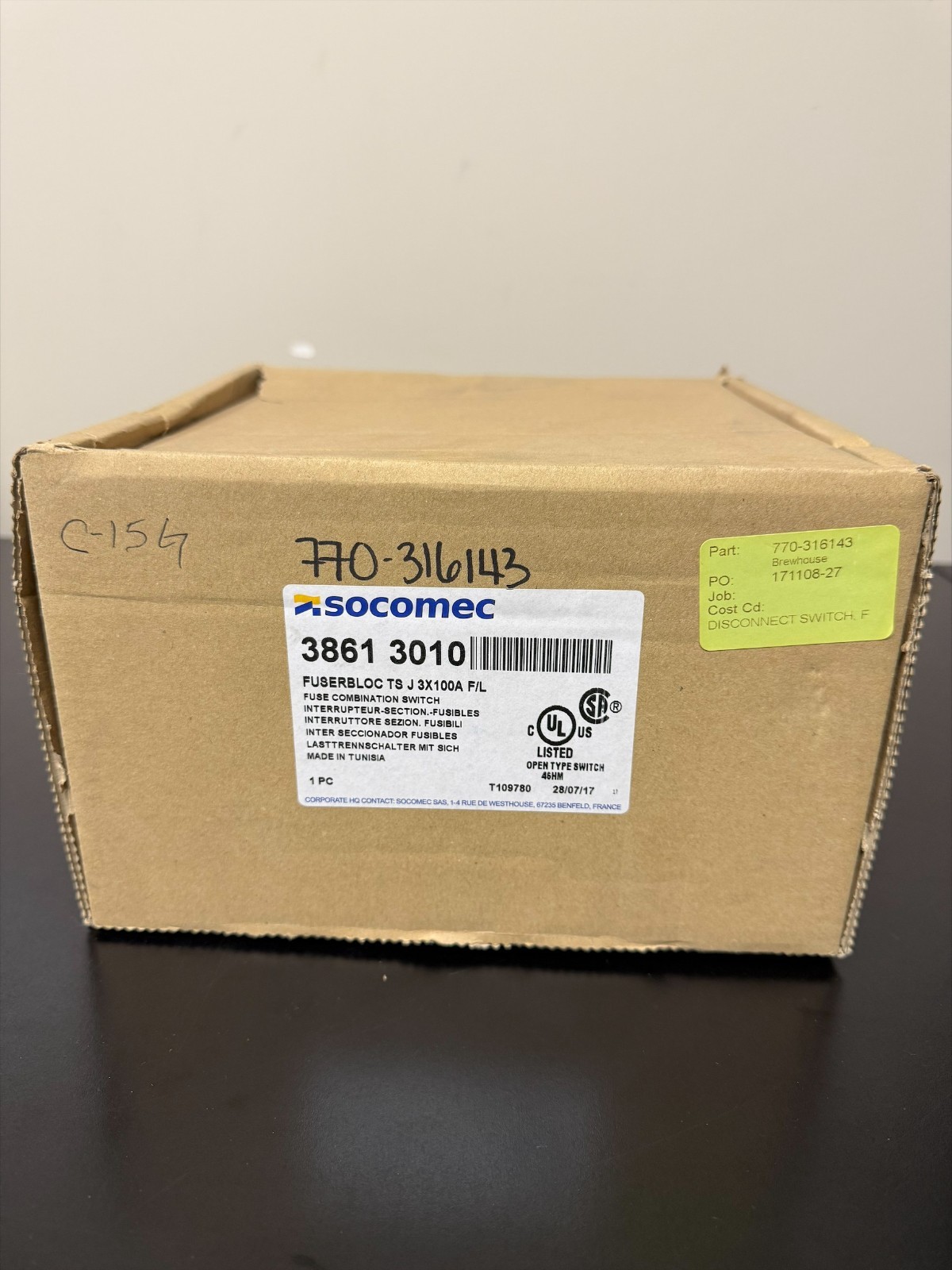

New, unused Socomec FUSERBLOC fuse combination/disconnect switch, part number 38613010, in its original Socomec box.

This is a heavy-duty, manually operated 3-pole fusible disconnect/load-break switch designed for use with Class J fuses. It is rated for 100 amps, up to 600 VAC, and has a 200 kA short-circuit rating at 600 VAC when properly applied.

Specifications

Manufacturer: Socomec
Part Number: 38613010
Series: FUSERBLOC UL
Manufacturer Description: FUSERBLOC TS J 3X100A F/L
Type: Fusible Disconnect / Fuse Combination Switch
Poles: 3
Rated Current: 100 A
Maximum AC Voltage: 600 VAC
DC Rating: Up to 250 VDC
Fuse Type: Class J
Maximum Fuse Rating: 100 A
Short-Circuit Rating: 200 kA at 600 VAC
Operating Type: I-0-Test
Frame Size: 5
Connection Type: Frame Clamp
Wire Capacity: #10 through #2/0 AWG
Front Protection Rating: IP20
UL Standard: UL 98
CSA Standard: CSA C22.2 No. 4
UL File: E201138
Country of Origin: Tunisia
GTIN/EAN: 3596031892709
