Sorensen DCS10-100E, 0-10V, 0-100A Power Supply, Set for 220V, W Local Plug:
$474.99

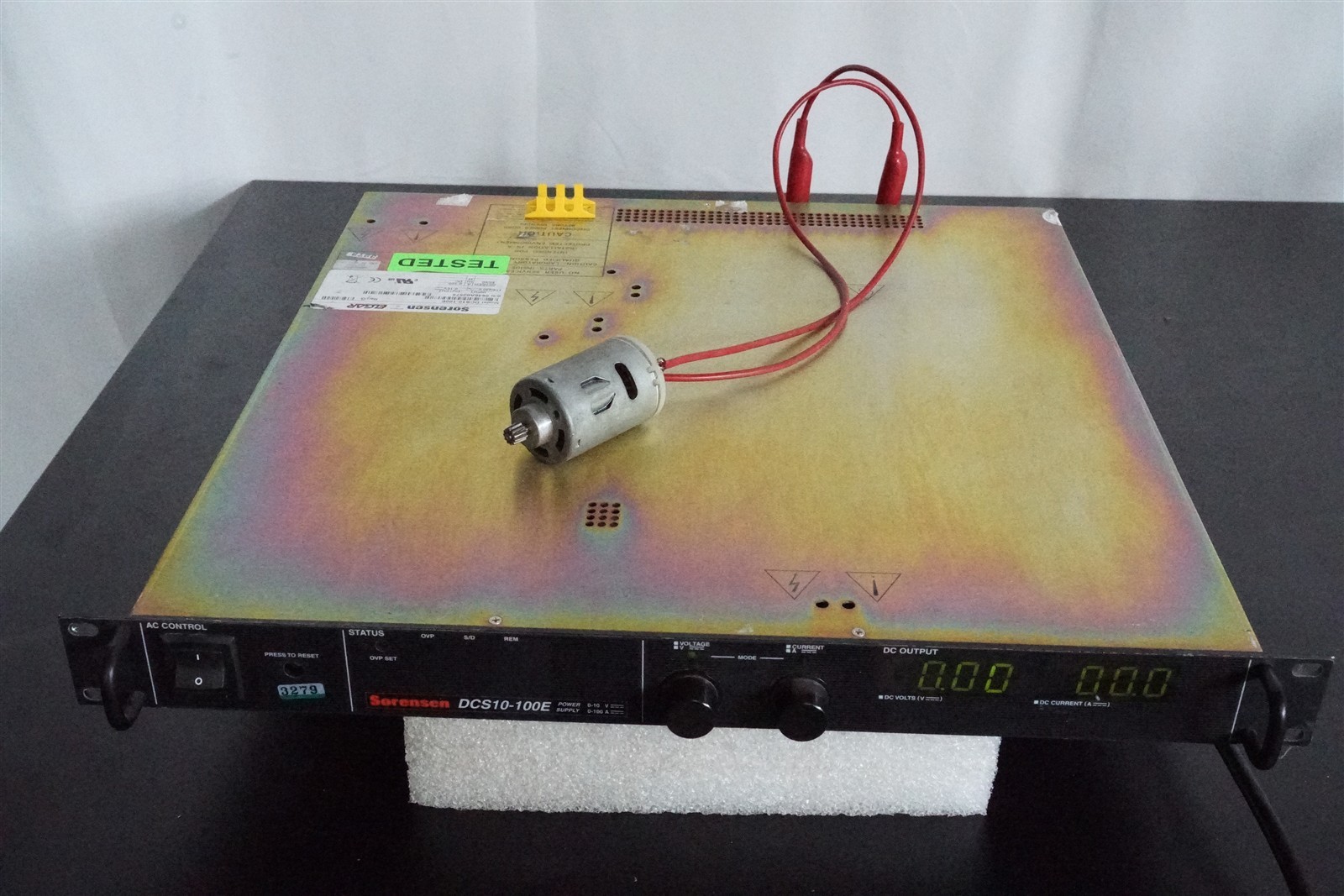

This is a Sorensen DCS10-100E, 0-10V, 0-100A Power Supply, Set for 220V Operation.

What you will get:

Sorensen DCS10-100E, 0-10V, 0-100A Power Supply, Set for 220V Operation
Local J3 25 Pin Connector that allows the power supply to operate in Local Mode

The DB25 Connector (that is configured for local operation) is included. No power cord is included. The power cord shown was used for testing.

This is my item 25W F2 Pallet 3274, 3279-3280, 3323-3328.10 wereavailable at listing time. I have1 more of these that are set up for 117 Volts and while all have been tested, all have the DB25 Connector (that is configured for local operation) included.Check out myother itemswhere I have a lot of otherElectrical Equipmentandaccessories for saleMore Information:
DCS Applications
The Sorensen DCS Series (hereafter DCS Series) is ideally suited for a wide range of applications requiring DC power in a small form factor. Applications range from manufacturing test and burn-in of automotive components, avionics electronics, telecommunications and consumer products to beam steering, process control and laboratory R&D use. The DCS Series is comprised of 1kW, 1.2kW and 3kW programmable power supplies utilizing switchmode technology to achieve high power density in a low profile chassis. The design platform provides a highly reliable power supply for years of constant use. The unique design is available in a variety of maximum voltages from 8V to 600V and maximum currents from 1.7A to 350A with low ripple and noise. This user-friendly platform can be controlled from the front panel with 10-turn potentiometers to adjust voltage, current and OVP settings. LEDs indicate over temperature, remote programming, shutdown and overvoltage protection Remote control options allow full computer control through IEEE-488 (option M9C), LXI Standard Compliant* Ethernet LAN (option M130) or RS-232 (options M9C, M130)Output Ratings:
Output Voltage 0-10V
Output Current0-100A
Output Power 1000WMechanical Specifications
Size: 44mm H x 482.6mm W x 508mm D (1.75” H x 19” W x 20” D)
Weight: 8.2 kg (18 lbs)
OUTPUT CONNECTOR Models DCS-E 8V through DCS 100V
Connector type: Nickel plated copper bus bars.
Approximate dimensions: 1.365" x 0.8" x 0.125"
Distance between positive and negative bus bar centers: 2.2"
Load wiring mounting holes: Two 0.257" diameter holes on 0.5" centers (1/4" hardware)
Two 0.191" diameter holes on 0.4" centers (#10 hardware)
Models DCS-E 150V through DCS 600V Connector type: Six–pin Amp Universal Mate-N-Lok connector
Chassis mounted parts: Housing: Amp part number 1-480705-0
Pins: Amp part number 350547-1
Mating connector parts: Housing: Amp part number 1-480704-0
Socket pins: Amp part number 350550-1
Note: Six Socket pins and one mating connector housing are supplied with each 150V through 600V unit.
INPUT CONNECTOR 2 position terminal block plus safety ground screw. Note: Input power cord not supplied.
