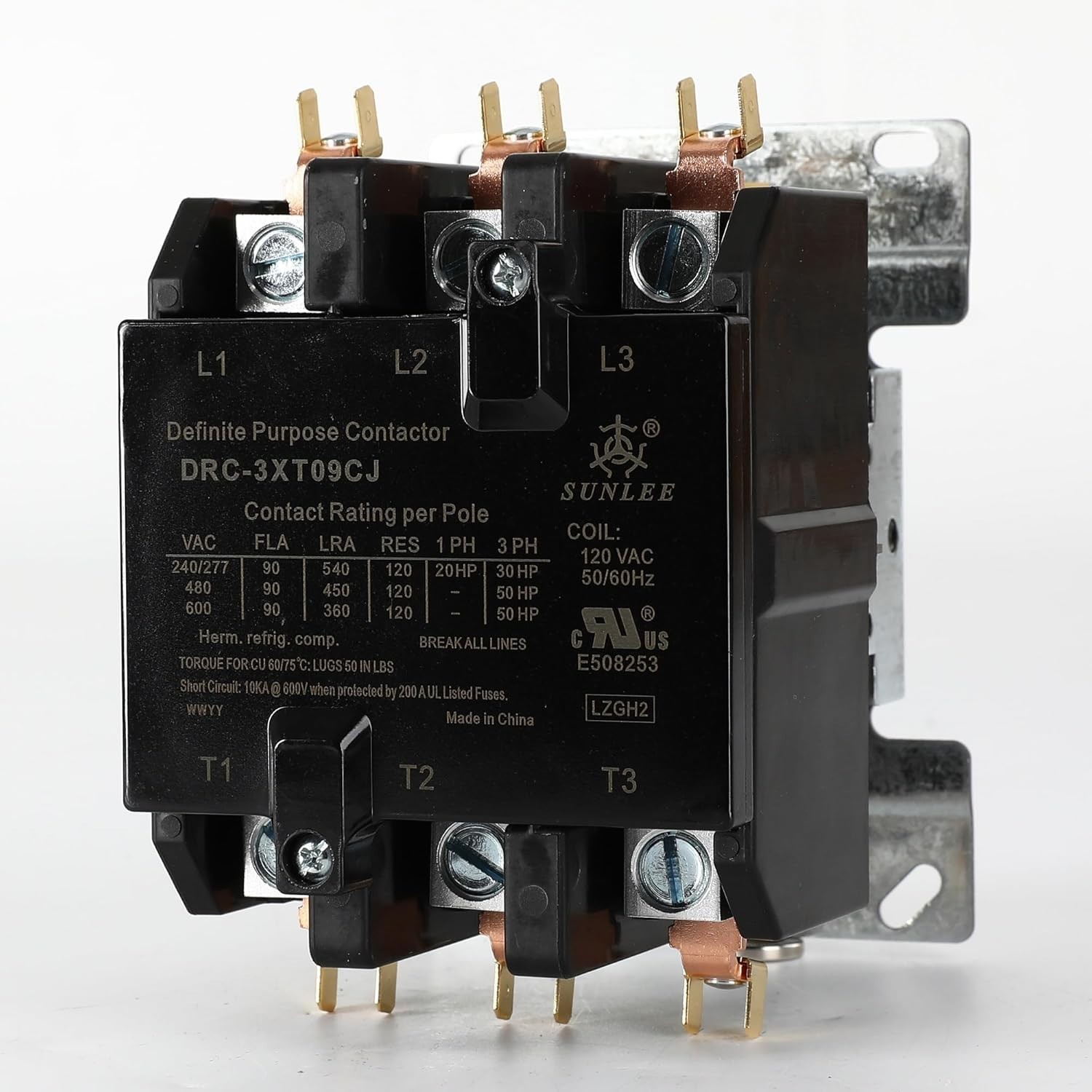

Sunlee Definite Purpose Contactor Open Enclosure 3 Pole 90A 42GE35AJ:
$149.39

3 Pole 90 Amp 120Volt coil
Meet UL 508/UL 60947-4-1
Silver Cadmium Oxide Contacts
Coils have class F insulation

3 Poles 90 Amps 120V coil voltage 50/60HzThicker Silver Contacts, 25% Larger size contacts than competitorsIndustrial-Grade Coil: Upgraded Class F (155°C) insulation system prevents coil burnout even in scorching Texas or Arizona attics and outdoor units.Long Lifespan: 1,000,000 mechanical and 250,000 electrical cycles (UL Tested)Size: 4.99\'\'X3.5\'\'X4.74\'\'
Number of Poles 3 Poles / Normally OpenFull Load Amps (FLA) 90 AmpsResistive Amps (RES) 120 Amps (Res load)Coil voltage 120 VAC, 50/60 HzLocked Rotor Amps (LRA) 540A @ 240V / 450A @ 480V / 360A @ 600VInput Voltage (Line/Load) Up to 600 VAC (Rated for 240V/480V/600V)Contacts Weld-Resistant Silver contactsCertification UL Recognized / A2L Compliant File No: E508253Coil Insulation Class F (155°C / 311°F)Pickup& Drop-out Voltage Range Pick-up ≥90 VAC; Drop-out 24–78 VAC Note: Under/Overvoltage causes coil burnout, chattering, and compressor damageNominal Resistance 19.5 OhmsSCCR 10kA @ 600VAC with 200A UL-listed fusesPremium BMC Housing Exceptional electrical insulation and mechanical resilience, ensuring the contactor can withstand harsh HVAC environments involving heat, shock, and vibration better than generic alternatives.Power terminations AWG 14-1 Box Lugs (with 1/4\" Quick Connect Taps)3-Phase Motor Rating Up to 40 HP @ 600VACReplacement 61491, 42GE35AF, 17936, HCCY3XT09CJ, C25GNF390A, CR353EH3BA1,8910DPA93V02
