TEMCo HC0034 Low Profile Height Hydraulic Cylinder Puck 50 Ton, 0.63" Stroke For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

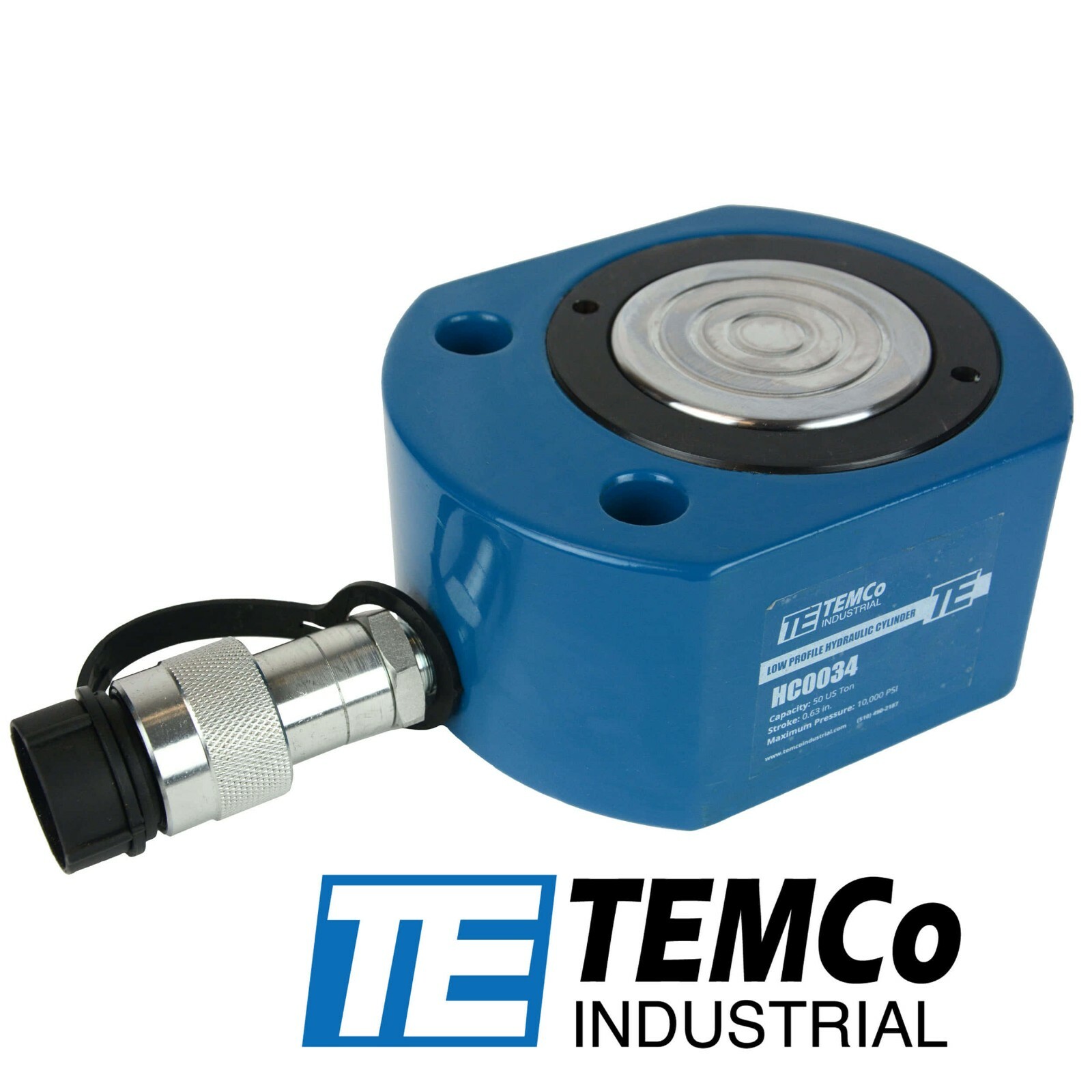

TEMCo HC0034 Low Profile Height Hydraulic Cylinder Puck 50 Ton, 0.63" Stroke:
$186.62

Hydraulic Cylinder - HC0034 Capacity (Tons): 50
Stroke (in.): 0.63"
Maximum Pressure (PSI): 10,000
Type: Telescoping Hydraulic Cylinder
Action: Single acting - Pressure extend, Spring return
Ram Material: Hard black oxide plated high carbon steel
Shell Material: Proprietary Heat-treated Steel
Oil Volume (Cubic in.): 6.163 in3
Effective Area (Square in.):10.974 in2
Closed Height (in.): 2.834"
Extended Height (in.): 3.464"
Weight (lbs): 17.7
Max Pressure: 10,000 PSI
Minimum Operating Temperature: -15°C
Connector Type: 3/8" NPT ISO 14540 quick hydraulic coupler with dust cap
Coupler Specifications
Standard: ISO 14540
Thread (between male poppet end and coupling ring): M30 x 1.5 mm
Thread: 3/8" NPT
Occlusion Type: Poppet
Rated Pressure: 10,000 psi
Rated Flow: 6 GPM
Sealing Material: Nitrile Rubber (Buna-N, NBR)
Interchangeable With:
Enerpac C-604
Parker 3000 Series
Safeway S30 Series
Stucchi IVHP Series
Perfecting T Series
Snap Tite 76 Series
Dnp PVM Series
Faster PVVM Series

Warranty: 5 Year - Click here to Download
Datasheet: Click here to Download
Shop Other Hydraulic Cylinders! About TEMCo Industrial Since 1968, TEMCo Industrial has become a trusted name in industrial power products.
TEMCo products meet the demands of tough industrial applications with dependability and quality. We are proud to be an accredited member of the Better Business Bureau Online Reliability Program. Some of our customers include:
Returns
TEMCo Industrial allows for the return of products for 1 year from the date of purchase. Even if it's opened, broken, or used, we will still accept your return and pay shipping both ways. We will replace the item with an identical item or issue a refund for the value of the item. Proof of original purchase is required.
Shipping And Handling
Domestic: Lower 48 States - FREE.

Local Pickup Available: FREE at our Fremont CA location, Monday through Friday 9:00 A.M. to 5:00 P.M. Please contact us ahead to ensure that your item is in stock at our location before pick-up.

International: Calculated by location. If shipping for your country is not listed, contact us for details.

Orders are usually processed and shipped within 24 to 48 hours of receipt of your payment. Please provide us with a physical shipping address (failing to do so may delay your order). We may ship an order by a different courier at our discretion. If you need to receive an order within a guaranteed time frame, please contact us for rush options and expedited shipping.

Import duties, taxes, and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding/buying. Furthermore, we will not mark merchandise values below value or mark items as "Gifts".

Combined shipping for International orders: Please add the items you want to your shopping cart. After you have added all the items to your shopping cart, you can request a total from us. On the shopping cart page, there is an option to "request total from seller". If this option is not available, then you will need to empty your shopping cart and commit to buying each item separately. Then, you will be able to send us a message regarding combined shipping.
Payment
TEMCo Industrial accepts the following payment methods: PayPal, Visa, MasterCard, AMEX, Discover.

We charge 9.75% sales tax for all orders shipping within California. Tax exemption is available if we are provided with a valid California resale certificate.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov

TEMCo HC0034 Low Profile Height Hydraulic Cylinder Puck 50 Ton, 0.63" Stroke
$186.62

Seal Kit for TEMCo Hydraulic Cylinder HC0034
$9.95
