TOAUTO DRO 3 Axis Digital Readout Display+3pc Glass Linear Scale for Mill Lathe For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

TOAUTO DRO 3 Axis Digital Readout Display+3pc Glass Linear Scale for Mill Lathe:
$231.23

TOAUTO DRO 3 Axis Digital Readout Display with 3pc Glass Linear Scale 5 Micron Accuracy for CNC Mill Lathe Machine Application This kind of DRO is commonly fitted to machines, especially for metal working — lathes, cylindrical grinders, milling machines, surface grinders, boring mills and other machine tools — to allow the operator to work faster and with greater accuracy. Specification :Supply Voltage range : AC 80V~260V; 50~60Hz, US Plug availablePower consumption: 15VAOperating temperature: 0~45 degree centigradeStorage temperature: -30~70 degree centigradeRelative humidity: Less than 90%Readout allowable input signal: TTL square waveAllowable input signal frequebcy: Less than 5M HzMax resolution of digital display length: 5µm (0.005mm/0.0002")Min resolution of digital display angle :0.0001/pulseDigital Readout Dimensions:295*170*65mm (11.6"*6.7"*2.56")Linear Scale Interface: DB9Display Advantage: Having a good capacity of resisting disturbance,durable keyboard,easy to changeSDM 200 sets memory, power-off memory for 10years , circumference drilling, oblique line drilling, 1/2 centeringPCD functionR functionSmooth R functionThe simple R functionChambering (applicable to: Milling machine,Boring machine)Tool conpensation (for lathe)Machining of oblique planeAlso a calculator is equipped for more convenient usage3, Benefit : (1) Digital display to eliminate backlash and improve precision
(2) Advanced trigonometric calculation so to accomplish a perfect project
(3) 11.6”wide display to offer excellent long-distance viewing
(4) Digital readout kit can avoid wasting weeks to check machine precision
(5) Lifetime free technical support, 2Years warranty, 30-day return
(6) 1pc 3Axis digital readout with scales , 5µm (0.0002") resolution (at 45ºC) Package Included :

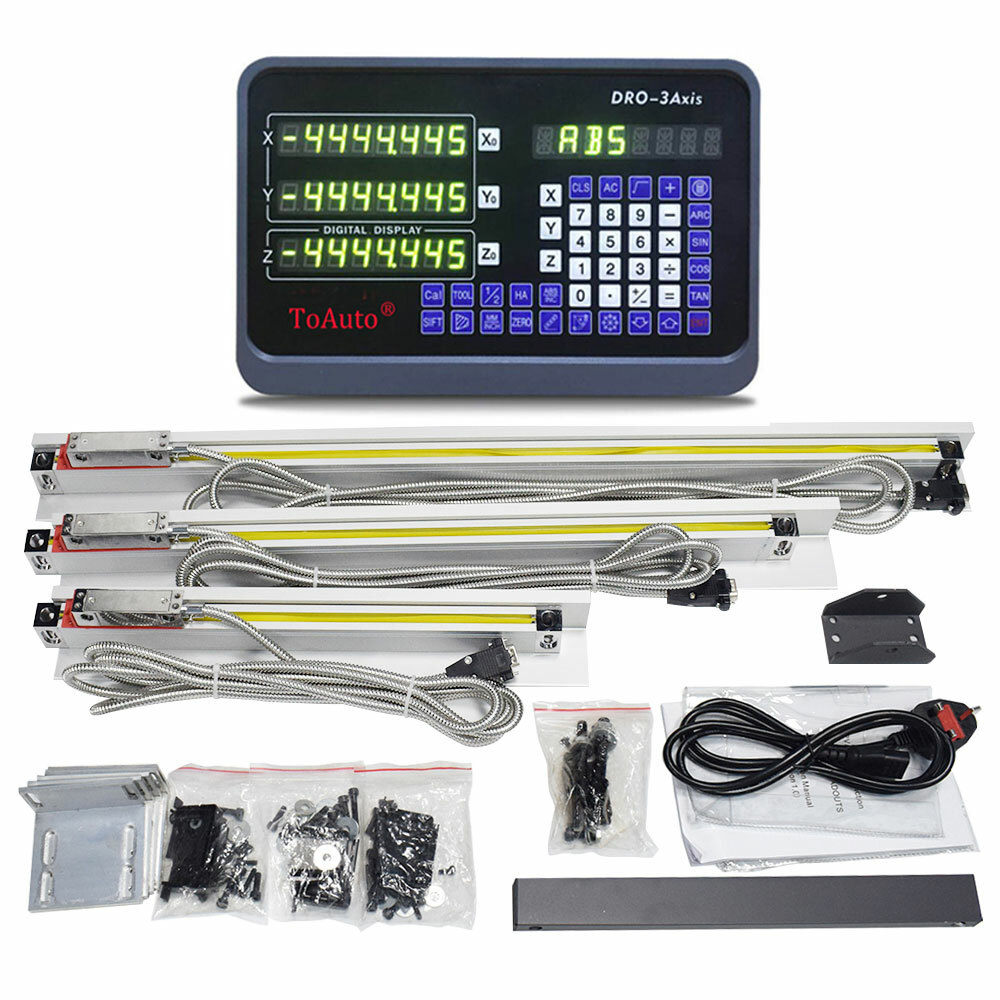

3Axis Digital Readout Dro+3PCS linear scale Kit

Product Gallery Questions & Answers :Q: Are the listed dimensions "Travel Length" or "Total Length"?A: All lengths listed in titles and options are Travel Length (Effective Measuring Range). The Total Physical Length of the scale is consistently 140mm longer than the specified Travel Length.Q: If I need a scale like 255mm, can you provide it?A: A standard 250mm scale is usually sufficient. Our scales feature a safety travel buffer (up to 20mm), meaning a 250mm scale can measure up to approximately 270mm.Q: Do you accept custom orders (e.g., specific sizes like 250mm x 400mm x 550mm)?A: Yes. We provide customized kits. Please contact our customer service for a personalized quote.Q: How do I choose the right scale for my machine?A: You should match the Travel Length of the scales to the maximum travel range of your machine's X, Y, or Z axis. Always ensure your machine has enough physical clearance to accommodate the Total Length (Travel + 140mm).Q: Can I shorten the linear scale to fit my milling machine?A: Yes, the scale can be trimmed, but this requires precision. If the scale is too long for your application, please contact our customer service to obtain a step-by-step video guide on how to properly shorten it without damaging the internal glass components.Q: Do you have an Installation Manual?A: Yes, please contact customer service to get the installation video (the file size is too large to upload directly).
