TUF-2000B Ultrasonic Flowmeter Wall Mounted Digital Host Water Flow Meter Set US:
$192.04

Description
This is a new generation ultrasonic flow meter which is made of our patented technology.TUF-2000B ultrasonic flow meters utilize the transit-time principle to measure the velocity of relatively clean liquids in full pipes. It is accurate, durable, and easy to install. It is widely applied in water supply, heating, water conservancy, chemical, pharmaceutical, energy, and other industries.
Key Features
Wide Range of Liquids: It can measure any liquid as long as it is relatively clear, such as water, seawater, sewage, oil, alcohol, etc.
Bi-directional Measurement: With a dedicated bi-directional metering chip as the core, both the forward and the reverse can be measured without adjusting the machine.
Three Ways to Measure: There are three measuring methods. They are wall mounting, insertion and inline.You can choose any way of measurement according to the environment.
High Accuracy: We use high-quality chips. It is stable and more accurate on flow monitoring.
High Accuracy: We use high-quality chips. It is stable and more accurate on flow monitoring.
Details
High Definition LCD Display: The HD display can be displayed backlit for easy and intuitive reading.
External Sensor Probe: The probe has a built-in magnet that can be directly attached to the pipe. It is also equipped with an anti-interference shielding wire for more accurate measurement.
Application
It is widely used in water supply, heating, water conservancy, chemical, pharmaceutical, energy, and other industries.
Specifications
Accuracy: ≤1%
Host Size(LxWxH): Range: 0~±10m/s
Pipe Size: DN50-DN700MM
Temperature: -30~90℃
Measurable Pipe Material: Steel, Stainless Steel, Copper, PVC, Aluminum, Glass Steel, etc.
Signal Output:
1 way 4-20mA Output
1 way OCT Pulse Output
1 way Relay Output
Signal Input:
3 Way 4-20mA Input
Interface: RS485, support MODBUS
Power supply: DC8~36V or AC85~264V

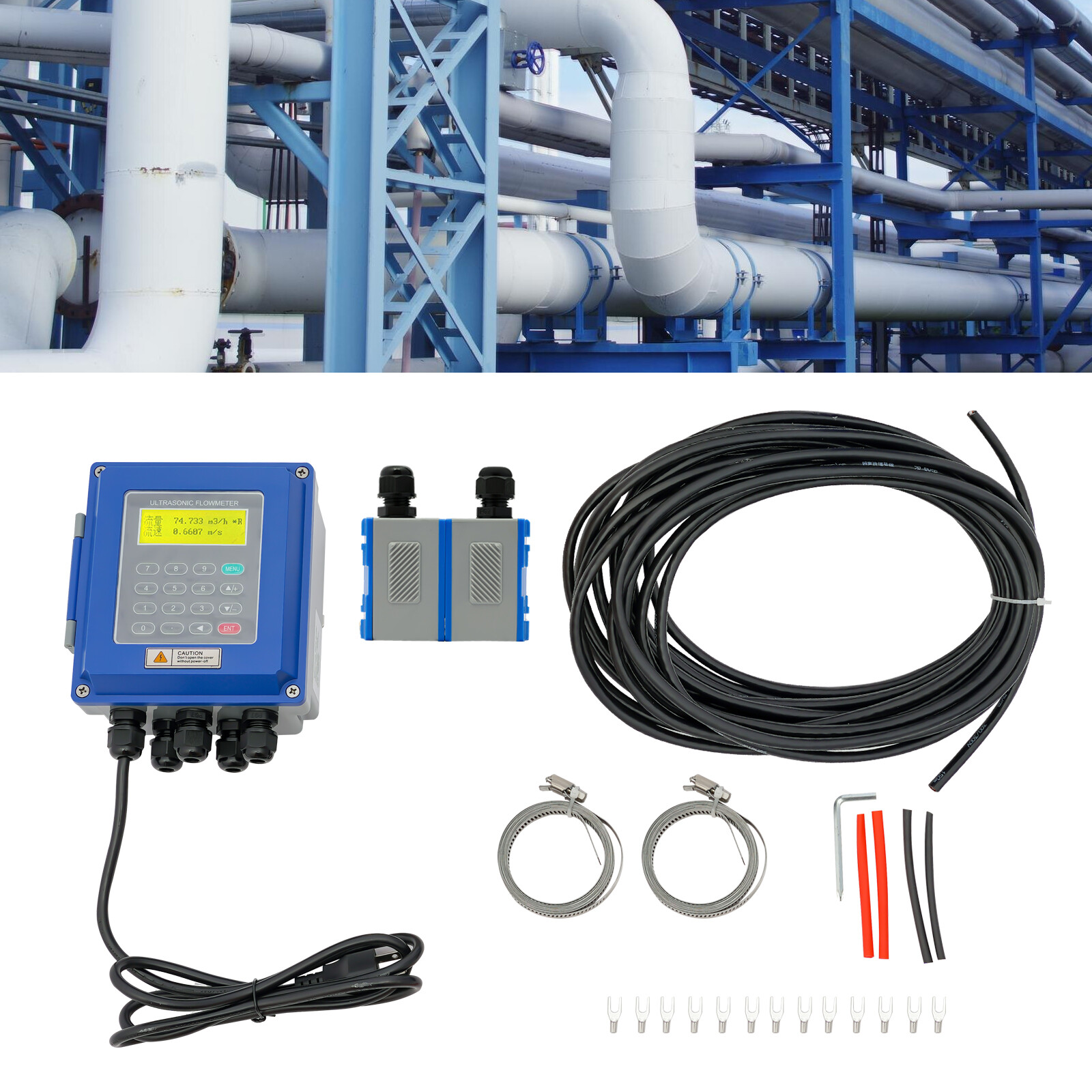

Package Included
TUF-2000B Host x1
Steel Belts x2
TM-1 Ultrasonic Transducers x2
5 Meters Flow Signal Cables x2
All Accessories for Assembly
English User Manual x1
Notes
1. To avoid signal reduction and improve anti-jamming ability, it is better to use the customized signal cable from the flow meter manufacturer.
2. The length of cables between converter and transducer should be as short as possible, cannot exceed 200m.
3. The temperature and humidity of the working environment should be in the range of technical specifications. Avoid direct sunlight on LCD.
4. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
