Tegara BT40 M16 45 Degree Pull Stud Retention Knob Fits Fadal CNC New [ For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

Tegara BT40 M16 45 Degree Pull Stud Retention Knob Fits Fadal CNC New [:
$11.95

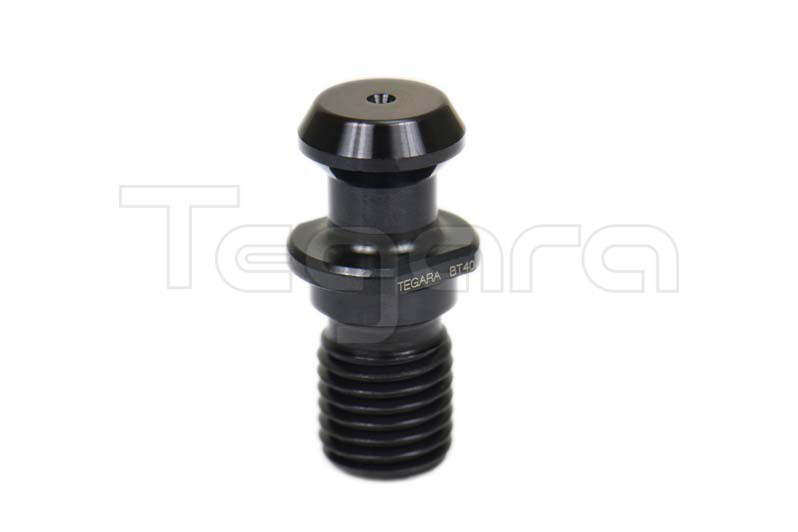

Tegara BT40 M16 45 Degree Pull Stud Retention Knob Fits Fadal CNC New

Made in Taiwan!

Free Shipping!

Founded in 1978, Shars Tool Company has been serving the industrial community and machine shops in the USA for over 30 years.We carry highquality Pull Stud.

Product Code202-7216Product description

Taper: BT 40
A: 45
D1 Knob: 0.740"
D2 Neck: 0.490"
D3 Hole: N/A
D4 Pilot: 0.669"
L: 1.736"
L1: 0.552"
L2 Shou to End: 0.752"
Knob Socket: RKW40

Product application

Product features

Sharstools are manufacturedby anISO 9001certified manufacturer with 60 plus years of hands-on experience inthe CNC machining industry. Shars tools manufacturer is also an OEM that produces highest quality European brands.The manufacture really pays attentionto the details ontheretention knob, as shown here on the flange,the straight neck, and the pilot. Each knob goes through a magnetic particle test after heat treatingto prevent crack line’s and after this testing procedure, each knob will be precision ground on all critical contact surfaces, including the pilot underneaththe flange area. The pilot will ensure the retention knob body makes a better contact with the tool holder next to the threads which will reduce the vibrationand minimize TIR on the overall system (tools holder + retention knob).

Other low price import pull stud are made from45 mediumcarbonsteel, butSharspull stud is made from finealloy steel, 20CrMnTiwith heat treatment to HRC 56-58,which is equal toUSA material 8620,betterperformance than45 mediumcarbonsteel. The price for 20CrMnTi is double of45 mediumcarbonsteel.Aftertheforging process, the raw material canmaintain the mechanical performance and flow line.This willensure thelife and stability of the material, after the materialhas been run through several heat treatment processes.

Using high quality alloy steel 20CrMnTi forging, the material is metallographic dense, uniform and stable.Aftercarburizing, the outside ofmaterial ishardened,andthe inside of material is still soft and hasenoughtoughness. Therefore, Material has higherwear

Other low price import pull stud’s are machined by a turning process, butSharspull stud’s are fully ground byCNC on all critical surfaces including a pilotunder the flange of retention knob for full contact between toolholder's taper end and retention knob. Precision grinding pull stubs have higher surface finishand dimensionaccuracy.The fitting accuracy is obviously higher than that of machine pull stubs, effectively reduces the error ofmachine tool andcooperation, so as to improve the accuracy and stability of the connection andimproves theprecision of the machine tools and lengthens the service life.

Precision finished on the bottom of the flange to improve fitting with the bottom nose of the taper on the toolholder

For details of the processing quality of ground pull studs surface finish, please see the following picturewhichshows the pull stub by half black oxide finish.

High quality black oxide finish can ensure long pull stub life and a non-rusting surface. The following pictureshows the pull stub after black oxide finish

Magnetic particle inspection is used for crack detection to avoid accidents from occurring because of micro defects.
Retention knobs are magnetic particle tested before left manufacturer. The following picture shows Crack detector.

FitsonFits Kira, OKK, Roku-Roku, Toshiba, Fanuc RoboDrill, DMG

We also have retention knob for Fadal, Mazak, Hurco and other mill, please contact us 1-630-443-3244 orvisit our store:
